Front Driveshaft Dynamic Damper Replacement

Front Driveshaft Dynamic Damper Replacement

1. Remove the inboard joint. Driveshaft Disassembly

2. Remove the dynamic damper band. Driveshaft Disassembly

3. Remove the dynamic damper (A).

4. Install the new dynamic damper.
NOTE: Be careful not to swap the dynamic dampers. Check the type of dynamic damper by its shape.

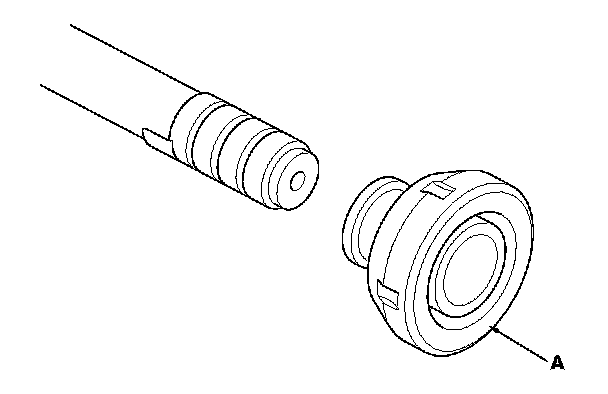

Left driveshaft

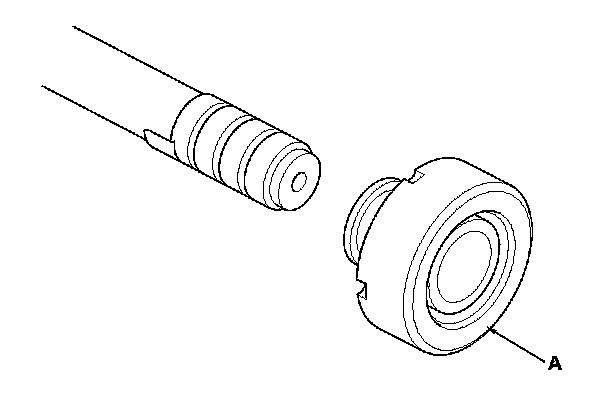

Right driveshaft





5. Adjust the specified distance (A) between the outboard joint side and the dynamic damper edge.
NOTE: Check the type of dynamic damper by its shape.

6. Install the dynamic damper band. Driveshaft Reassembly

7. Install the inboard joint. Driveshaft Reassembly

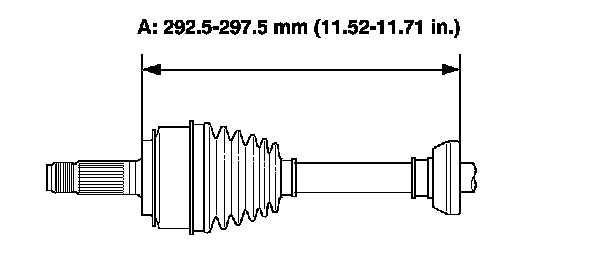

Left driveshaft

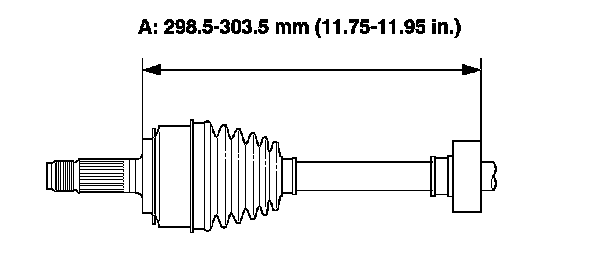

Right driveshaft
