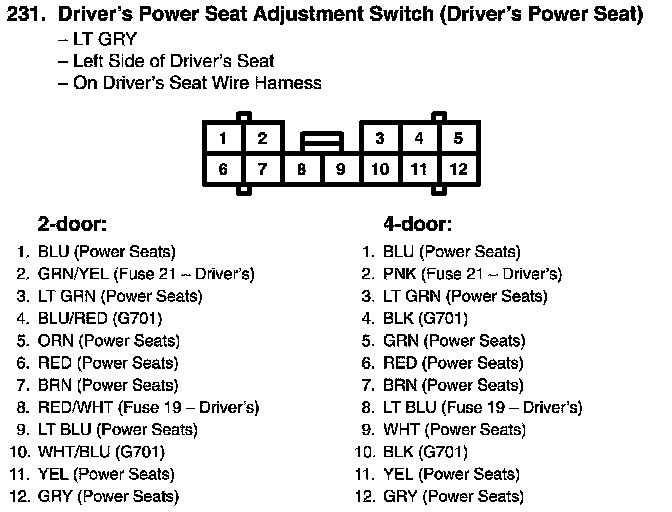

View 231 Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
View 231 Driver's Power Seat Adjustment Switch Connector View (Driver's Power Seat)
