Glove Compartment Lock: Service and Repair

Glove Box Striker Replacement

SRS components are located in this area. Review the SRS component locations, 2-door, SRS Component Location Index (2-Door) 4-door SRS Component Location Index (4-Door) and the precautions and procedures Technician Safety Information before doing repairs or service.

NOTE: Take care not to scratch the dashboard and its related parts.

1. Disconnect the glove box damper from the pivot on the glove box. Service and Repair

2. While holding the glove box, release the glove box stop on each side from the dashboard by pushing them inside. Service and Repair

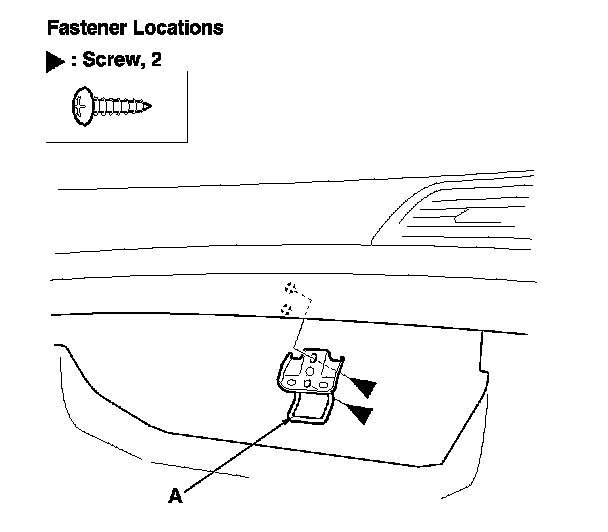

3. Remove the screws, then remove the glove box striker (A).

4. Install the striker in the reverse order of removal.
