Radio, Stereo, and Compact Disc: Description and Operation
Audio System Description
Overview
The audio unit acts as the processor for all audio functions. You can select the audio functions from the front panel, the audio remote (on the steering wheel), or by using the navigation voice control system. The audio display provides the current front and rear audio status. For vehicles with the navigation option, additional audio information is available by touching the audio button. (See the owner's manual for more details.)
The XM receiver and audio disc changer pass their signals is to the audio unit. In addition, they communicate with the audio unit via the GA-Net bus. Any open connections or short in the wiring in the GA-Net bus circuit will cause audio (including the audio accessories) and navigation functions to appear inoperative.
With the premium sound system, an audio amplifier unit powers the speakers, otherwise the speakers are powered directly by the audio unit.
The premium sound audio unit has a built-in EEPROM (electrically erasable programmable read-only memory). This memory holds the audio preset data (AM/FM radio frequency, sound settings) even when the battery power is removed.

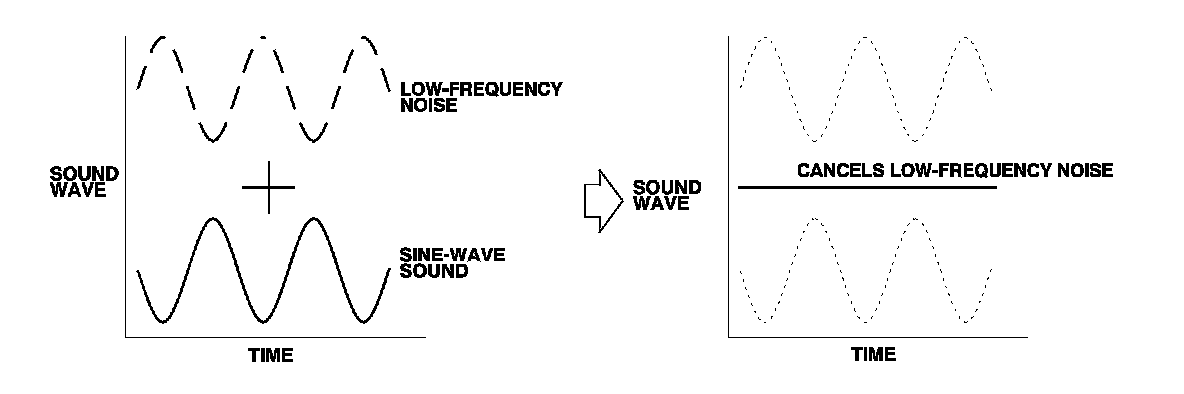

The system includes an active noise cancellation (ANC) system to cancel some of the vehicle noise. It uses a sine-wave-sound output to cancel low frequency noise. Two microphones detect the low frequency sound, and the system outputs a canceling sound through the audio speakers.
Speed-sensitive Volume Compensation (SVC)
The audio system is equipped with speed-sensitive volume compensation (SVC). The audio unit receives the vehicle speed pulse (VSP) from the ECM/PCM. The system processes the speed input and increases the audio system volume level as the vehicle speed increases to compensate for the various interior noises that occur at higher speeds. When the vehicle slows down, the volume returns to its normal level. The SVC has four settings: SVC OFF, LOW, MID and HIGH that can be adjusted using the audio unit. The SVC comes from the factory with MID set as the default (see the owner's manual for more information).
Telematics Muting Logic

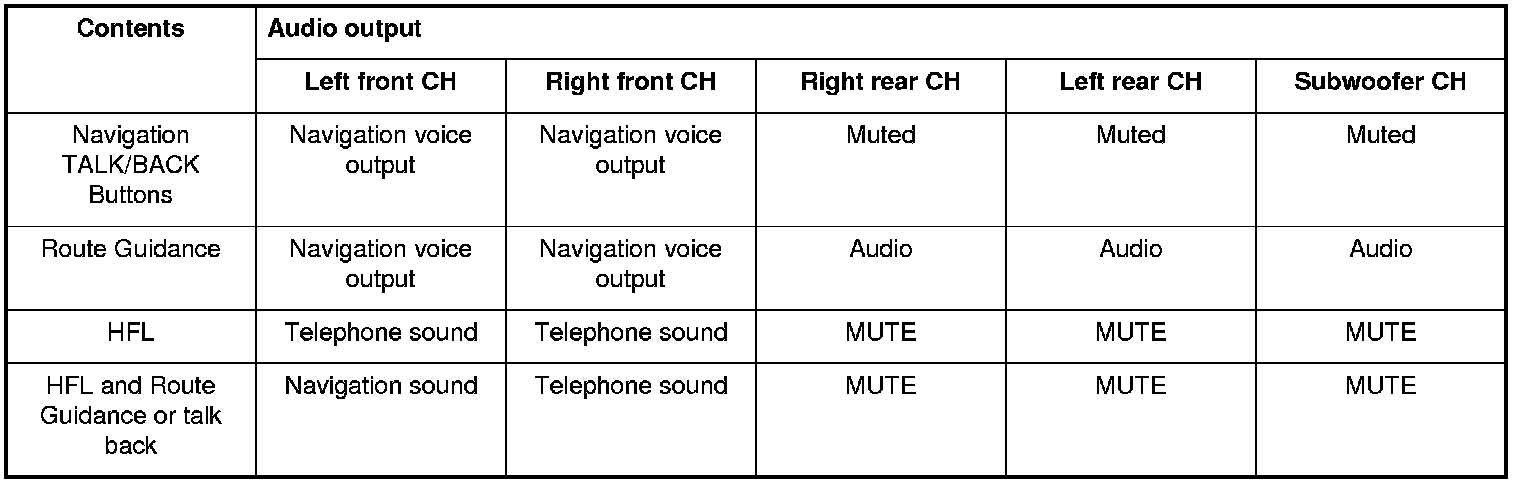

The navigation system allows voice control for the audio, the XM, and the CD player. The navigation system uses the GA-Net bus to communicate the voice control commands to the audio unit. When using the navigation TALK/BACK button, the audio is muted on all speakers and you hear navigation sound on the front channels. When using the navigation or route guidance (RG), the front speakers provides the navigation sound and the rear speakers continue to play the audio. For more information, see the navigation and HFL sections. The outline of the muting logic is shown in this table.

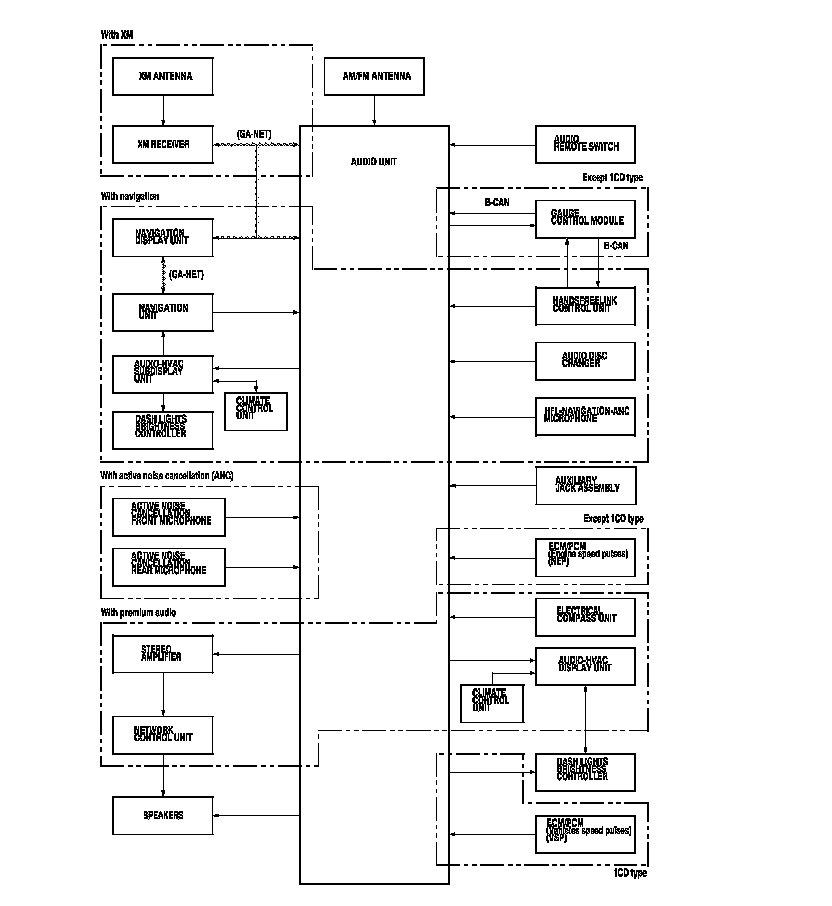

System Diagram
NOTE: All items may not apply to this vehicle. See the owner's manual for more information.

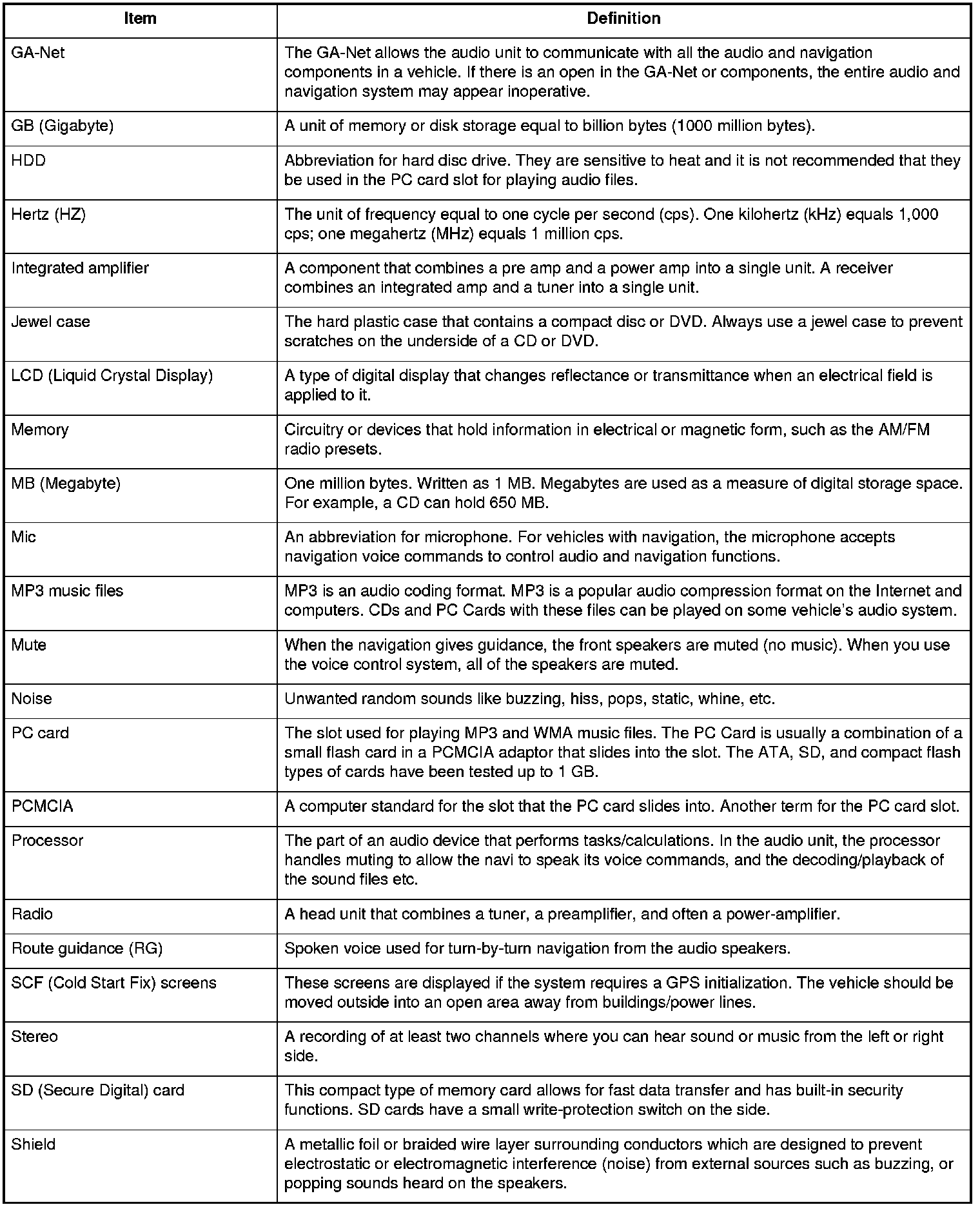

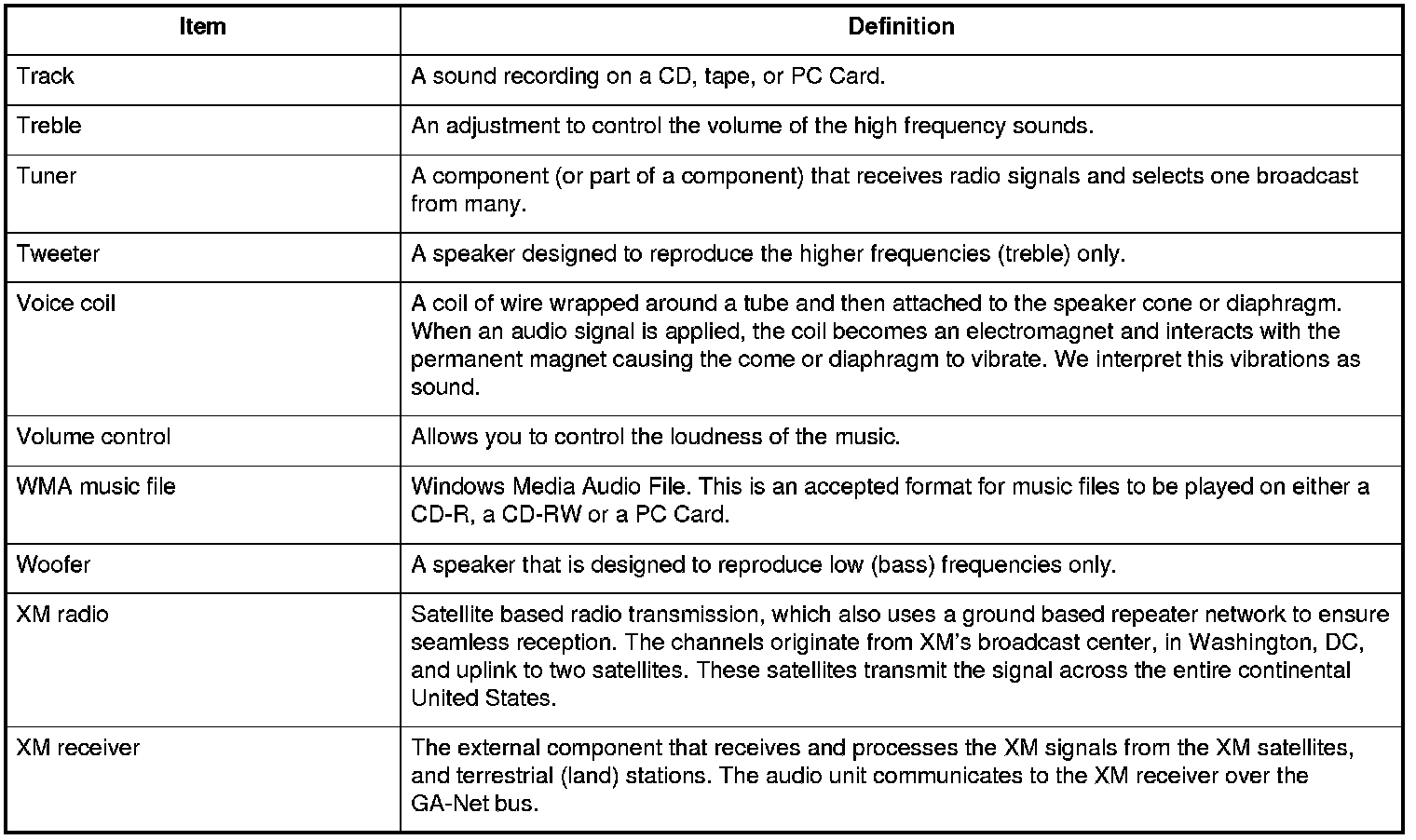

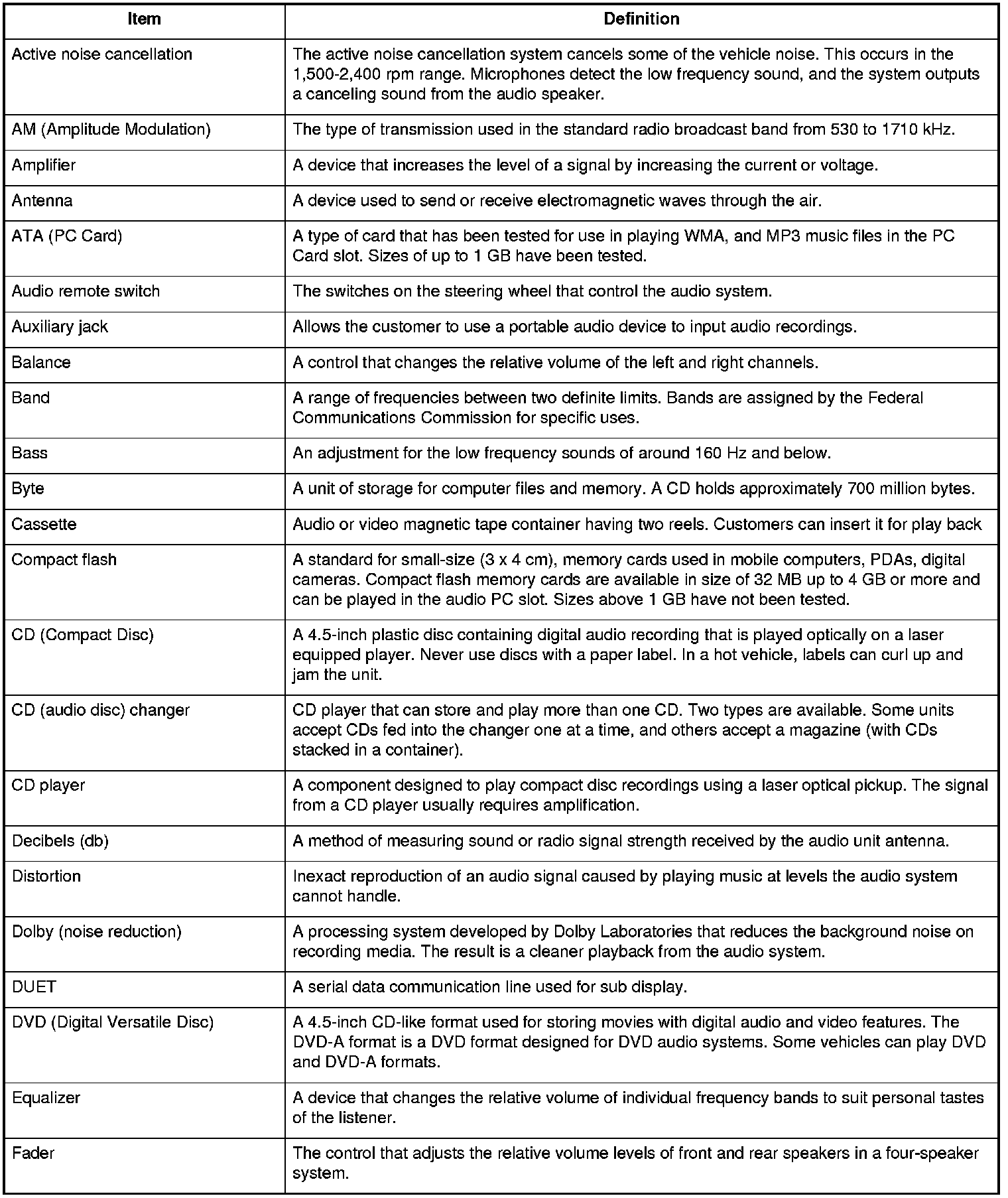

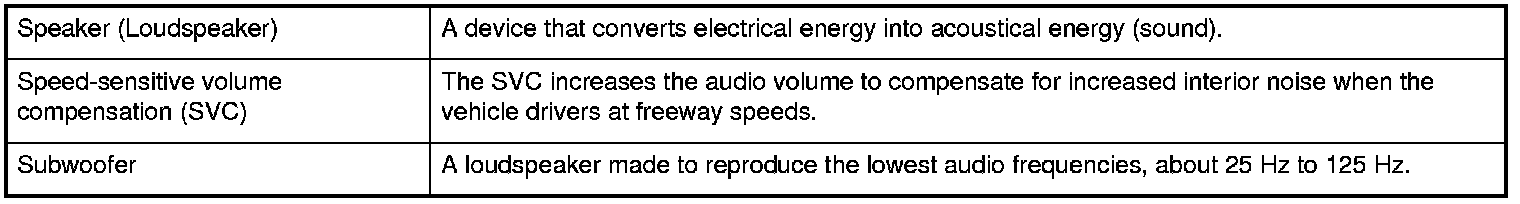

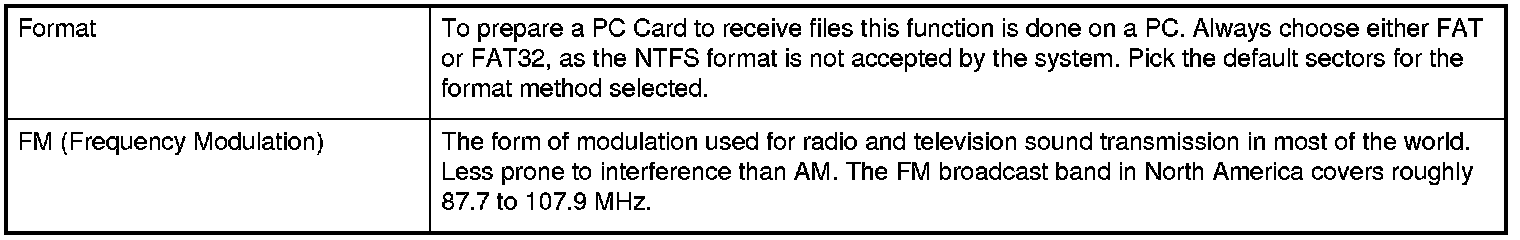

Audio Glossary
Audio Glossary
Audio Glossary
Audio Unit Connector for Inputs and Outputs

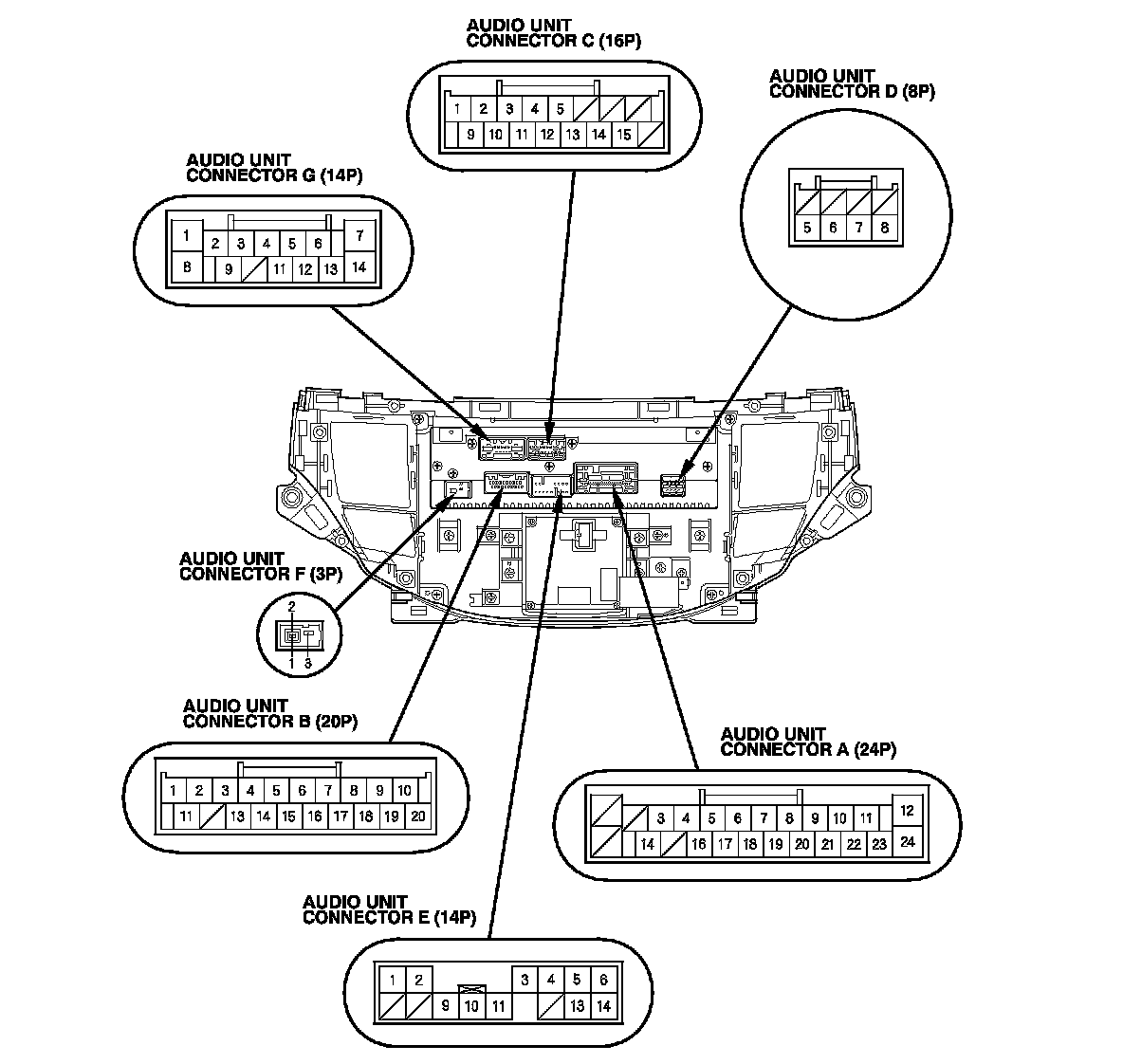

With Premium Audio System (With Navigation System)

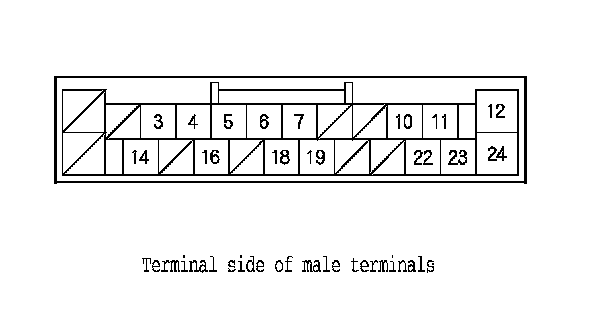

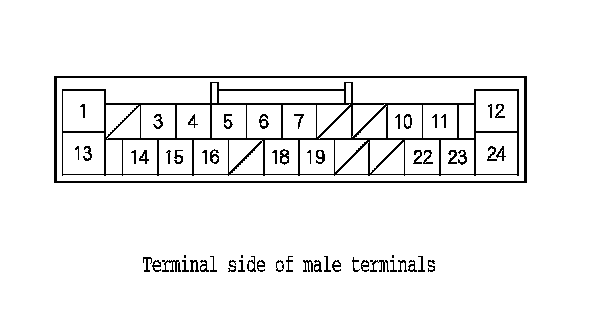

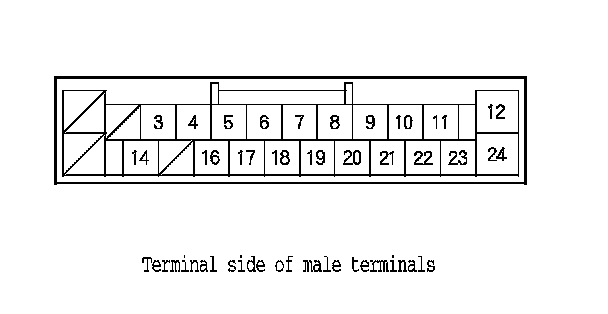

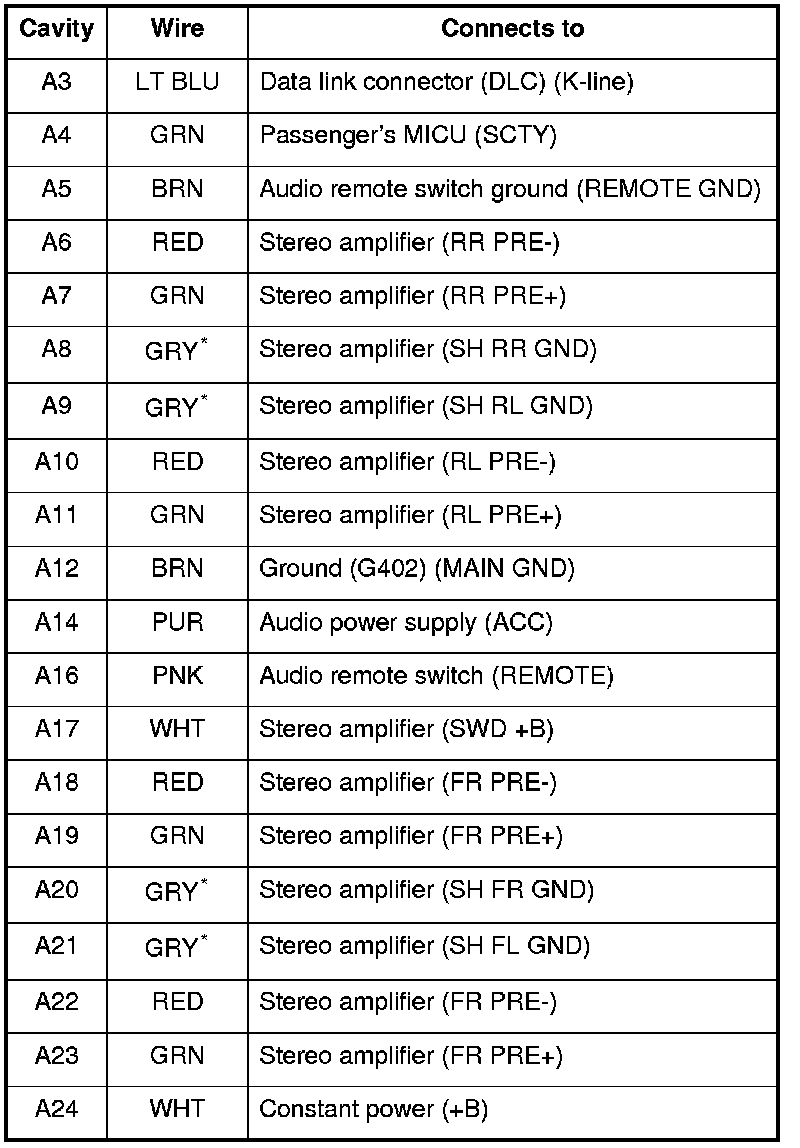

AUDIO UNIT CONNECTOR A (24P)

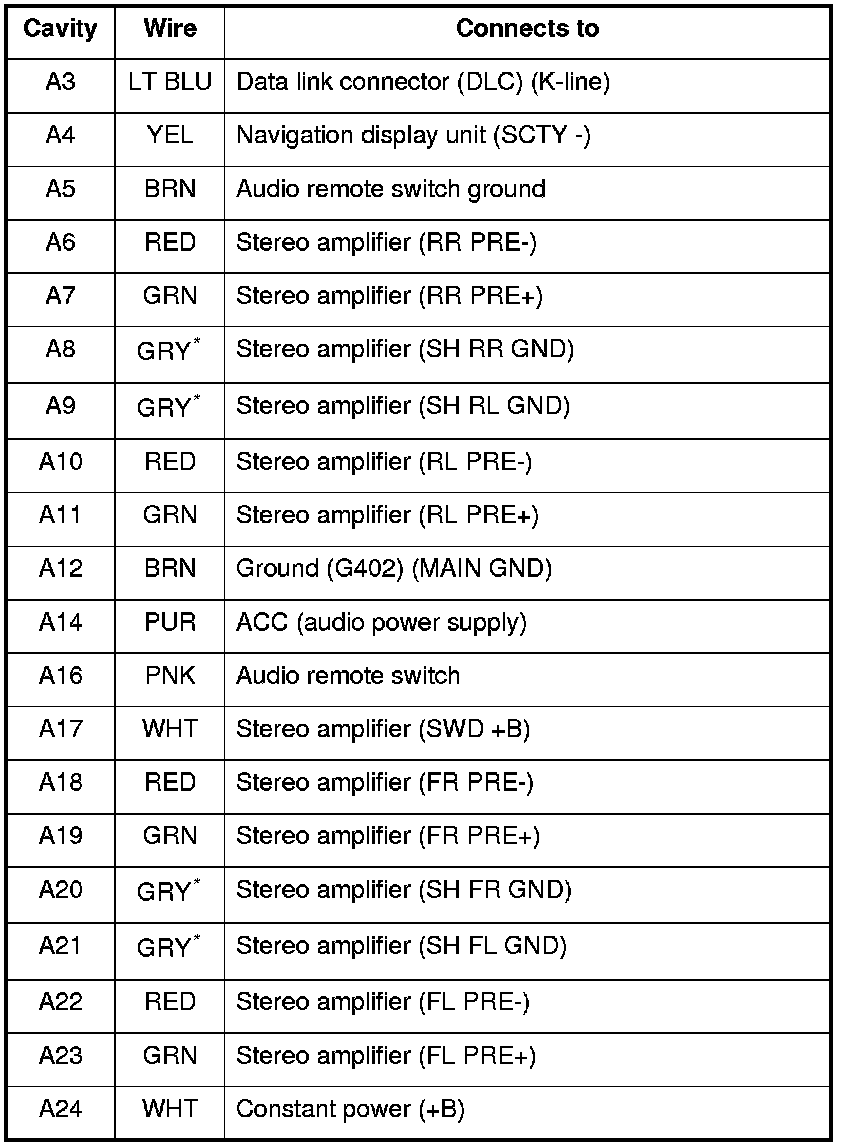

Audio Unit Connector A (24P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

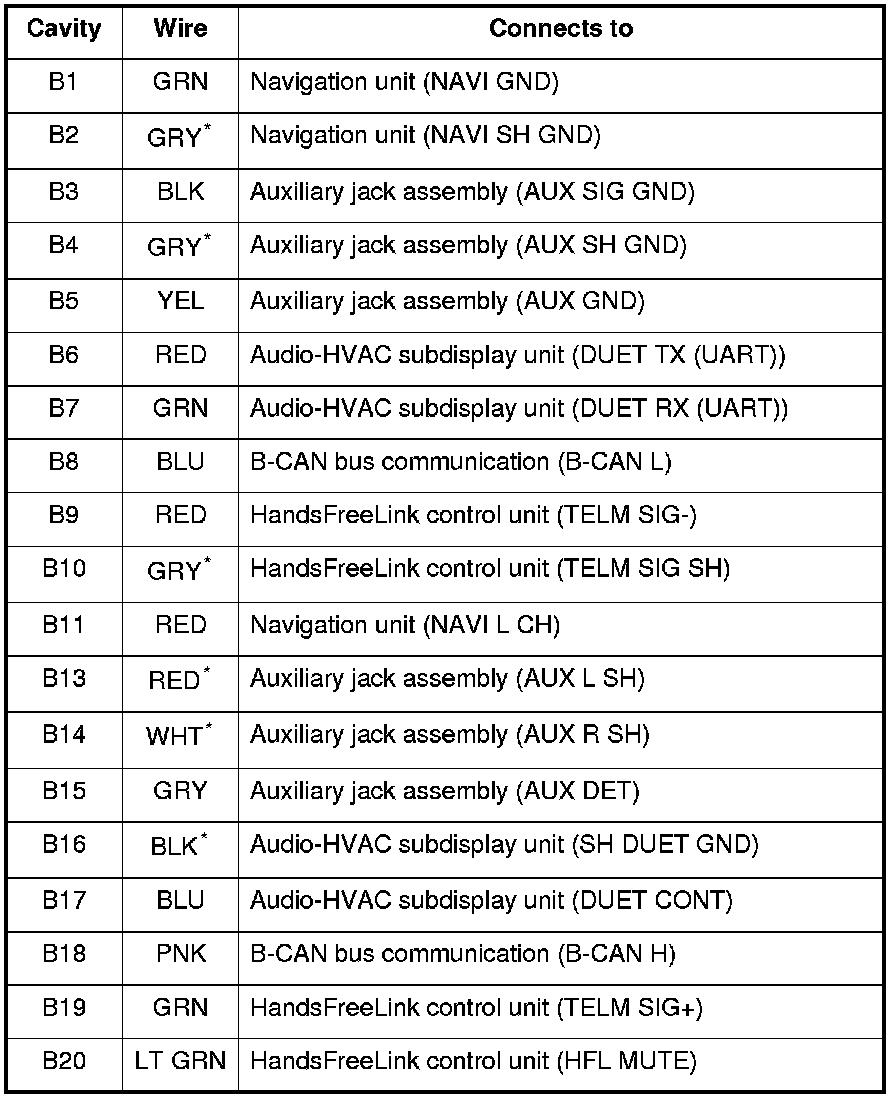

AUDIO UNIT CONNECTOR B (20P)

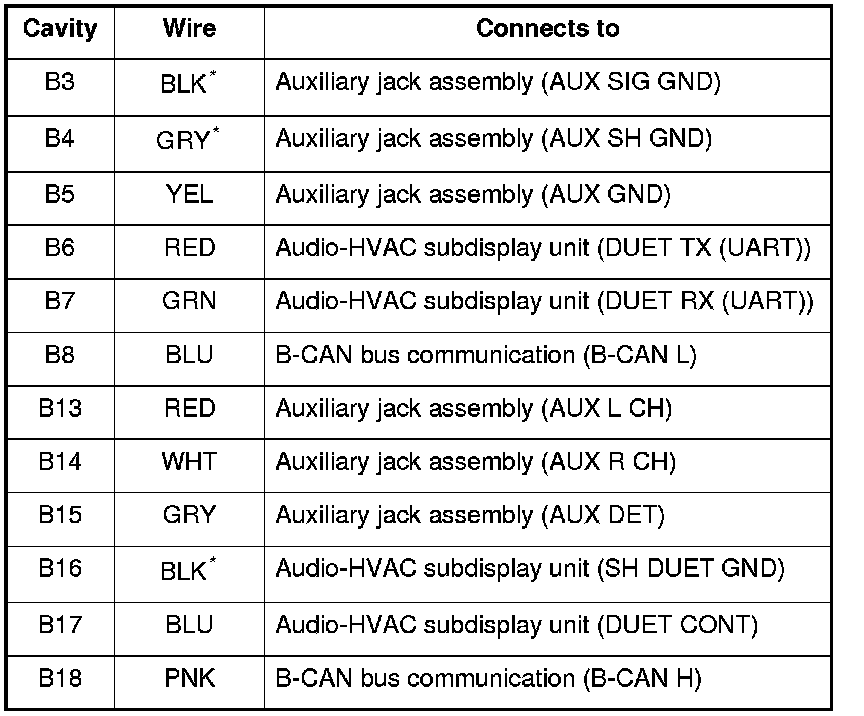

Audio Unit Connector B (20P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

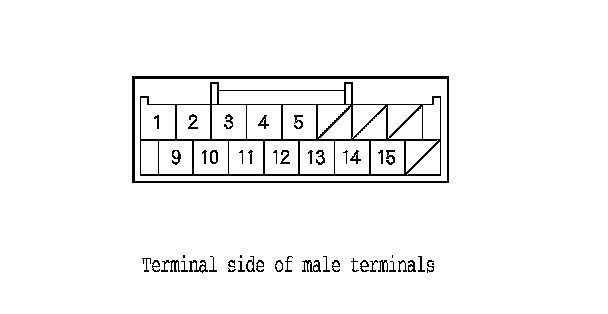

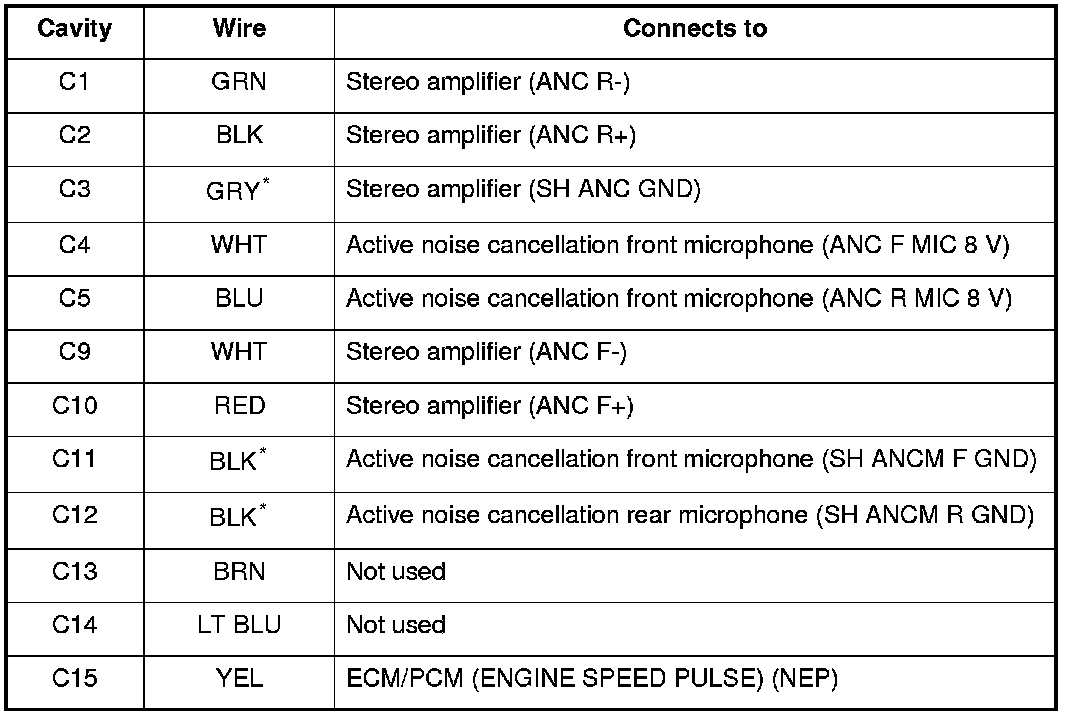

AUDIO UNIT CONNECTOR C (16P)
Audio Unit Connector C (16P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

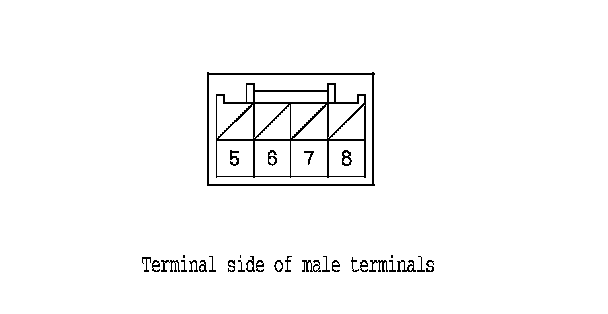

AUDIO UNIT CONNECTOR D (8P)

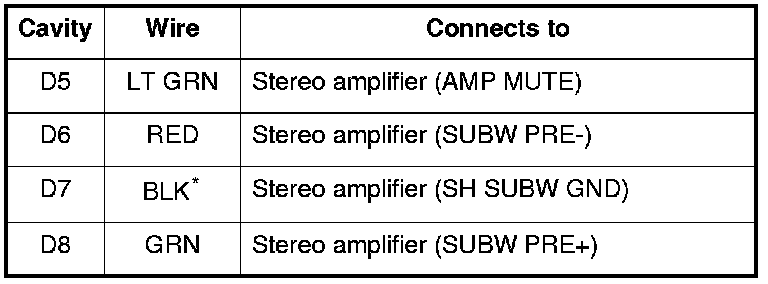

Audio Unit Connector D (8P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR E (14P)

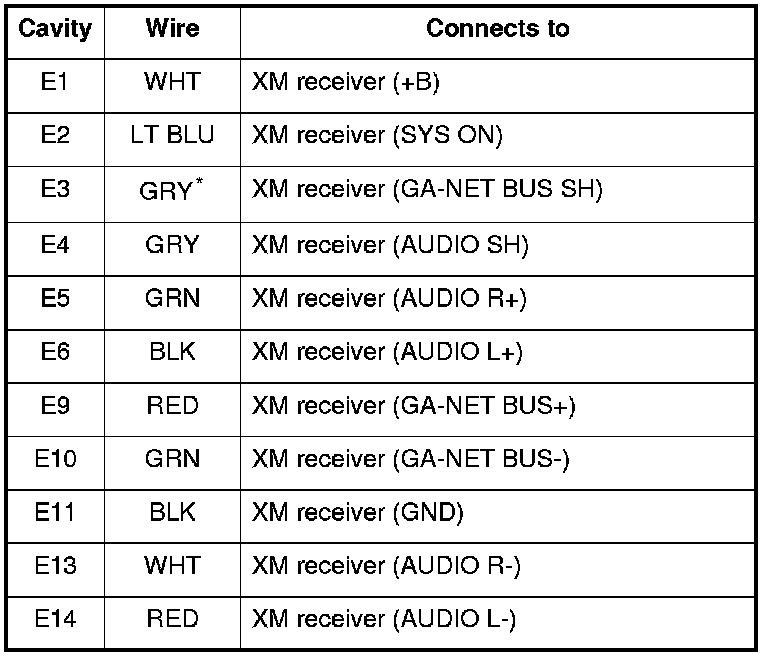

Audio Unit Connector E (14P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

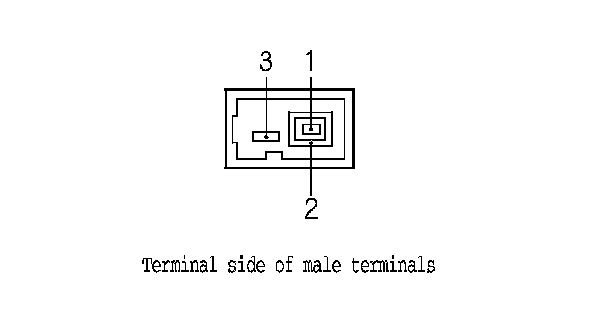

AUDIO UNIT CONNECTOR F (3P)

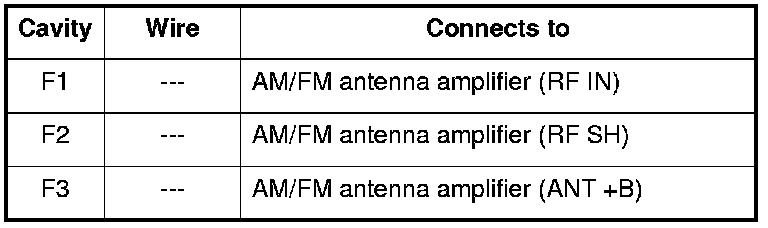

Audio Unit Connector F (3P)

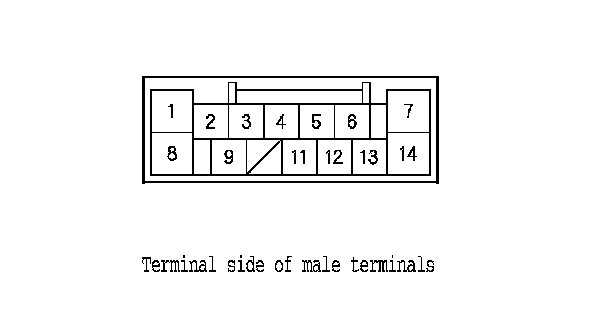

AUDIO UNIT CONNECTOR G (14P)

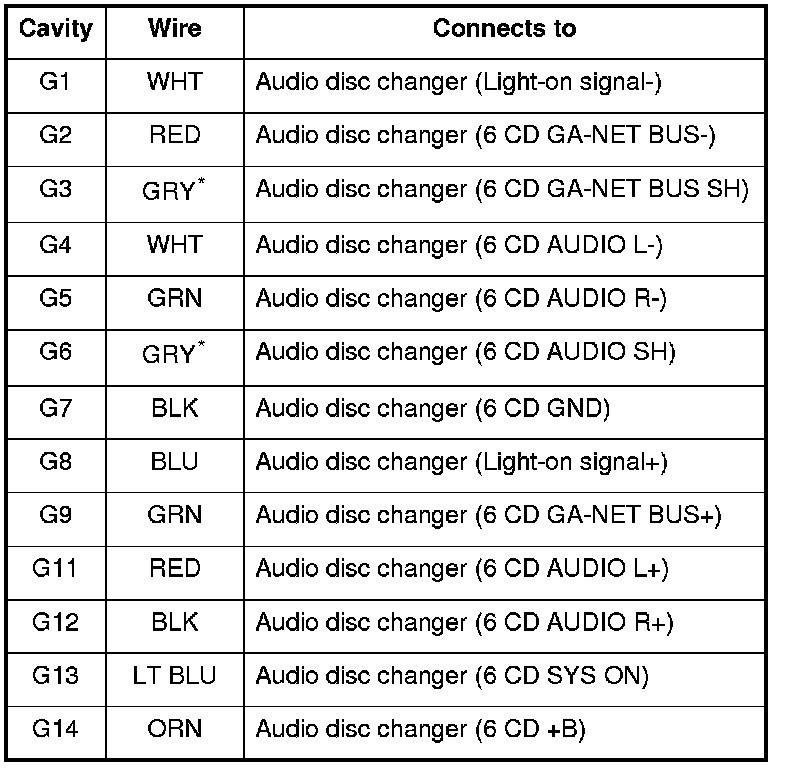

Audio Unit Connector G (14P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
Audio Unit Connector for Inputs and Outputs

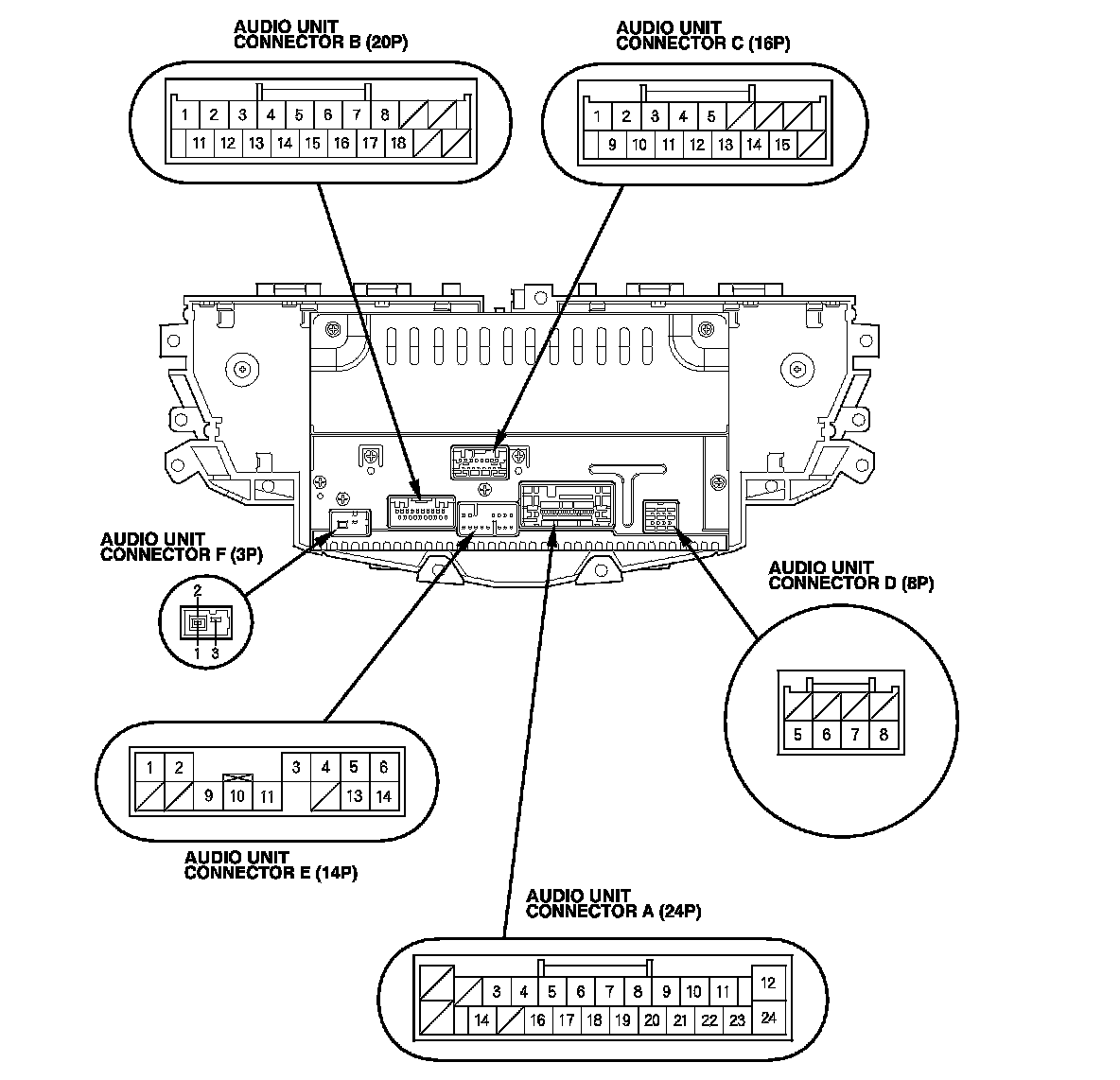

With Premium Audio System (Without Navigation System)
AUDIO UNIT CONNECTOR A (24P)
Audio Unit Connector A (24P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

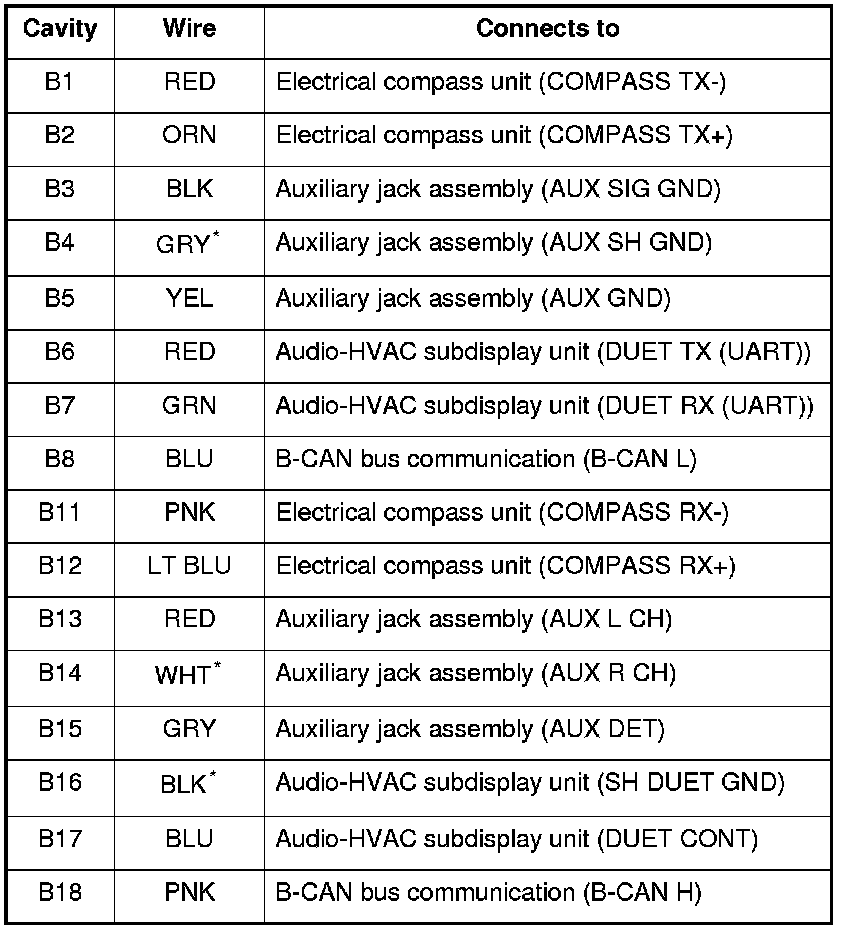

AUDIO UNIT CONNECTOR B (20P)
Audio Unit Connector B (20P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

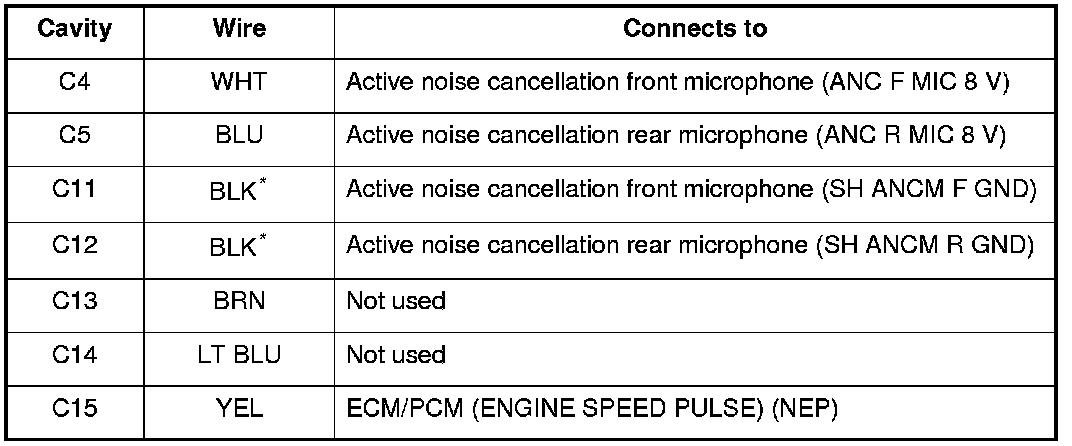

AUDIO UNIT CONNECTOR C (16P)
Audio Unit Connector C (16P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR D (8P)
Audio Unit Connector D (8P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR E (14P)
Audio Unit Connector E (14P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR F (3P)
Audio Unit Connector F (3P)

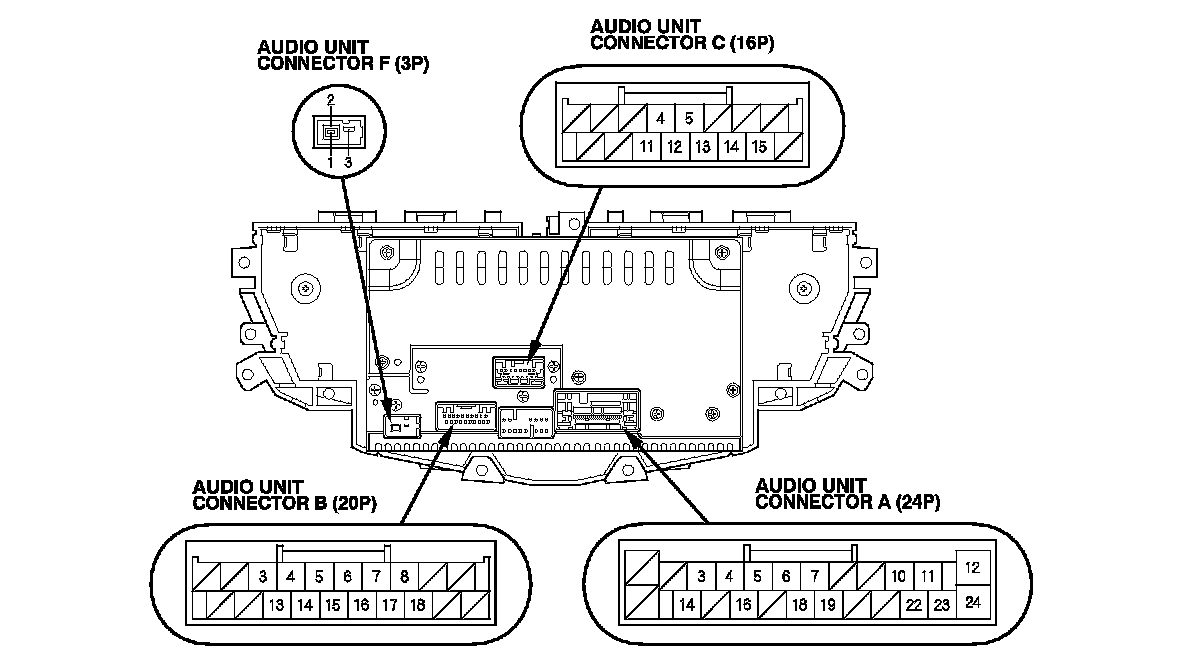

Audio Unit Connector for Inputs and Outputs
Without Premium Audio System
1 CD type
6 CD type

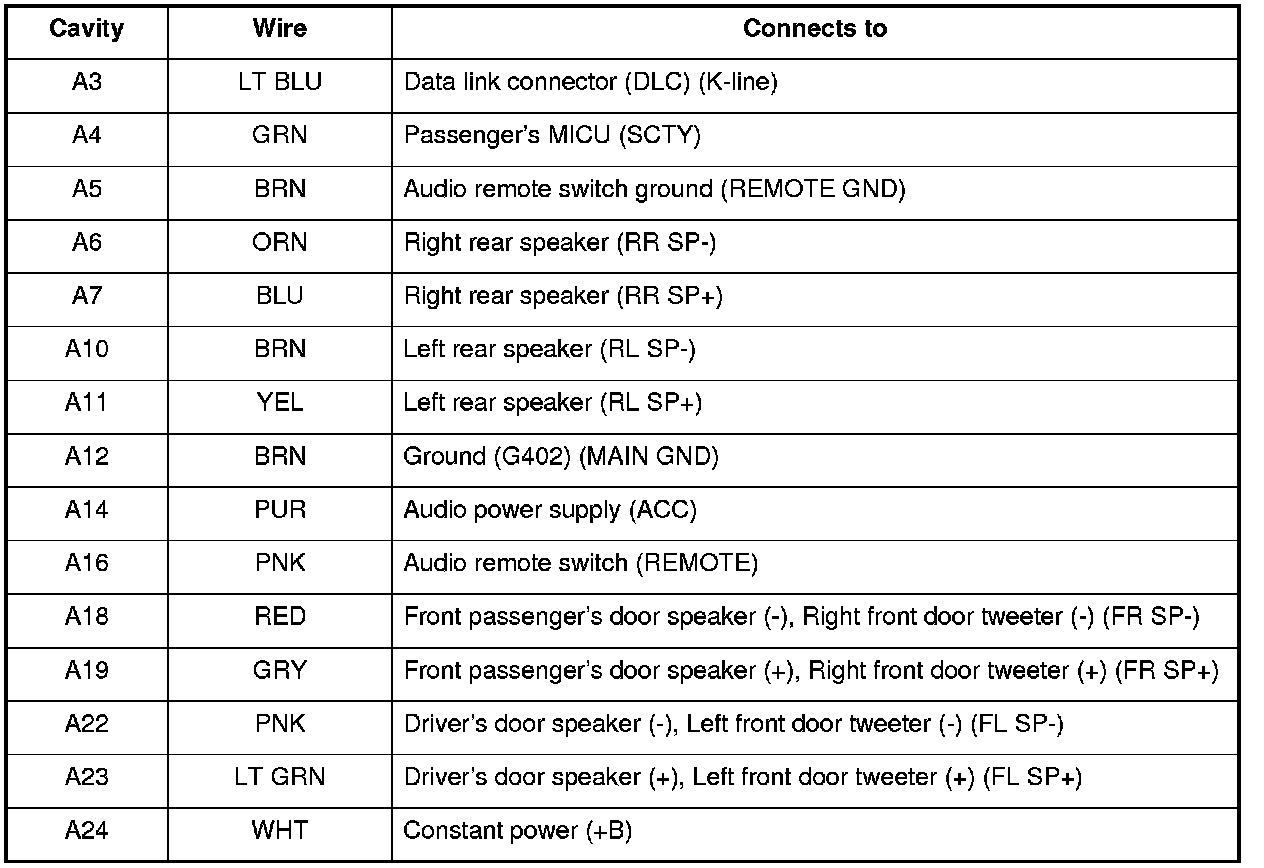

AUDIO UNIT CONNECTOR A (24P) (1 CD Type)

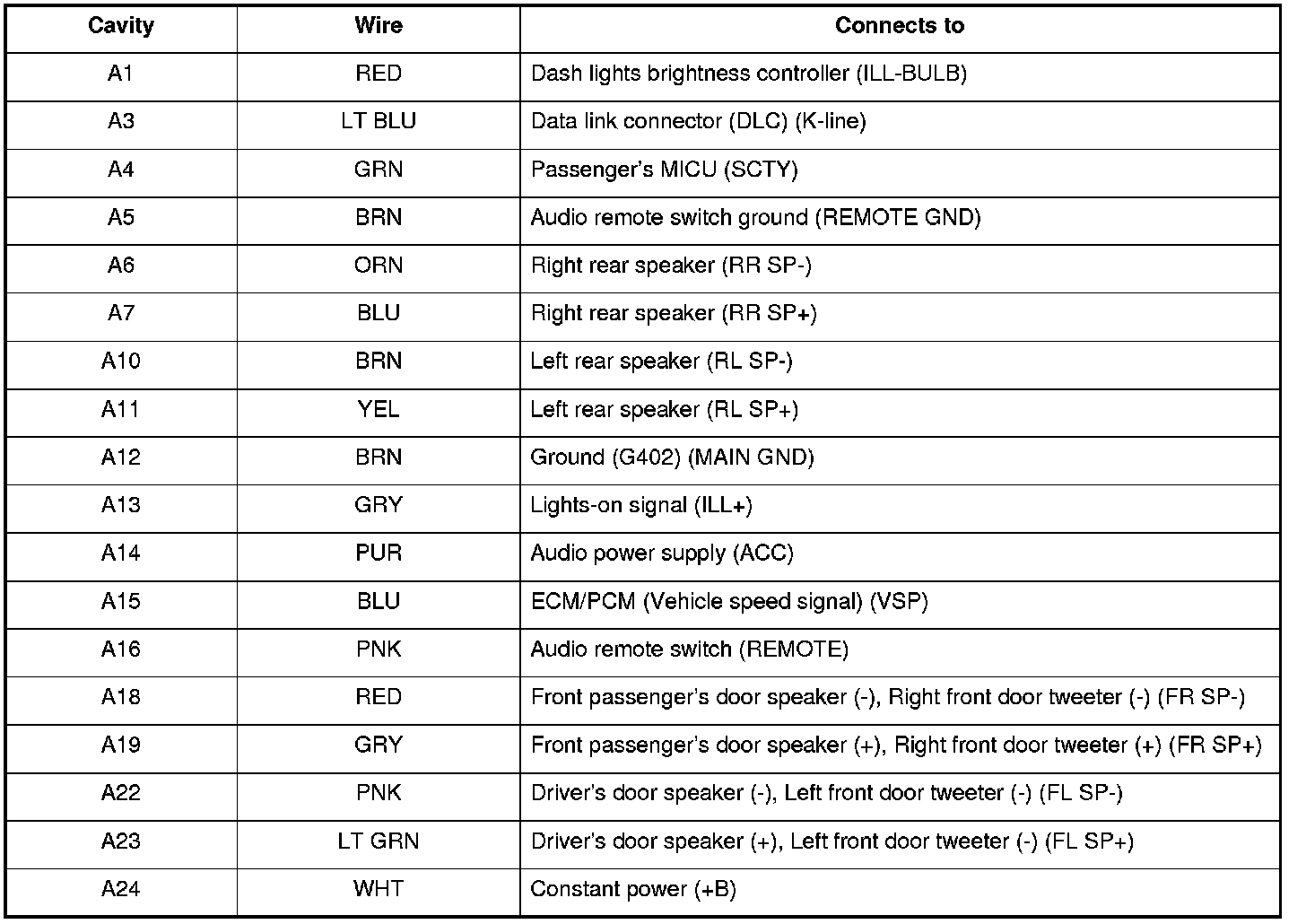

Audio Unit Connector A (24P) (1 CD Type)
AUDIO UNIT CONNECTOR B (12P) (1 CD Type)
Audio Unit Connector B (12P) (1 CD Type)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR A (24P) (6 CD Type)
Audio Unit Connector A (24P) (6 CD Type)

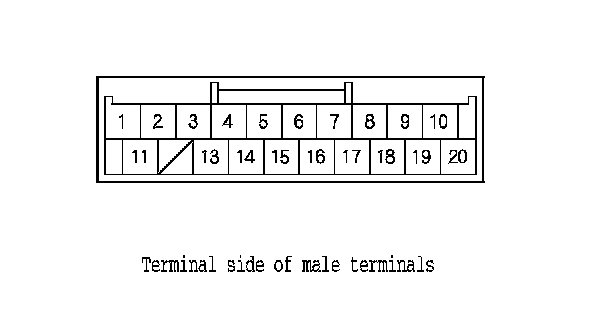

AUDIO UNIT CONNECTOR B (20P) (6 CD Type)
Audio Unit Connector B (20P) (6 CD Type)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR C (16P) (6 CD Type)
Audio Unit Connector C (16P) (6 CD Type)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
AUDIO UNIT CONNECTOR F (3P)
Audio Unit Connector F (3P)

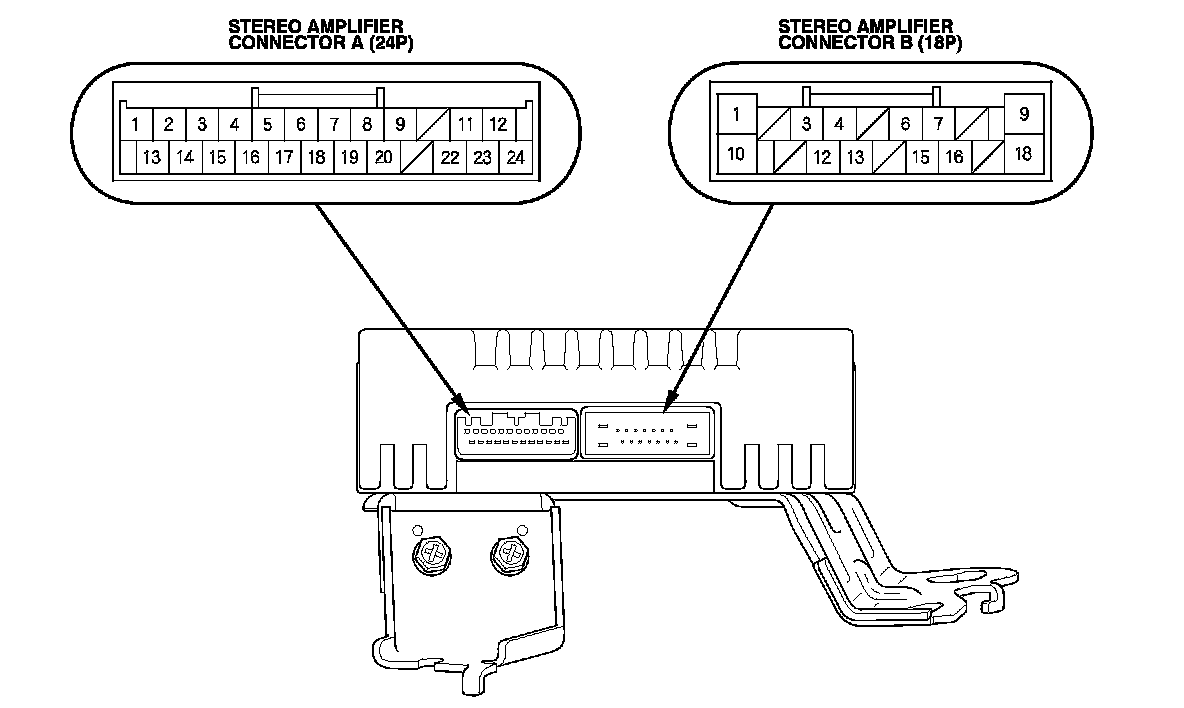

Stereo Amplifier Connector for Inputs and Outputs
Premium Audio System

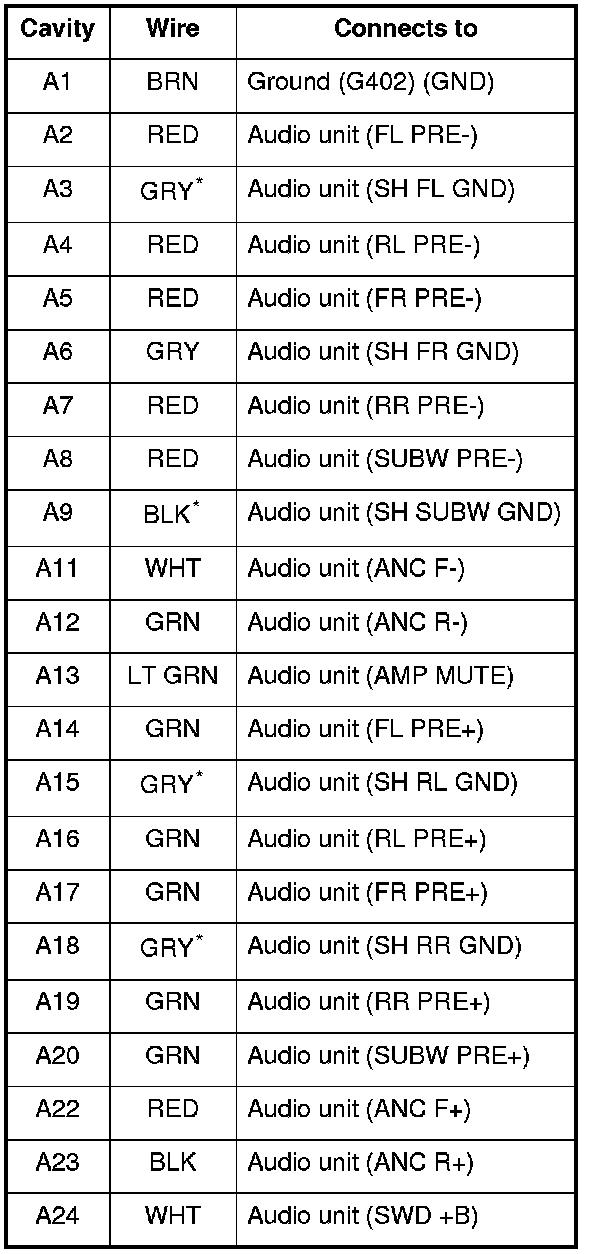

STEREO AMPLIFIER CONNECTOR A (24P)
Stereo Amplifier Connector A (24P)
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

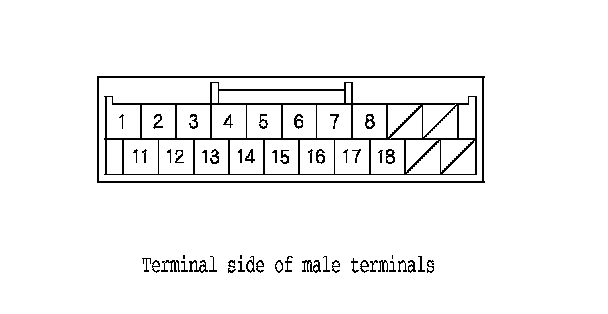

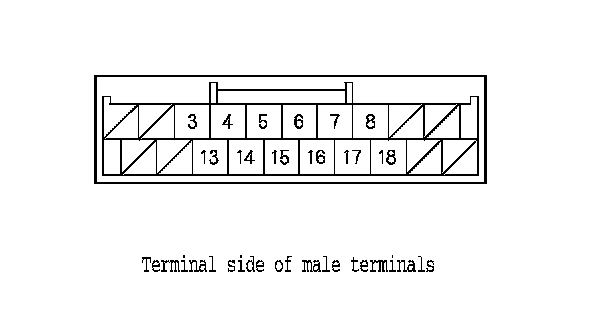

STEREO AMPLIFIER CONNECTOR B (18P)

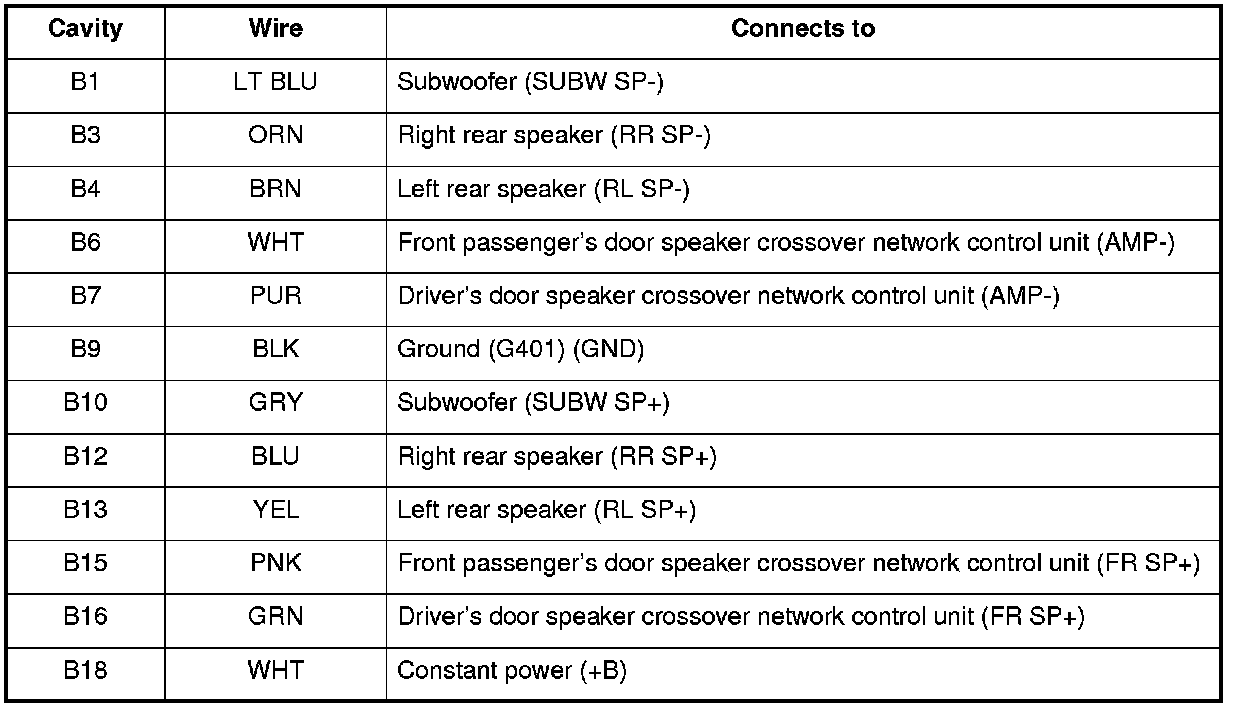

Stereo Amplifier Connector B (18P)
XM Receiver Connector for Inputs and Outputs
Premium Audio System

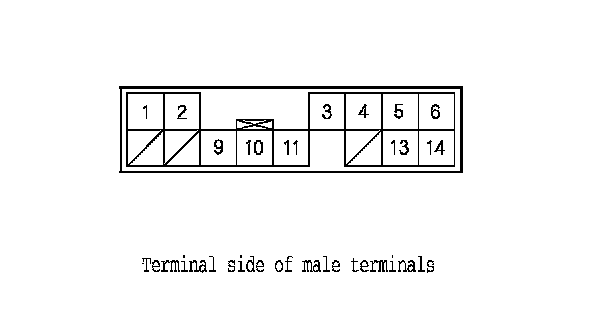

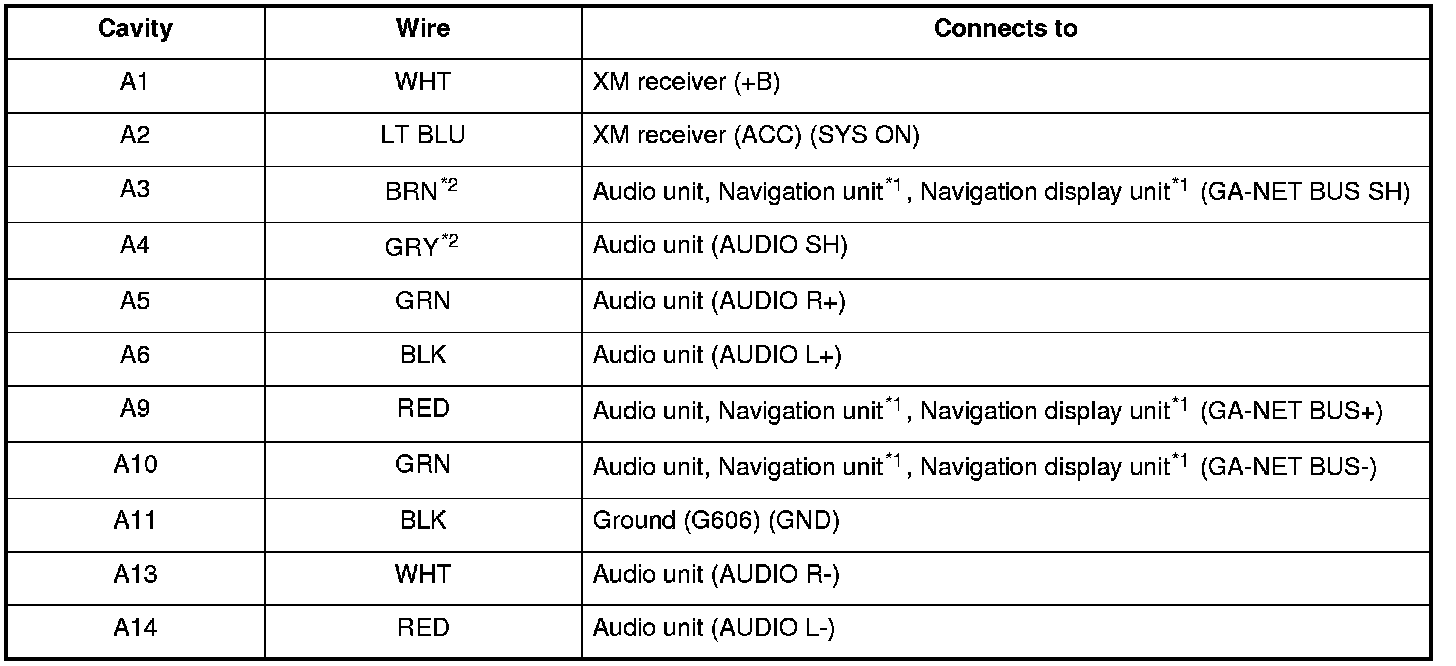

XM RECEIVER CONNECTOR A (14P)
XM Receiver Connector A (14P)

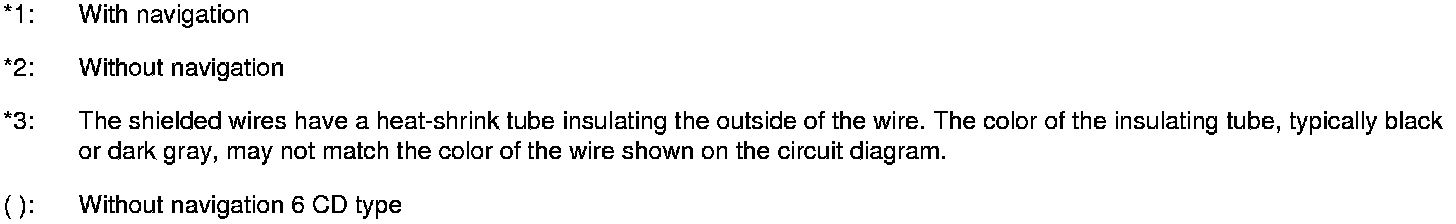

*1: With navigation
*2: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.

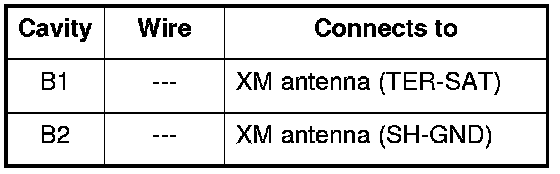

XM RECEIVER CONNECTOR B (2P)
XM Receiver Connector B (2P)
Auxiliary Jack Assembly Connector for Inputs and Outputs
Auxiliary Jack Assembly 5P Connector
Active Noise Cancellation Microphone Connector for Inputs and Outputs

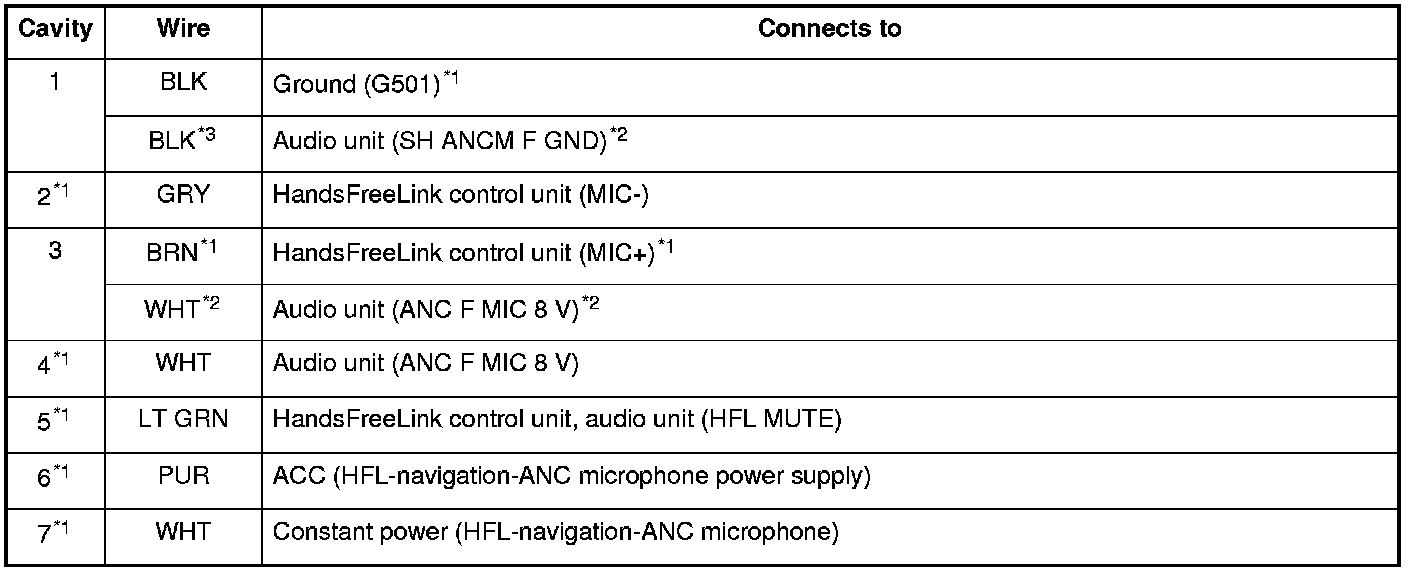

Active Noise Cancellation Front Microphone 7P (or 3P) Connector

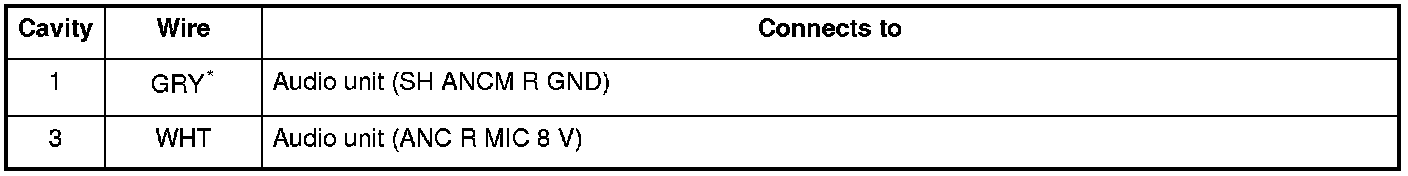

Active Noise Cancellation Rear Microphone 3P Connector
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
Audio Disc Changer Connector for Inputs and Outputs (With Navigation)

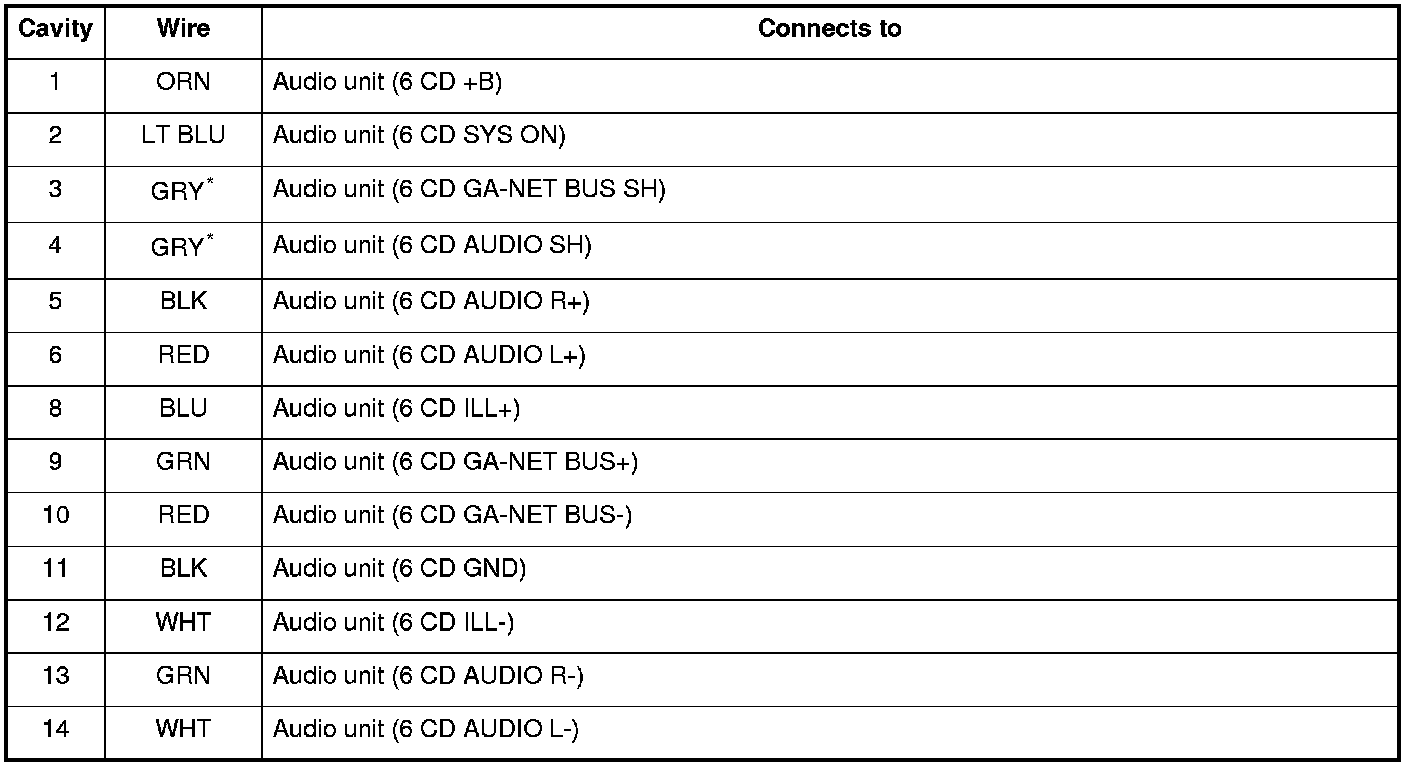

Audio Disc Changer 14P Connector
*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
Speaker Crossover Network Control Unit Connector for Inputs and Outputs

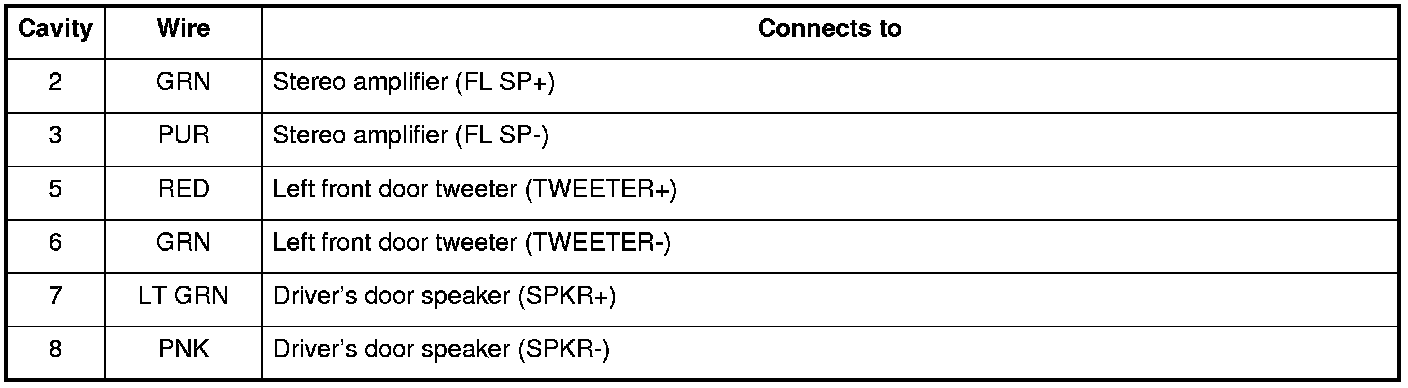

Driver's Door Speaker Crossover Network Control Unit 8P Connector

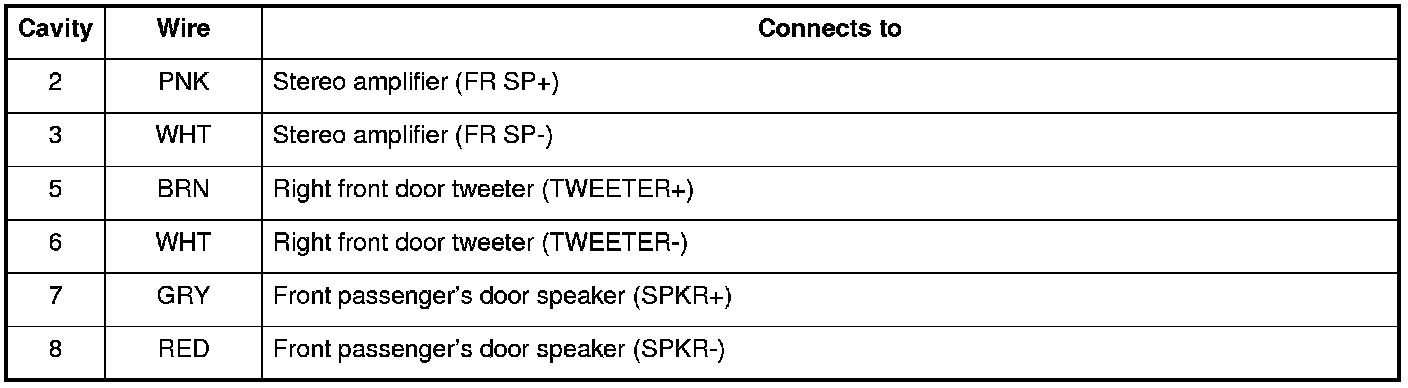

Front Passenger's Door Speaker Crossover Network Control Unit 8P Connector
Audio-HVAC Subdisplay Unit Connector for Inputs and Outputs (With Navigation)

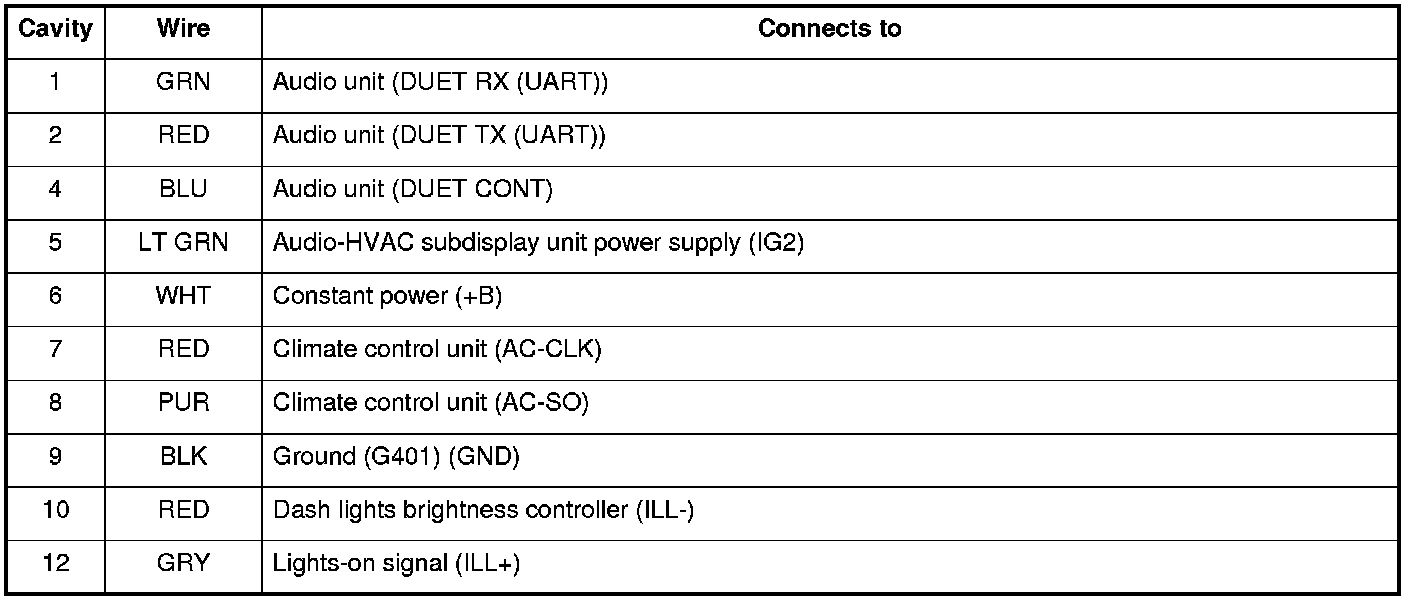

Audio-HVAC Subdisplay Unit 12P Connector
Audio-HVAC Display Unit Connector for Inputs and Outputs (Without Navigation)

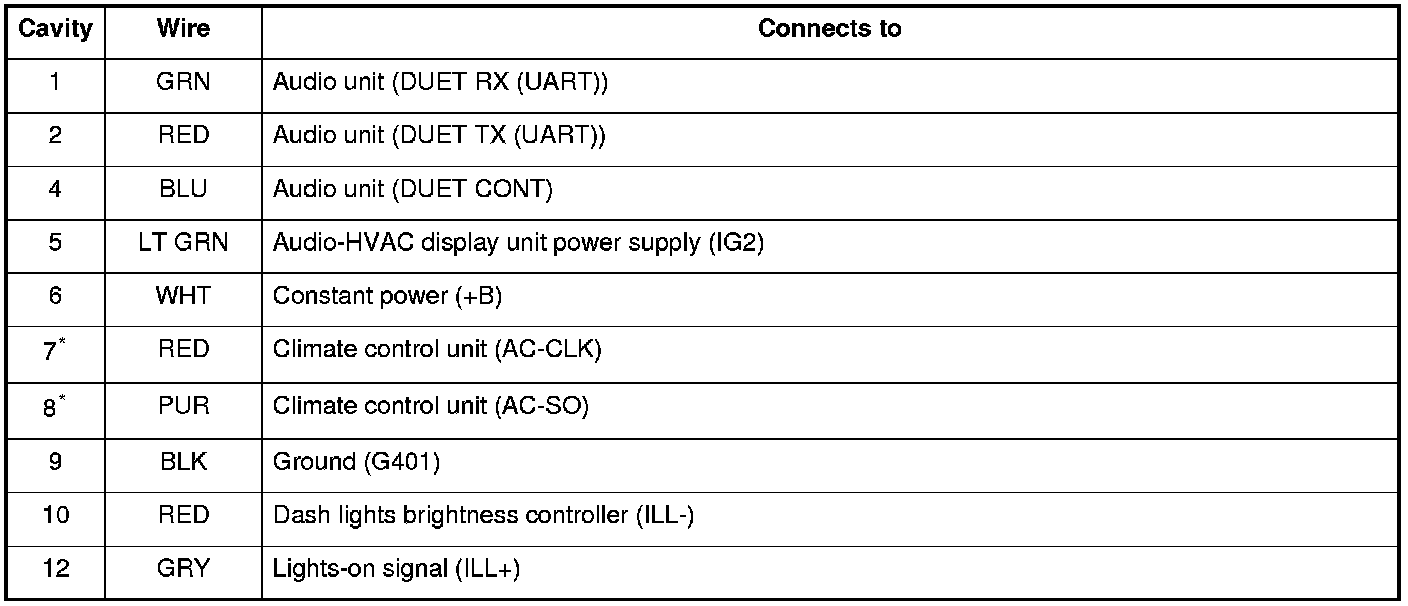

Audio-HVAC Display Unit 12P Connector
*: With climate control
