Gearbox Mount Cushion Replacement

Gearbox Mount Cushion Replacement
1. Remove the steering gearbox.

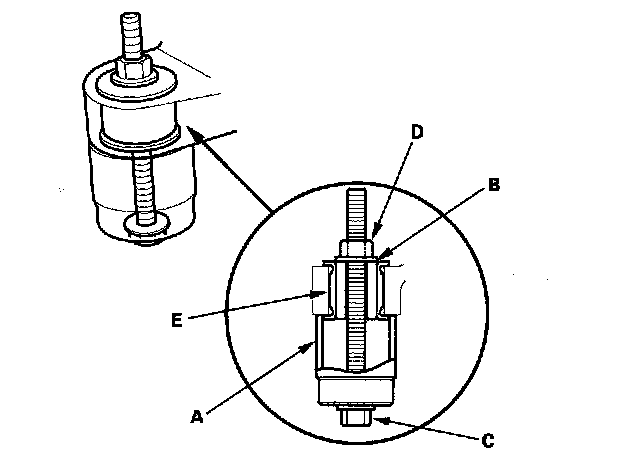

2. Position a 34 mm socket wrench (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C) and a 10 mm nut (D) as shown.





3. Hold the nut with a wrench, and tighten the flange bolt with another wrench. Remove the gearbox mount cushion (E).

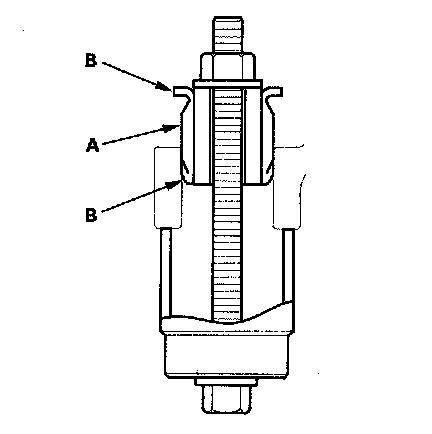

4. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place it on the gearbox mounting cushion hole.





5. Position a 34 mm socket wrench on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.
6. Install the gearbox mount cushion by tightening the nut until the mount cushion edges (B) contact the gearbox flange surface.
7. Install the steering gearbox.
