Heating/Air Conditioning Circuit Diagram

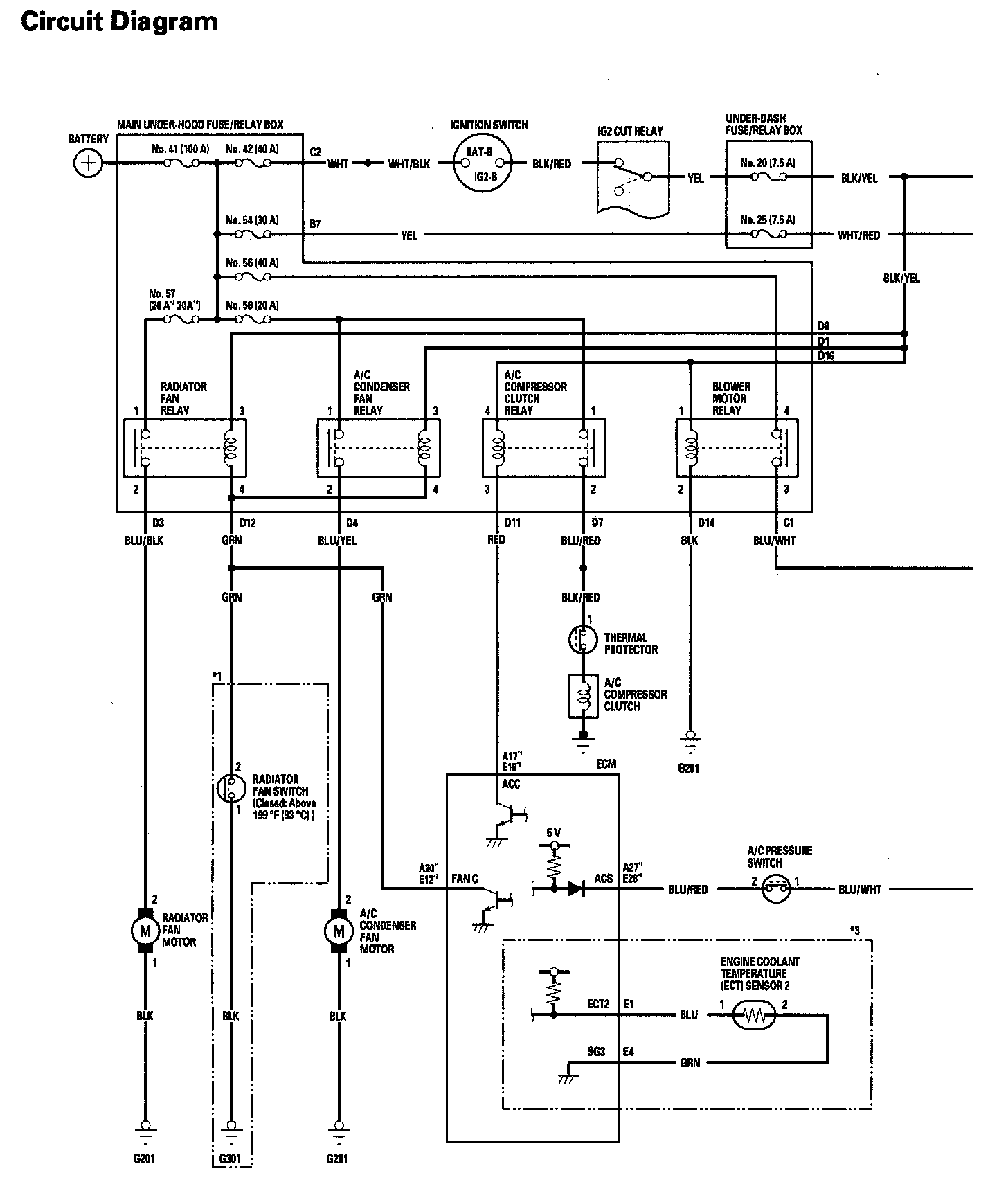

Heating/Air Conditioning Circuit Diagram (Part 1):
Heating/Air Conditioning Circuit Diagram (Part 2):
