CKP Sensor Subharness
CKP Sensor Subharness
Harness Location View:

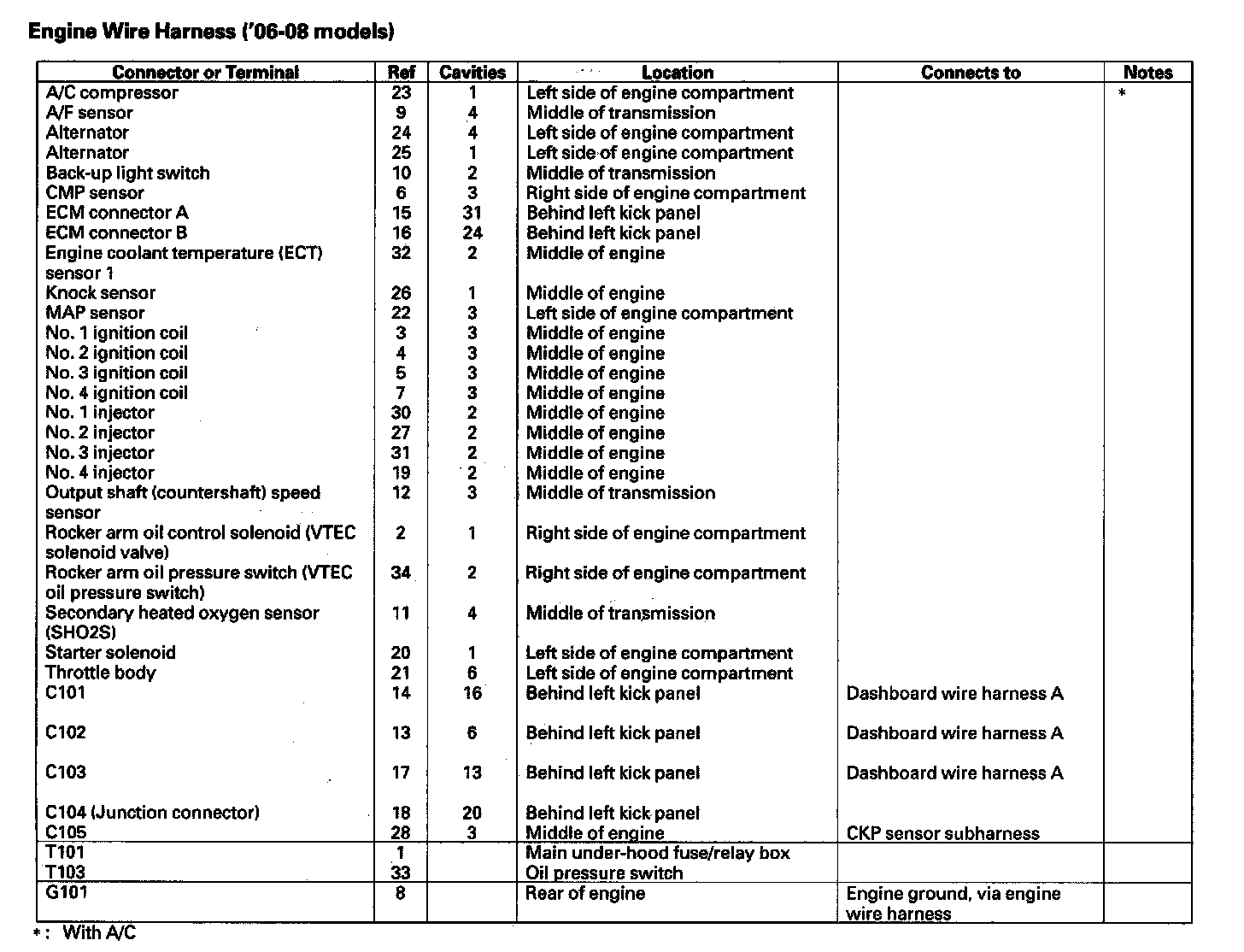

Engine Wire Harness:
Harness Location View:

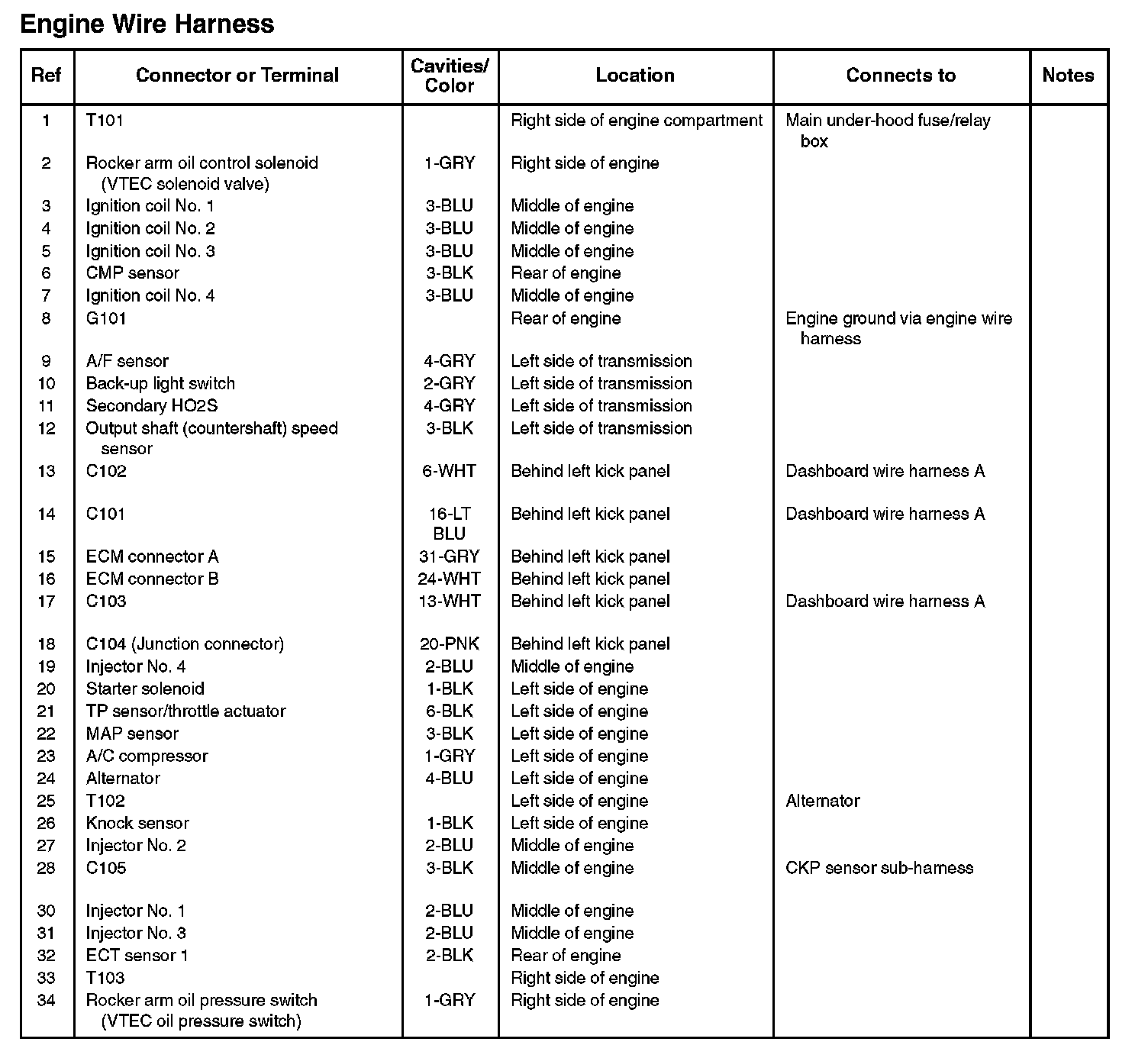

Engine Wire Harness:
