Keyless/Power Door Lock System Circuit Diagram
Keyless/Power Door Lock System Circuit Diagram

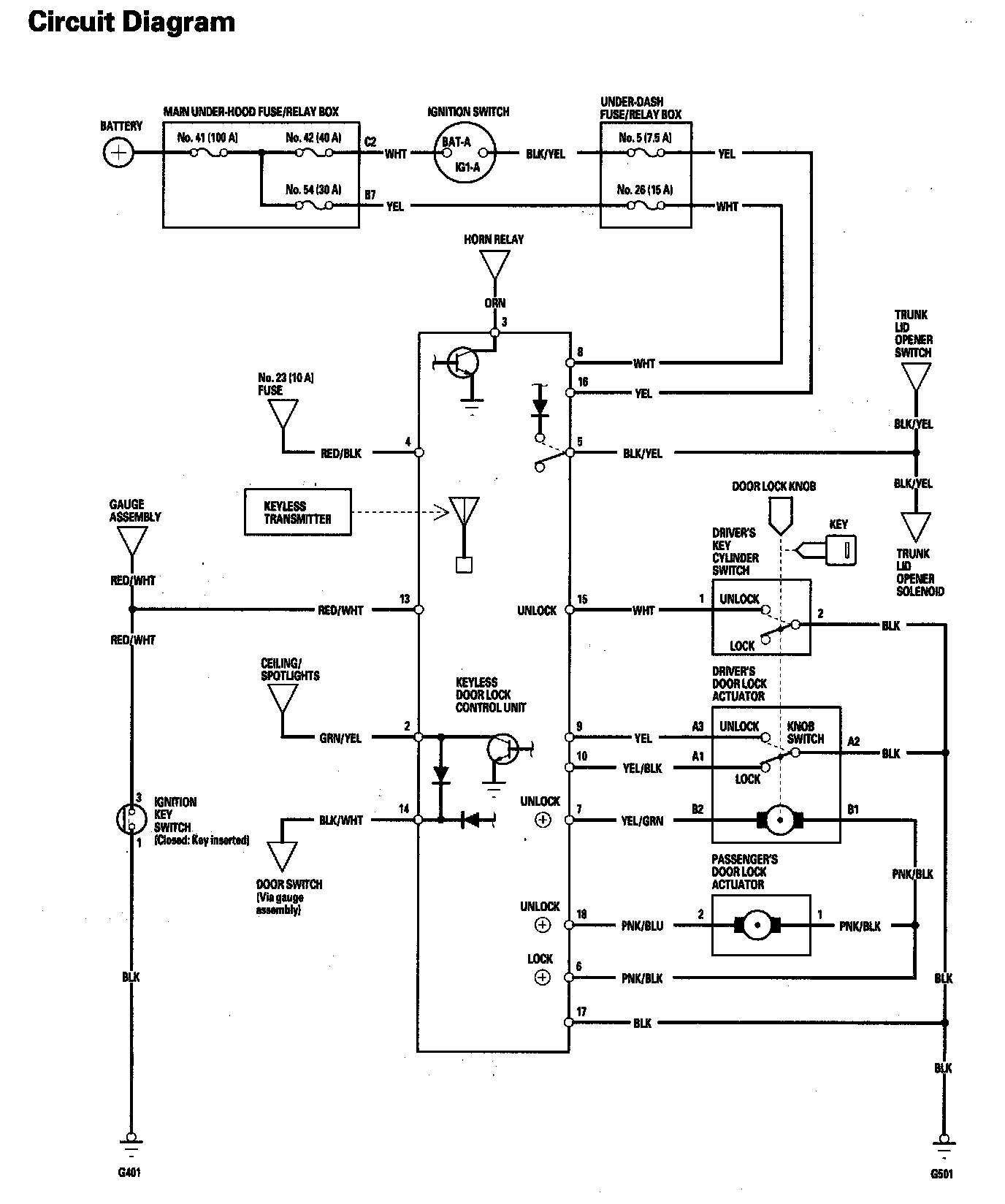

Keyless/Power Door Lock System Circuit Diagram:
