Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Reminder Systems Circuit Diagram
Reminder Systems Circuit Diagram

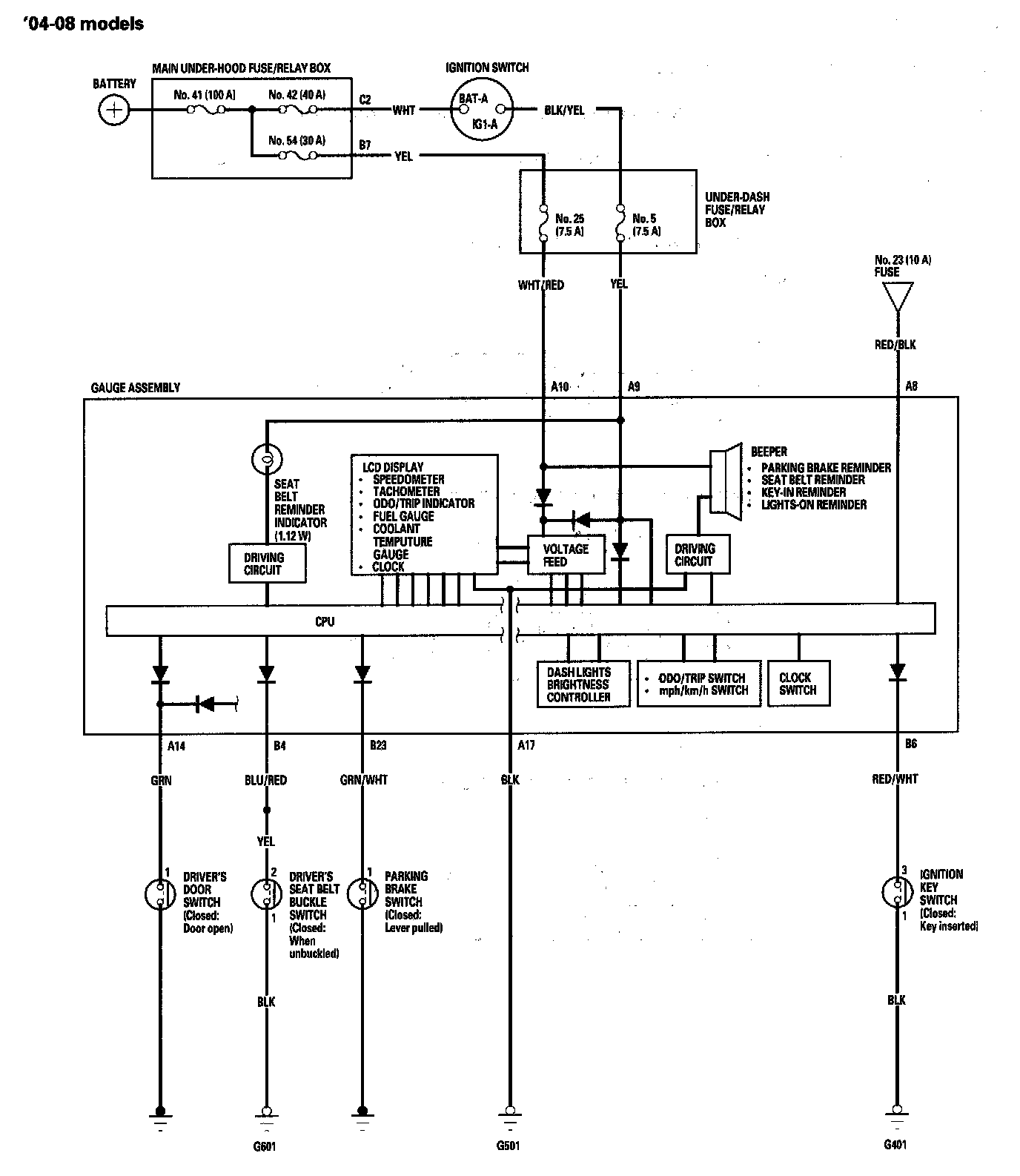

Reminder Systems Circuit Diagram:
