Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 26-50 >> 48

View 26-50: 48

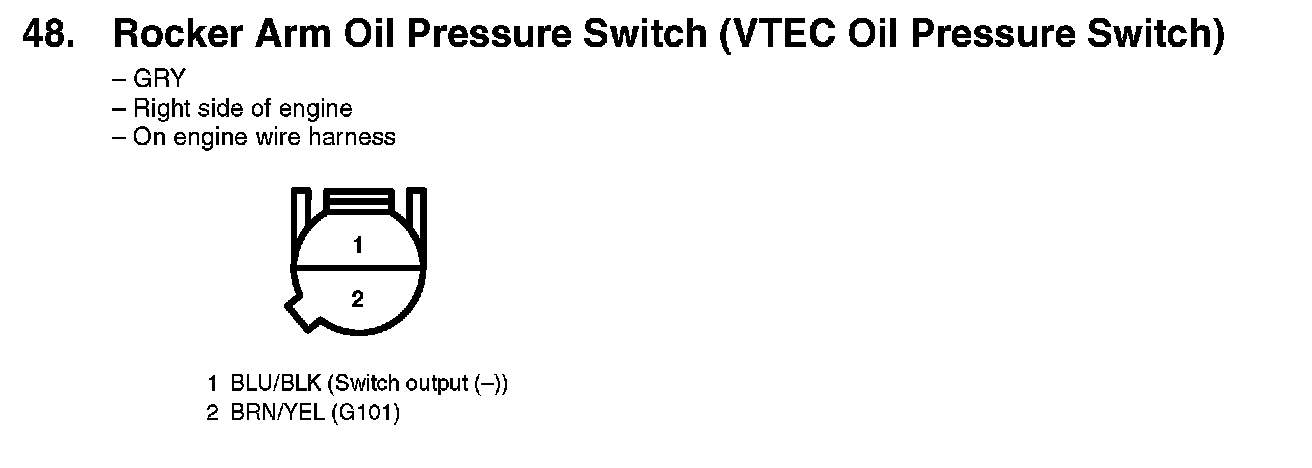

48. Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch):
