Home >> Honda >> 2008 >> S2000 L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 165

View 151-175: 165

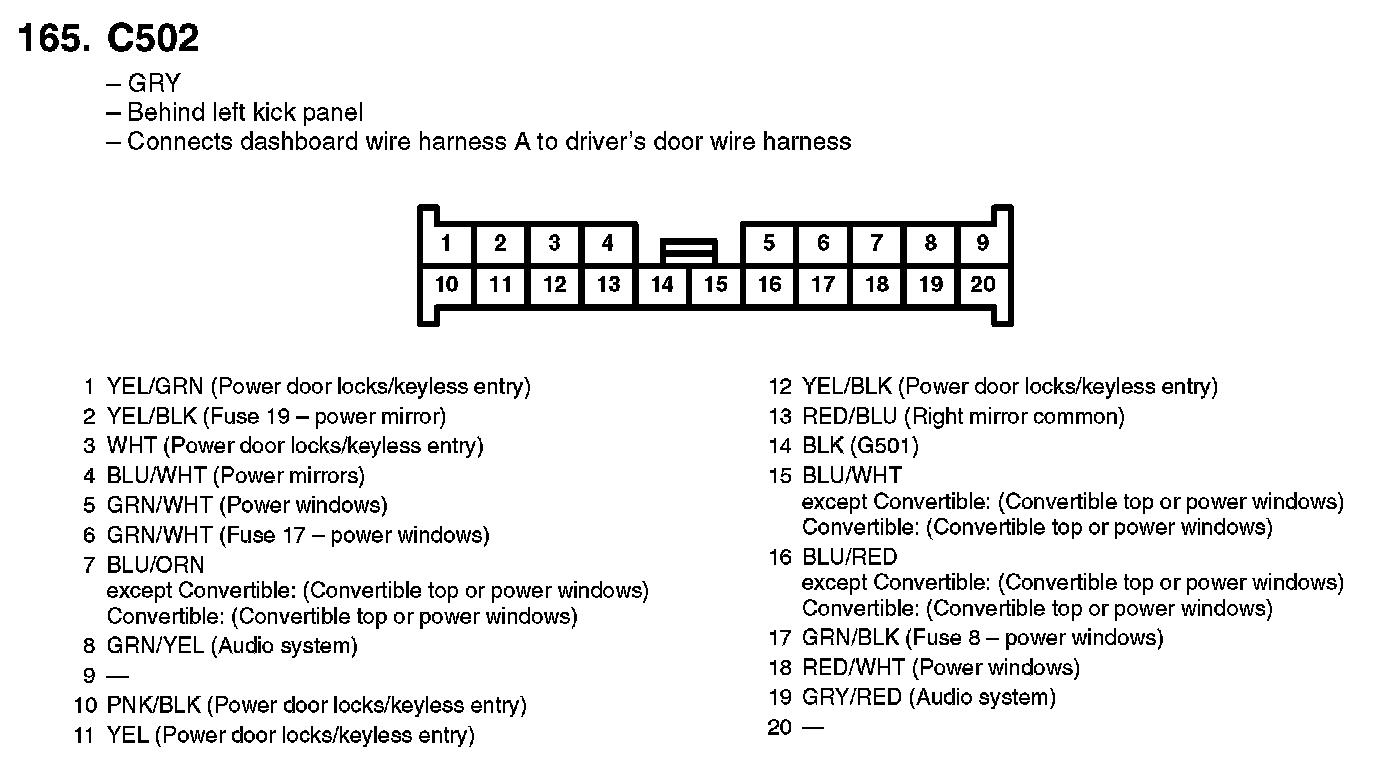

165. C502:
