Trunk Lid Spoiler Replacement
Trunk Lid Spoiler ReplacementCR model
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the trunk lid.

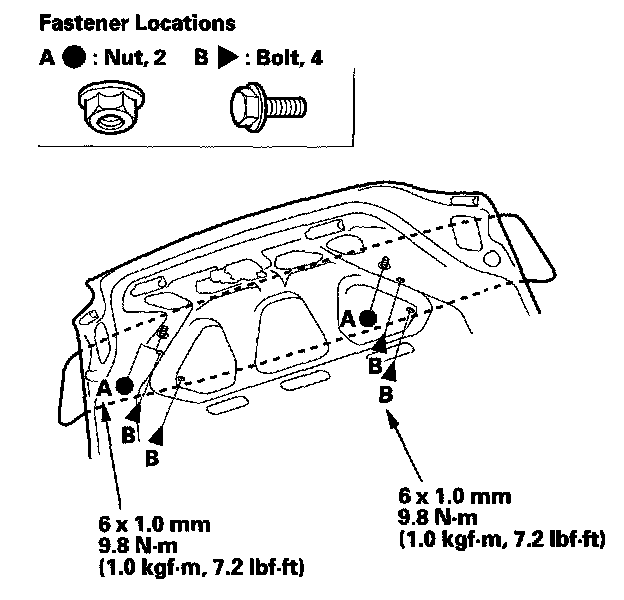

1. Open the trunk lid, and remove the nuts (A) and bolts (B) from inside the trunk lid.

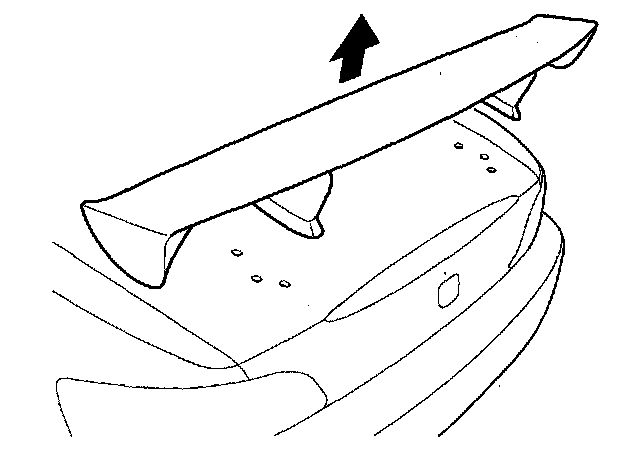

2. Close the trunk lid, then remove the trunk lid spoiler.

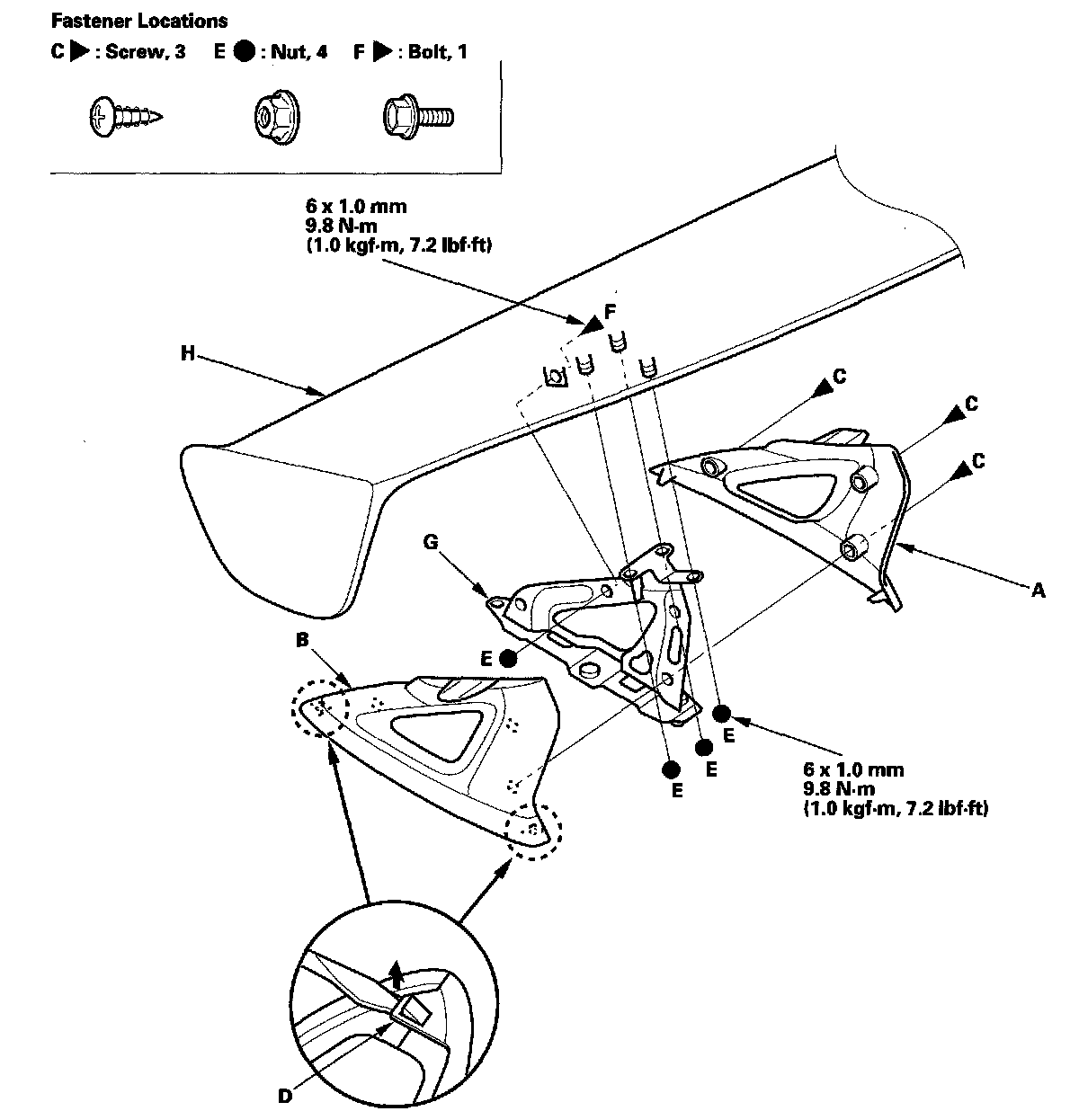

3. If necessary, separate the trunk lid spoiler inner foot (A) and the trunk lid spoiler outer foot (B).
1. Remove the screws (C).
2. Release the hooks (D) with a flat-tip screwdriver wrapped with protective tape, then separate the trunk lid spoiler inner foot and the trunk lid spoiler outer foot.
3. Remove the nuts (E) and the bolts (F), then remove the trunk lid spoiler foot stiffener (G) from the trunk lid spoiler (H).
NOTE: This illustration shows the left side of the trunk lid spoiler, repeat the procedure on the right side in the same manner.
4. Install the trunk lid spoiler in the reverse order of removal.
