Wipers/Washers Circuit Diagram
Wipers/Washers Circuit Diagram

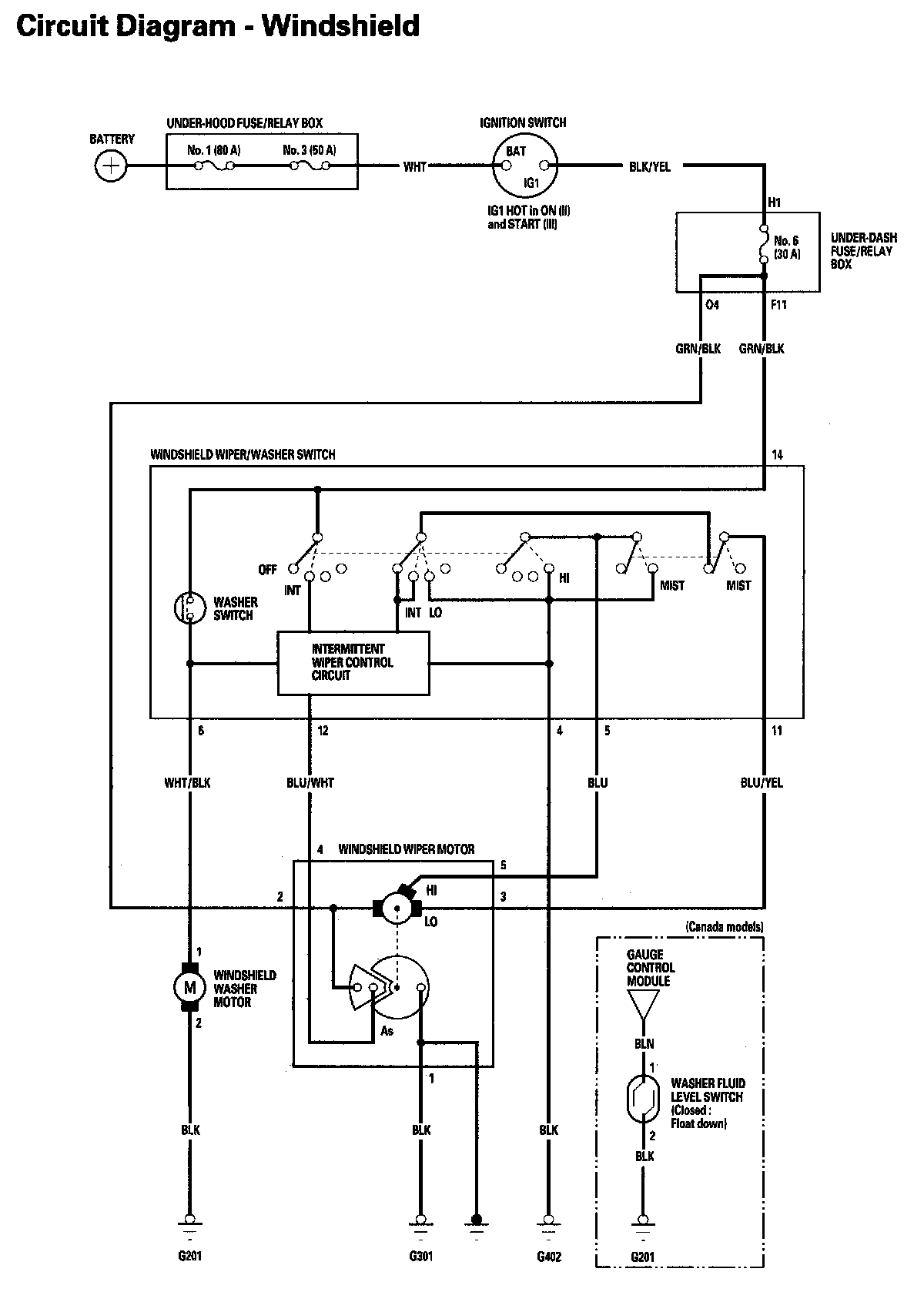

Wipers/Washers Circuit Diagram Part 1:
Wipers/Washers Circuit Diagram Part 2:
