Intermediate Shaft Removal

Intermediate Shaft Removal

NOTE: A/T model only.

1. Drain the transmission fluid. Reinstall the drain plug using a new washer.
2. Remove the right driveshaft.

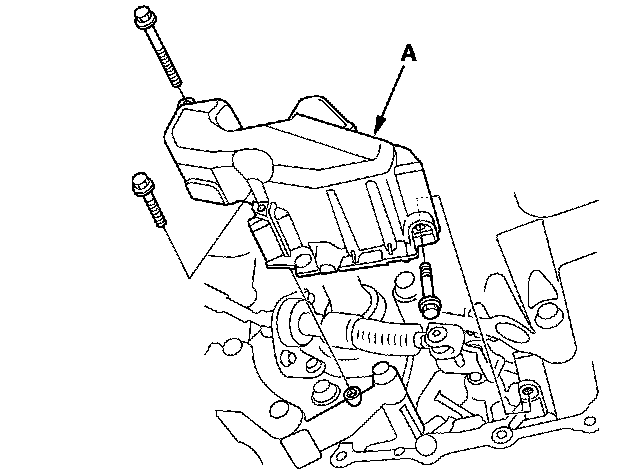

3. Remove the shift cable cover (A).

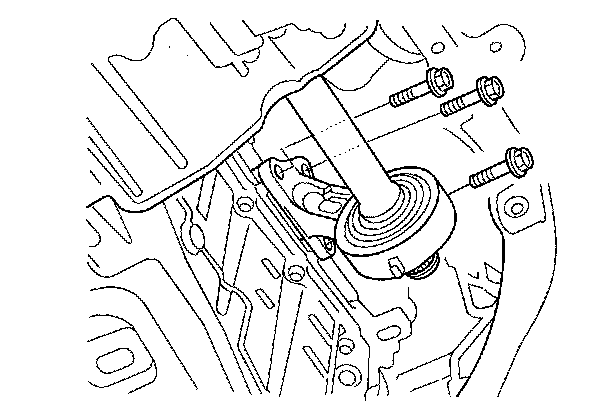

4. Remove the flange bolts.

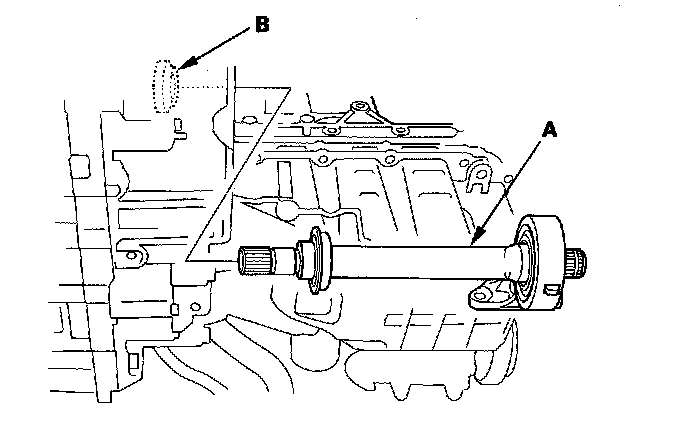

5. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the differential oil seal (B).
