Intermediate Shaft Installation
Intermediate Shaft InstallationNOTE: A/T model only.

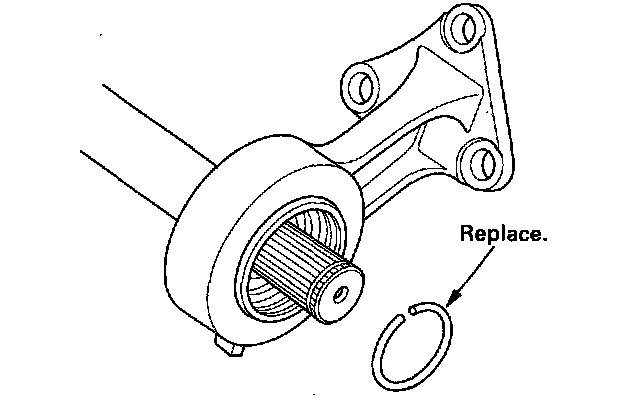

1. Install new set ring.

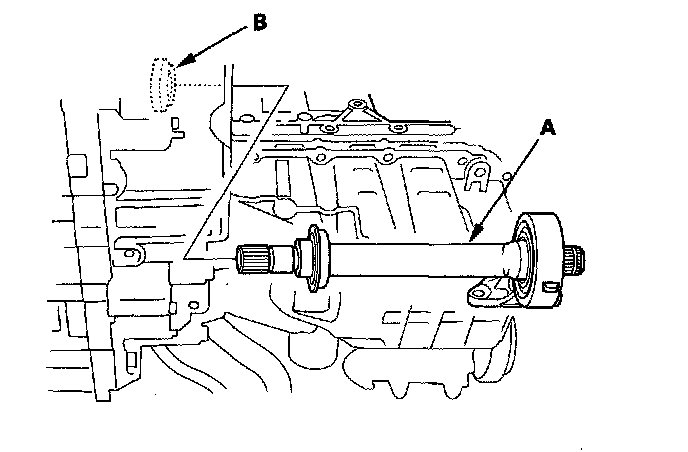

2. Use solvent or brake cleaner to thoroughly clean the areas where the intermediate shaft (A) contacts the transmission (differential), and dry with compressed air. Insert the intermediate shaft assembly into the differential. Insert the intermediate shaft horizontally to prevent damaging the differential oil seal (B).

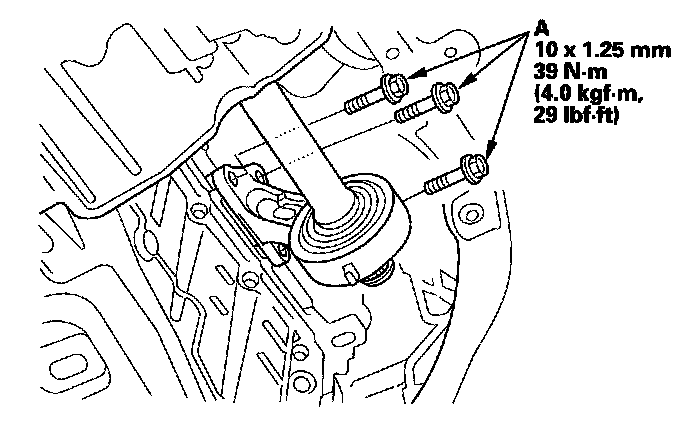

3. Install the flange bolts (A).

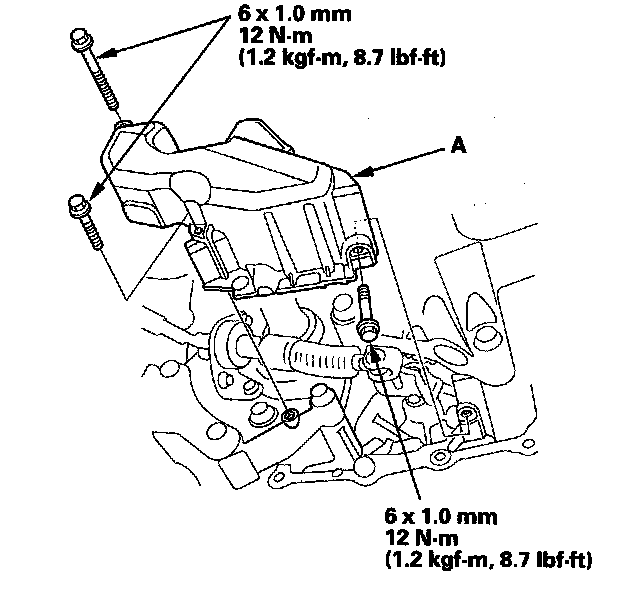

4. Install the shift cable cover (A).
5. Install the right driveshaft.
6. Refill the transmission with the recommended transmission fluid.
