Dynamic Damper Replacement

Dynamic Damper Replacement

1. Remove the inboard joint.
2. Remove the dynamic damper band.
^ If the boot band is a welded type, cut the boot band.
^ If the boot band is a low profile type, pinch the boot band using a commercially available boot band pliers.

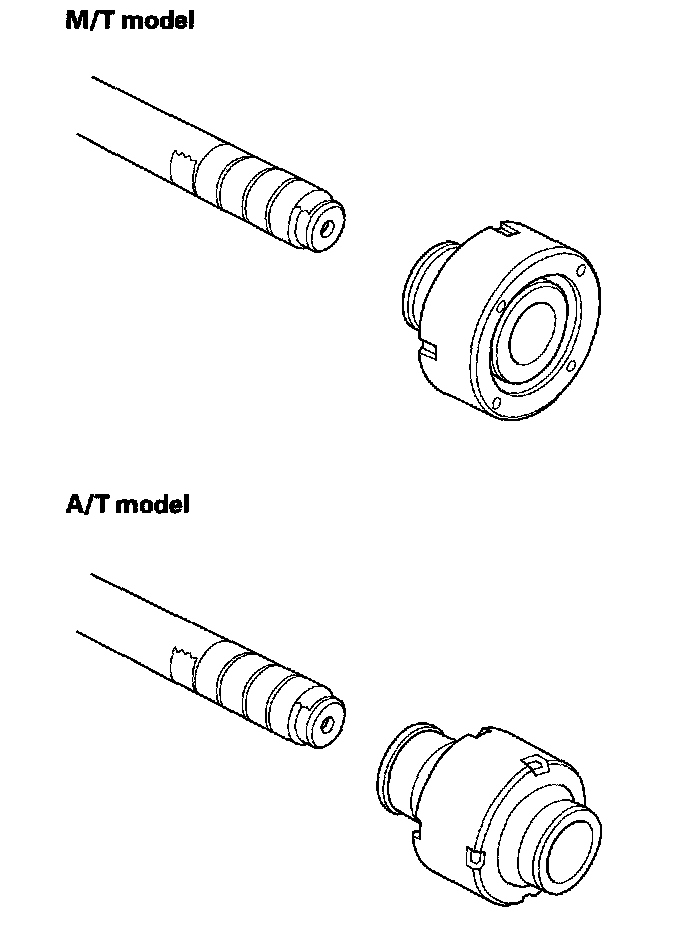

3. Remove the dynamic damper.

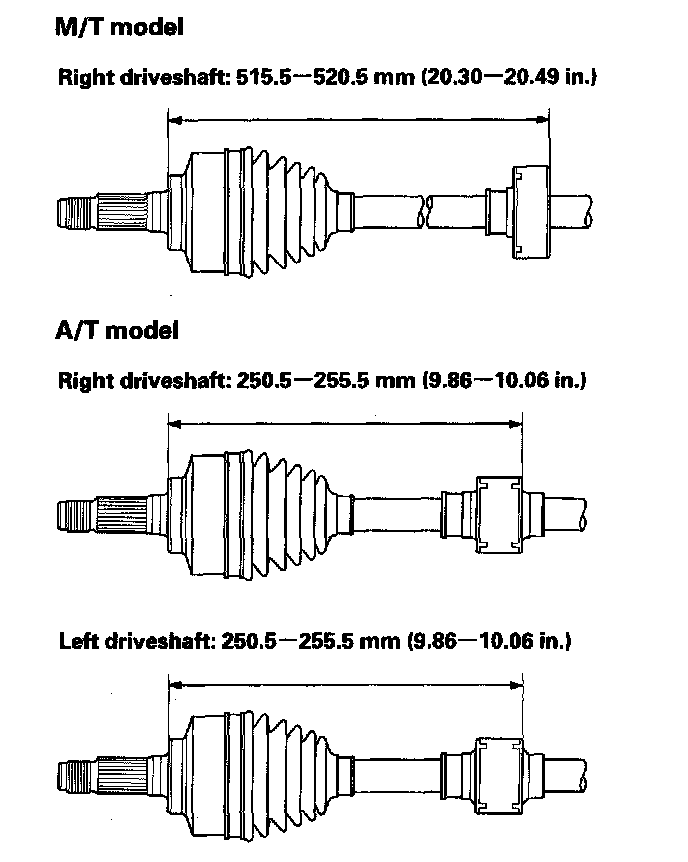

4. Adjust the position of the new dynamic damper to the figure shown in the illustration.

NOTE: For A/T models, be careful not to mix-up the dynamic dampers. The right and the left dynamic dampers are different.





5. Install a dynamic damper band.
6. Install the inboard joint.
