Intermediate Shaft Disassembly

Intermediate Shaft Disassembly

Special Tools Required
^ Half shaft base 07NAF-SR30101
^ Oil seal driver 07947-SBOO100

NOTE: A/T model only.

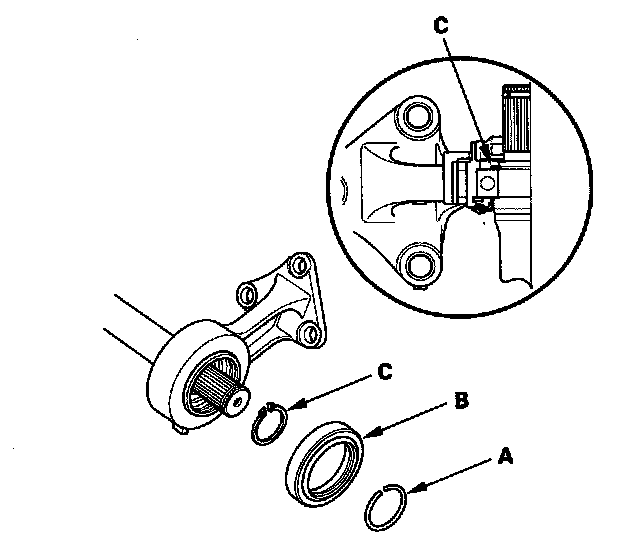

1. Remove the set ring (A), the outer seal (B), and the external snap ring (C).

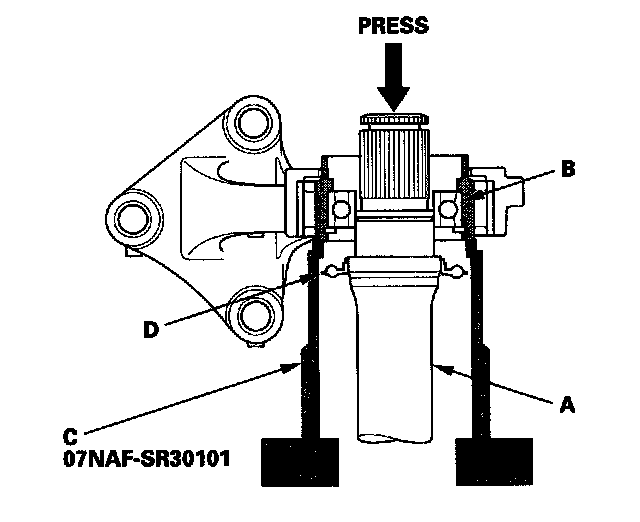

2. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using a press and the half shaft base (C). Be careful not to damage the metal rings (D) on the intermediate shaft during disassembly.

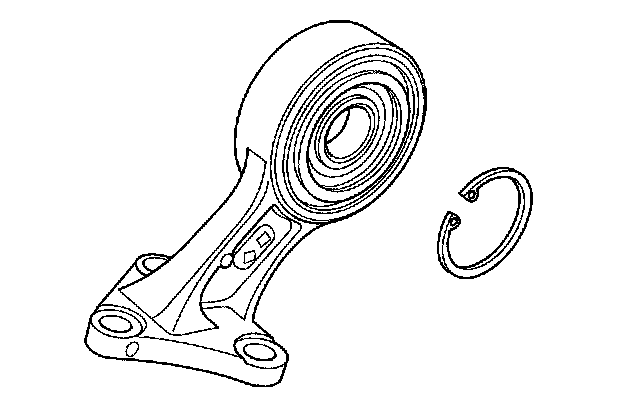

3. Remove the internal snap ring.

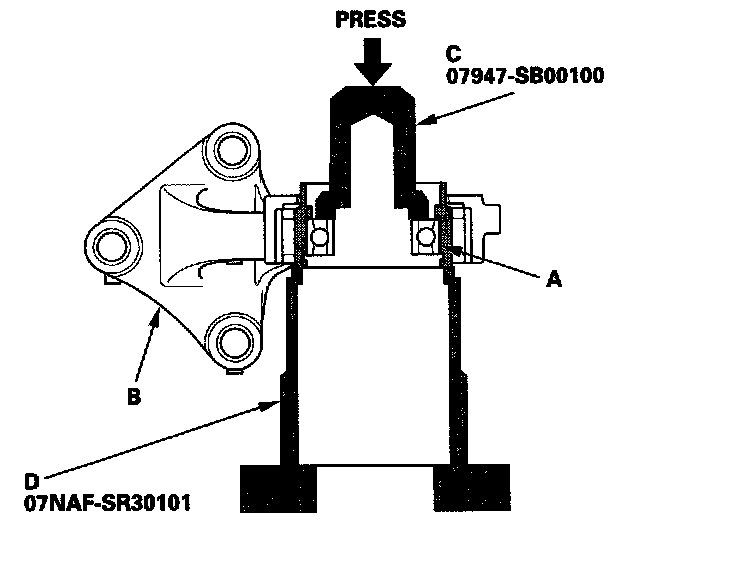

4. Press the intermediate shaft bearing (A) out of the bearing support (B) using the oil seal driver (C) and half shaft base (D) and a press.
