Home >> Honda >> 2008 >> Fit L4-1.5L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Sensors and Switches - A/T >> Fluid Pressure Sensor/Switch >> Locations

Fluid Pressure Sensor/Switch: Locations

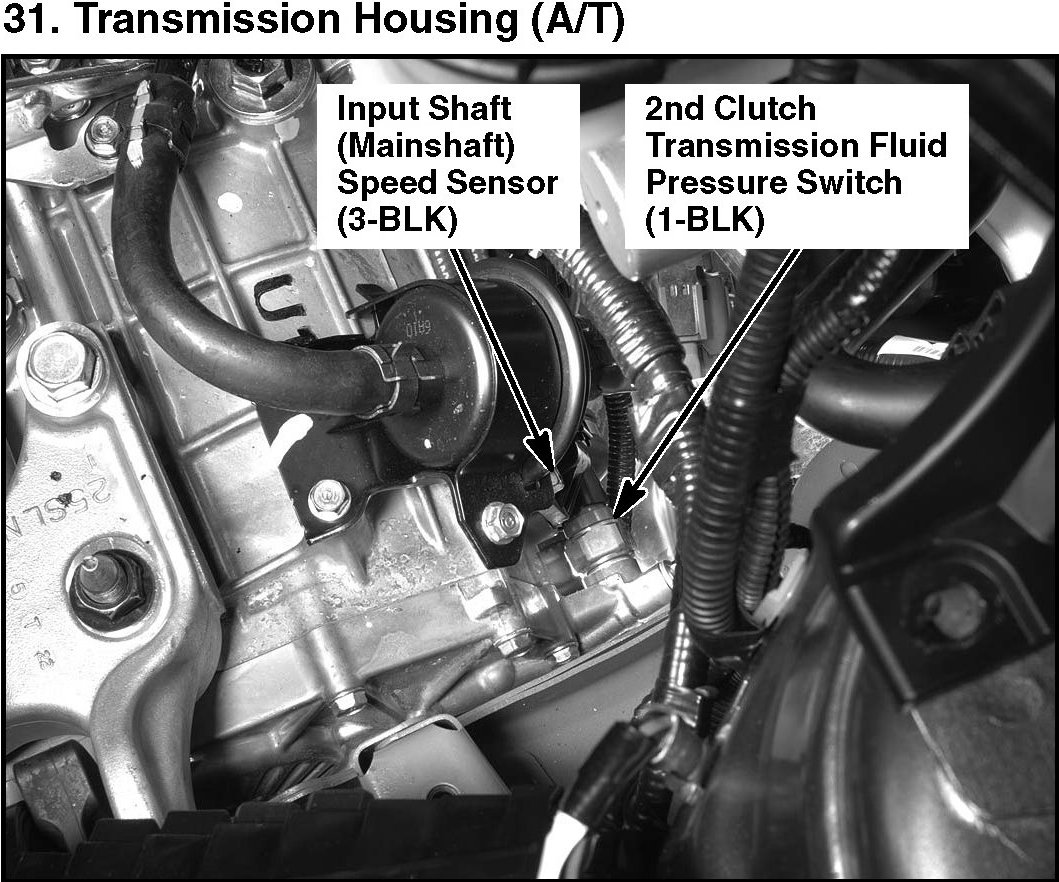

31. Transmission Housing (A/T):

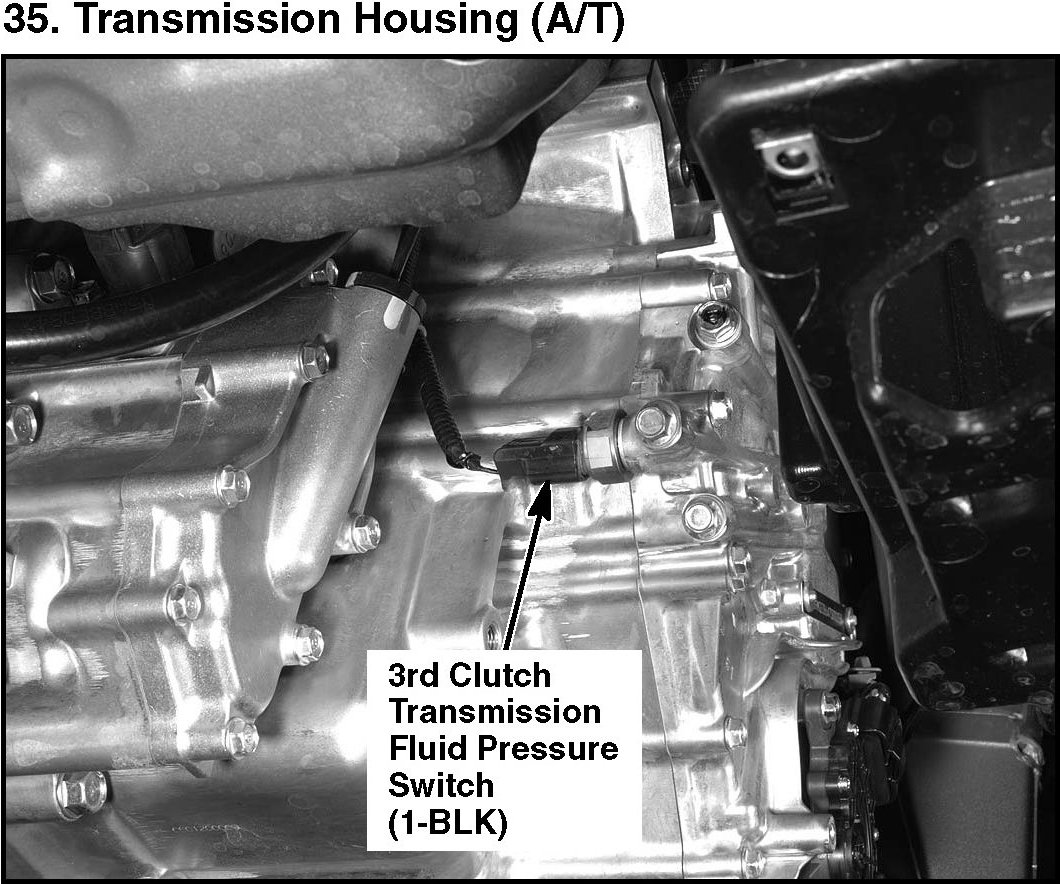

35. Transmission Housing (A/T):

Automatic Transmission Component Location Index:
