Accessory Power Socket Circuit Diagram
Accessory Power Socket Circuit Diagram

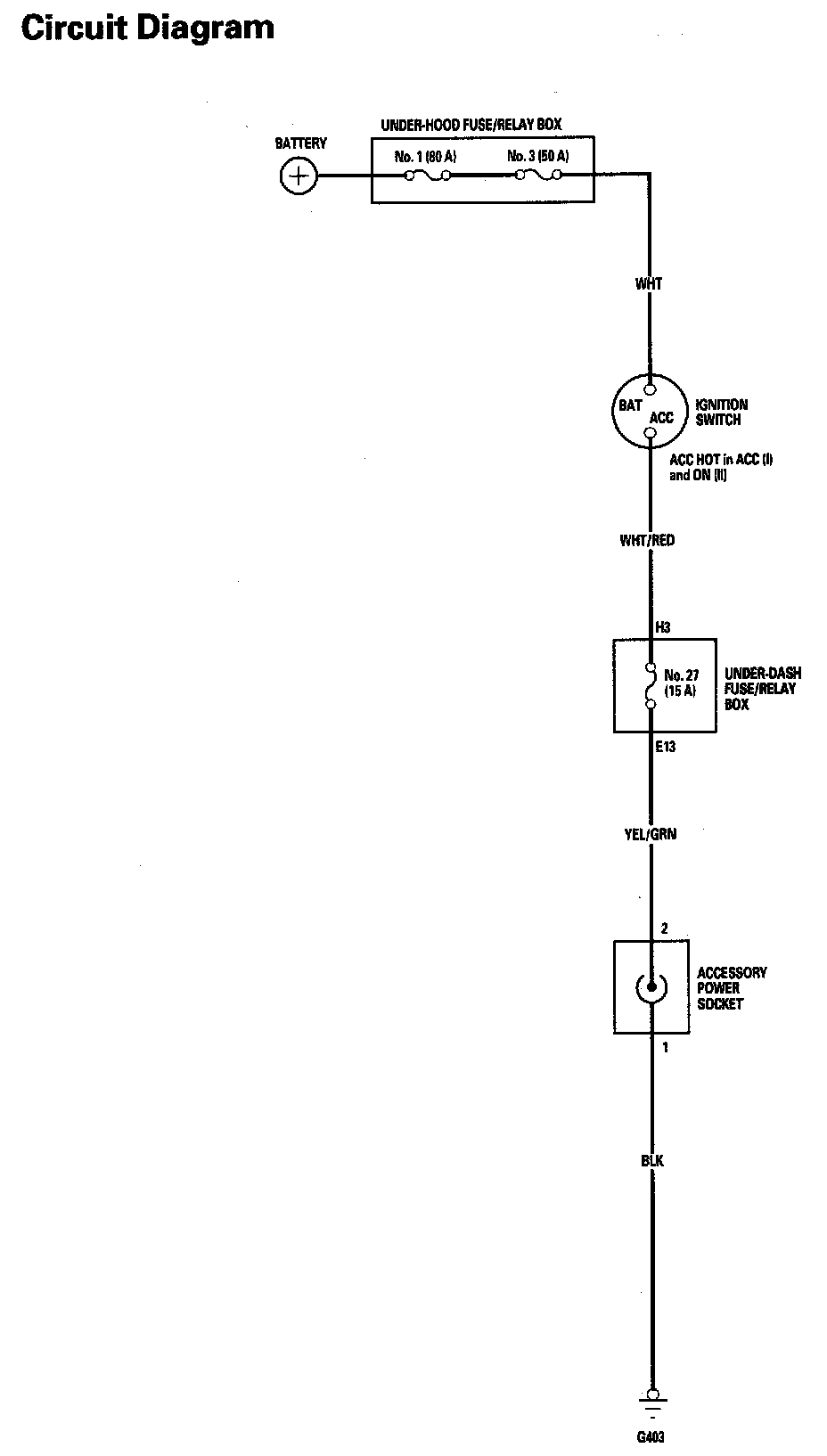

Accessory Power Socket Circuit Diagram:
