Seat Belt Buckle Switch: Diagrams

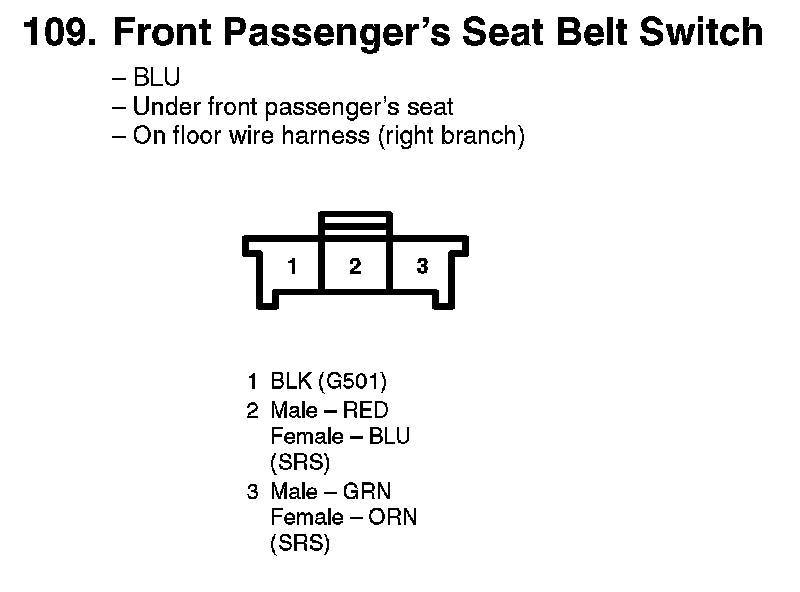

109. Front Passenger's Seat Belt Switch:

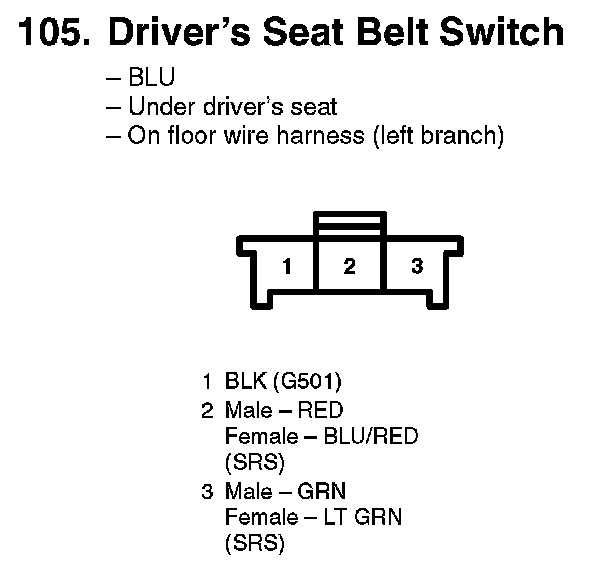

105. Driver's Seat Belt Switch:
