Positive Crankcase Ventilation Valve: Service and Repair

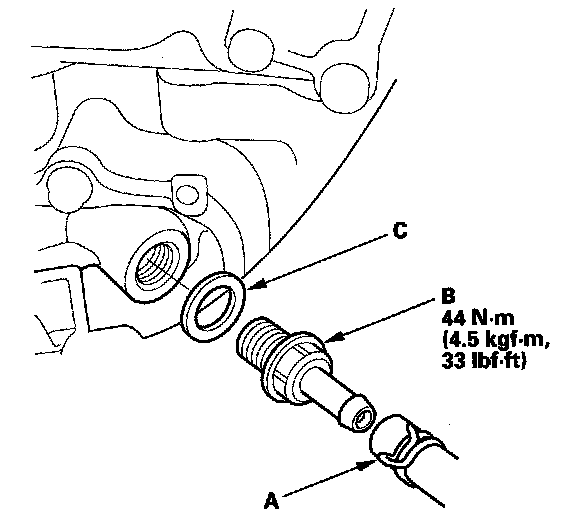

PCV Valve Replacement1. Remove the intake manifold.
2. Disconnect the PCV hose (A).
3. Remove the PCV valve (B).
4. Install the parts in the reverse order of removal with a new washer (C).
1. Remove the intake manifold.
2. Disconnect the PCV hose (A).
3. Remove the PCV valve (B).
4. Install the parts in the reverse order of removal with a new washer (C).
