Electrical Diagrams

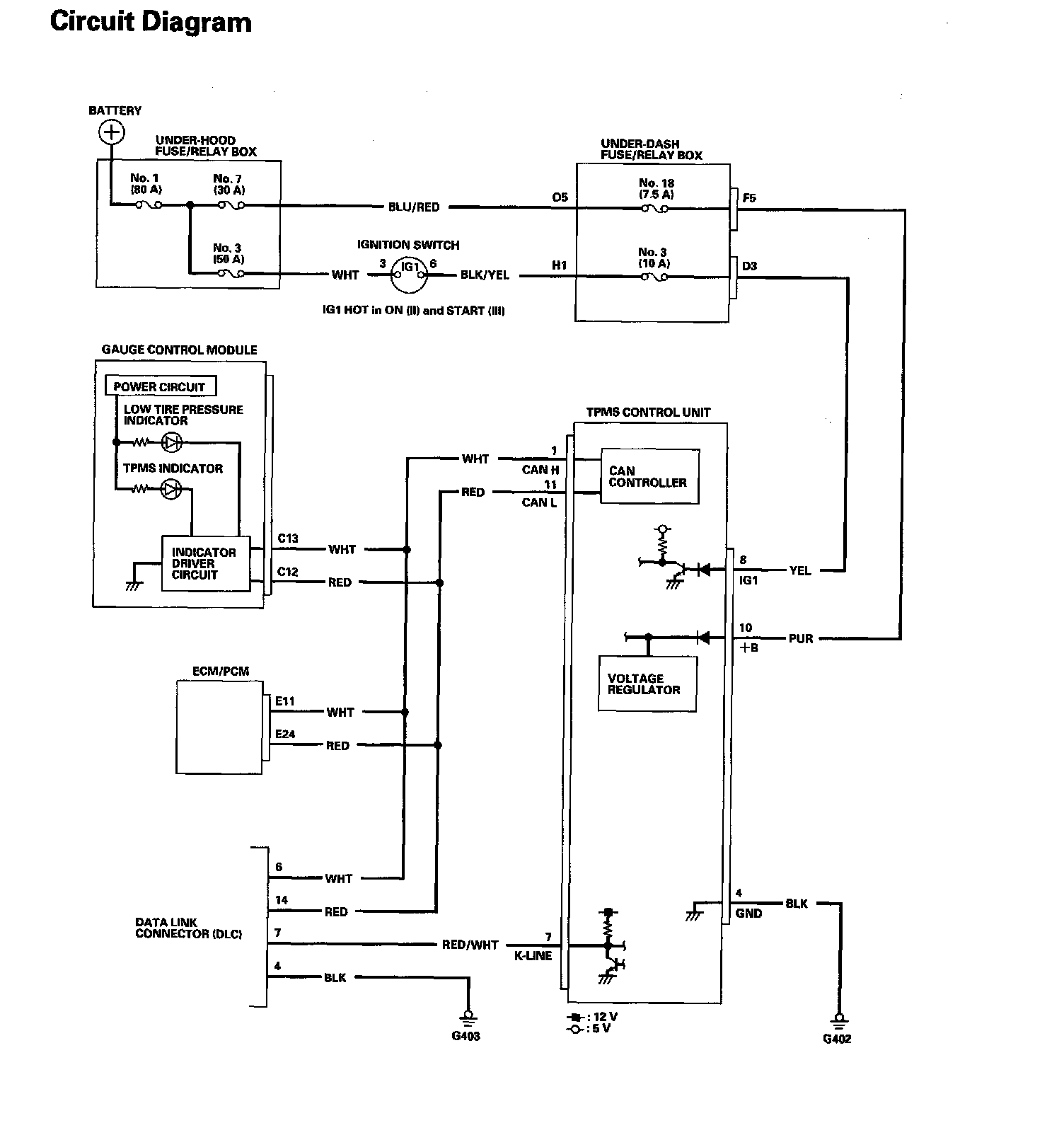

Tire Pressure Monitoring System Circuit Diagram ( Part 1):

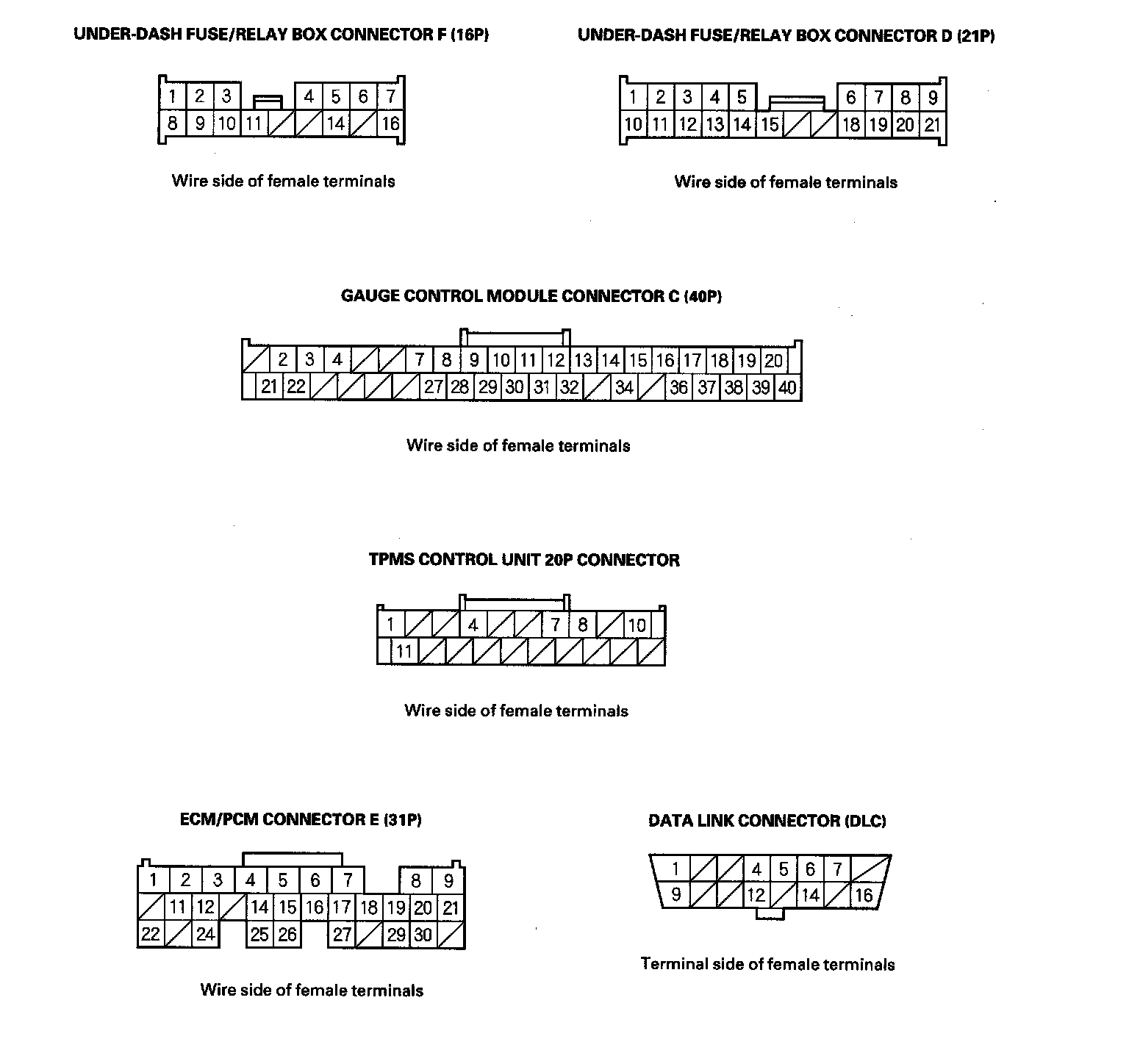

Tire Pressure Monitoring System Circuit Diagram ( Part 2):
