Removal and Replacement

Dust and Pollen Filter Replacement

1. Remove the glove box.

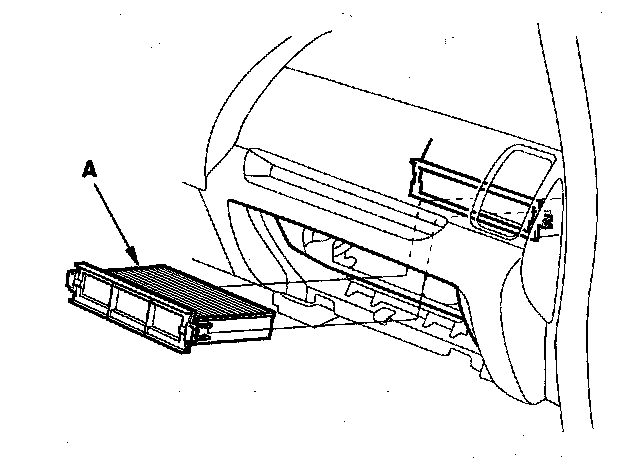

2. Remove the filter lid (A) from the blower unit.

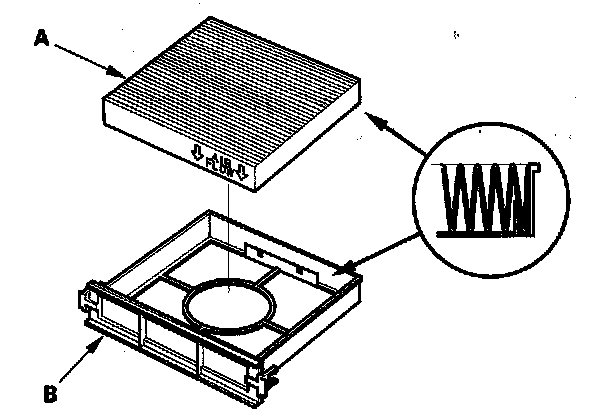

3. Remove the filter (A) from the filter lid (B), and replace it.






4. Install the filter in the reverse order of removal.
