Side Engine Mount Replacement

Side Engine Mount Replacement

Removal

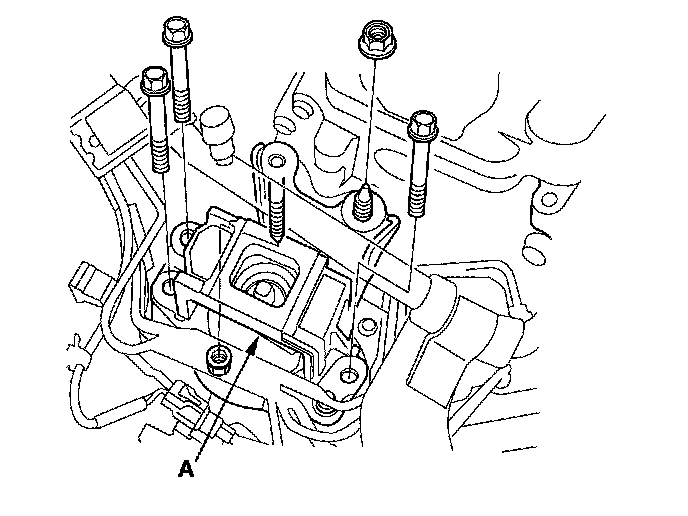

1. Remove the side engine mount/bracket assembly (A).





Installation

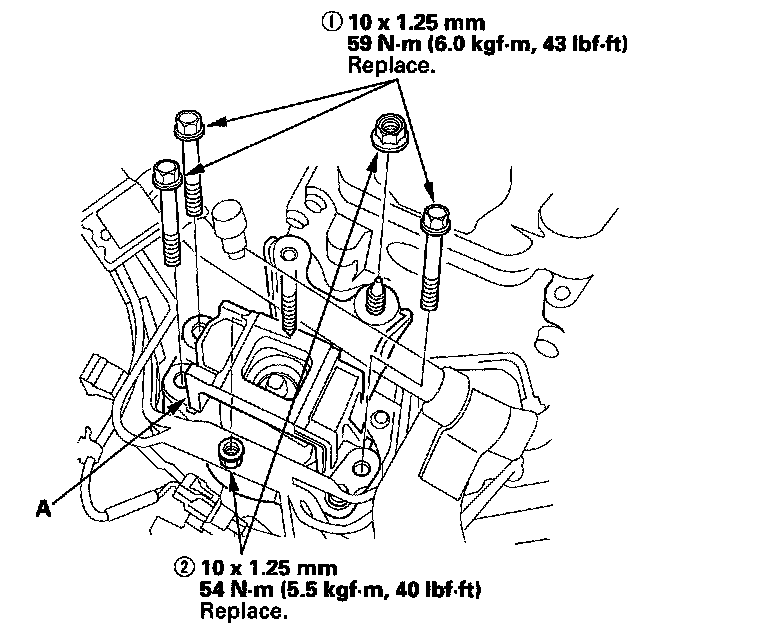

1. Install the side engine mount/bracket assembly (A), then tighten the mounting bolts and nuts in the numbered sequence shown.

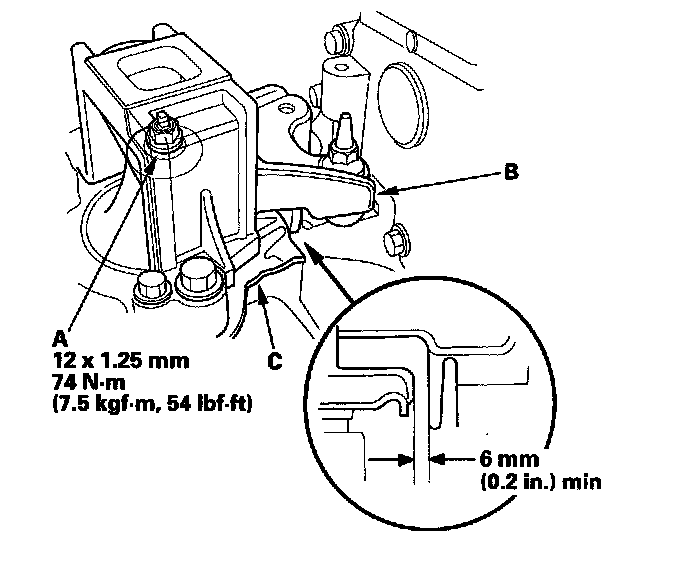

2. With the nut (A) loosened, move the upper bracket (B) to the side engine mount (C) until the upper bracket contacts the stud bolt, then tighten the nut. Check mount-to-bracket clearance. They should be 6 mm (0.2 in.) and more. If the clearance out of tolerance, adjust the clearance.
