Home >> Honda >> 2008 >> Fit L4-1.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Splice and Junction Connector Details >> Diagram 15-9a

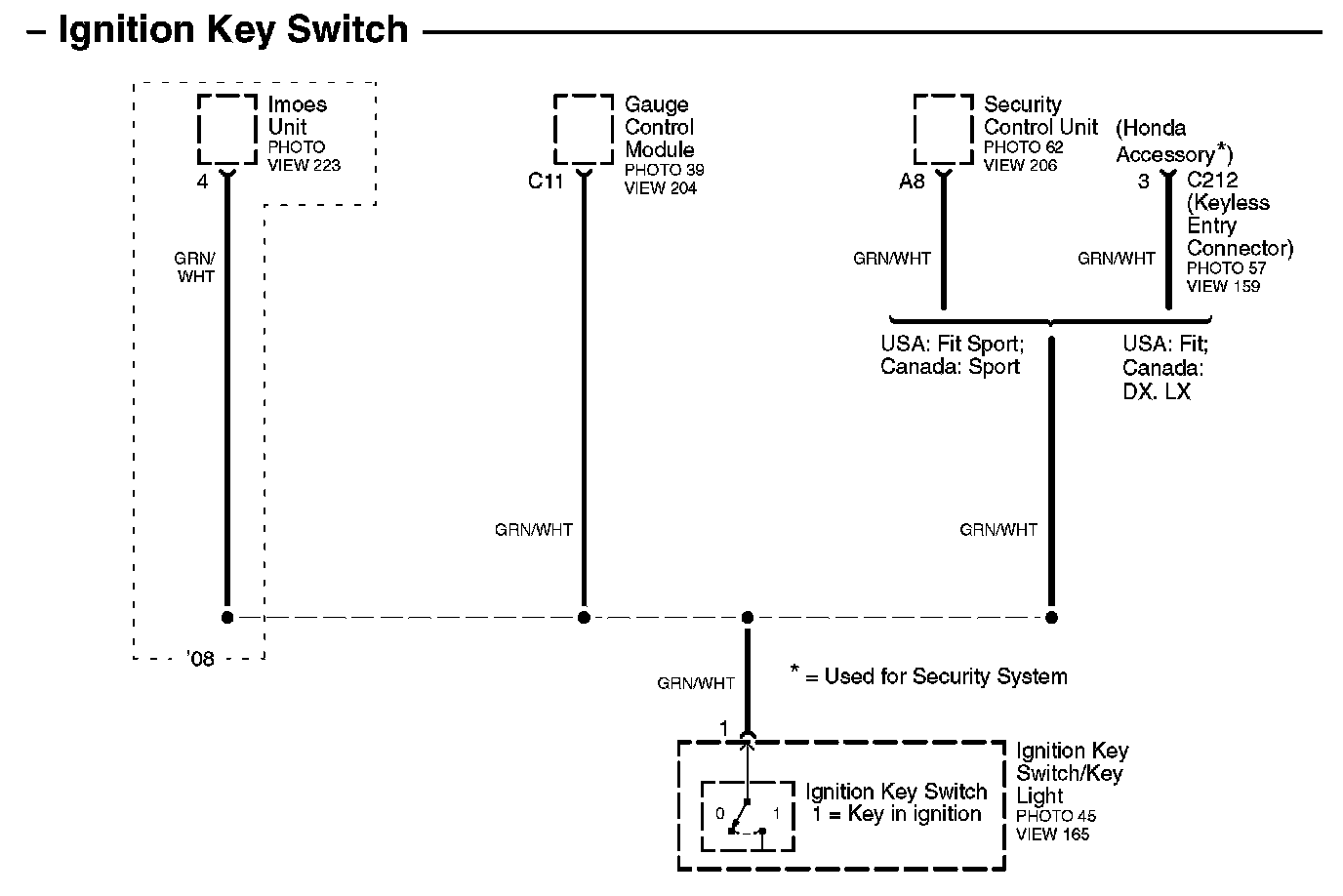

Diagram 15-9a

Diagram 15-9a:
