Spoiler: Service and Repair

Tailgate Spoiler Replacement

Special Tools Required

KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

For Some Models

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to scratch the body.

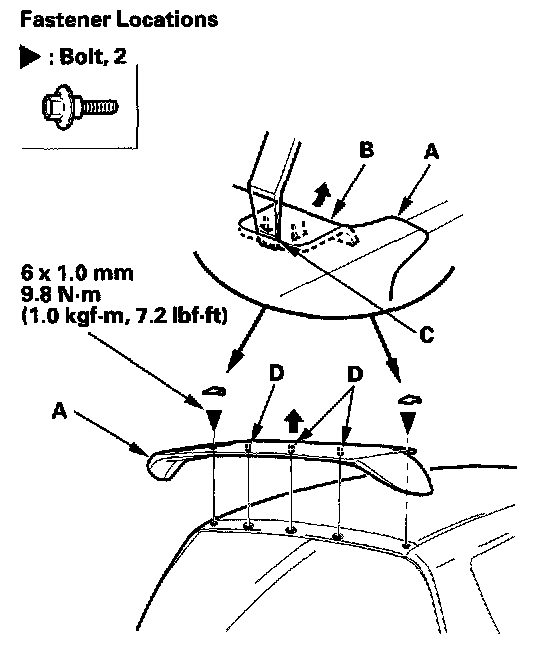

1. Remove the tailgate spoiler (A).
1. Remove the lids (B) from both sides by prying up at the notches (C).
2. Remove the bolts.
3. Lift the spoiler up, then remove it.

2. Install the spoiler in the reverse order of removal. When installing, three locating bolts (D) should be fully inserted into grommets on the tailgate.
