Speaker: Service and Repair

Speaker Replacement

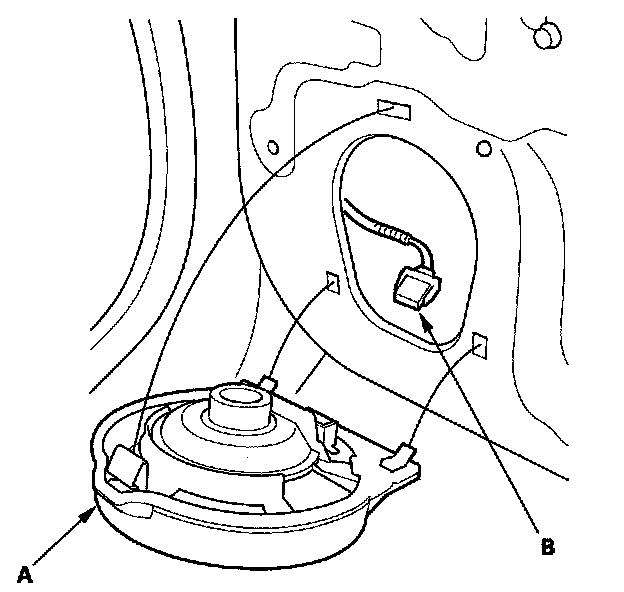

Door Speaker

1. Remove the door panel.
2. Pull the top of the speaker (A) straight out to release the upper clip, then lift the speaker straight up to release the lower clips.






3. Disconnect the 2P connector (B), and remove the speaker.
4. Install the speaker in the reverse order of removal.

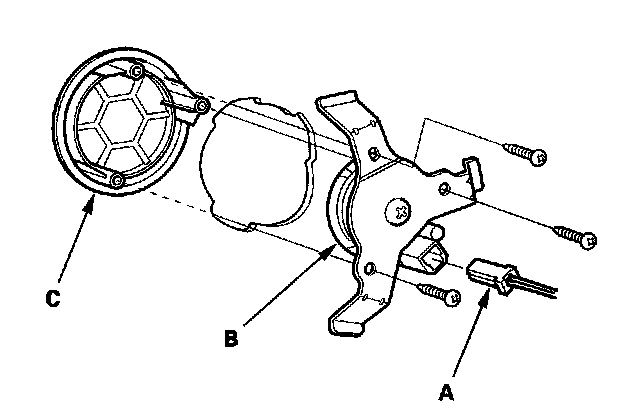

Tweeter

1. Remove the door panel.
2. Disconnect 2P connector (A) from the tweeter (B).






3. Remove the screws, then remove the tweeter and the tweeter grille (C).
4. Install the tweeter in the reverse order of removal.
