Antenna, Radio: Service and Repair

AM/FM Antenna Replacement

1. Pull down the rear portion of the headliner.

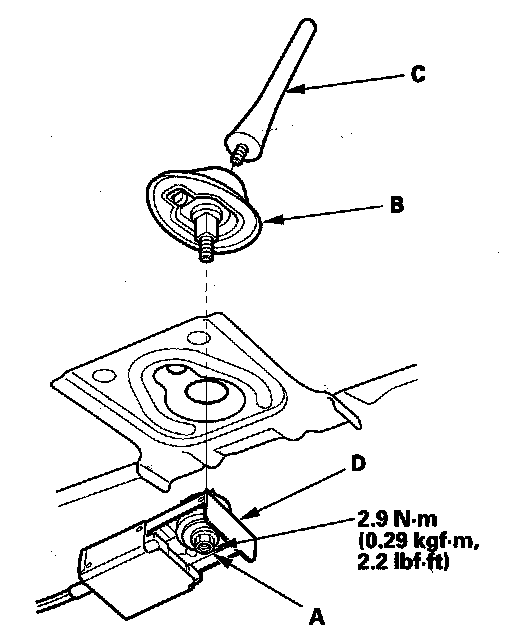

2. Loosen the mounting nut (A), then remove the AM/FM antenna (B) and antenna element (C) from the AM/FM antenna amplifier (D).






3. Install the AM/FM antenna in the reverse order of removal.
