Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 77

View 76-100: 77

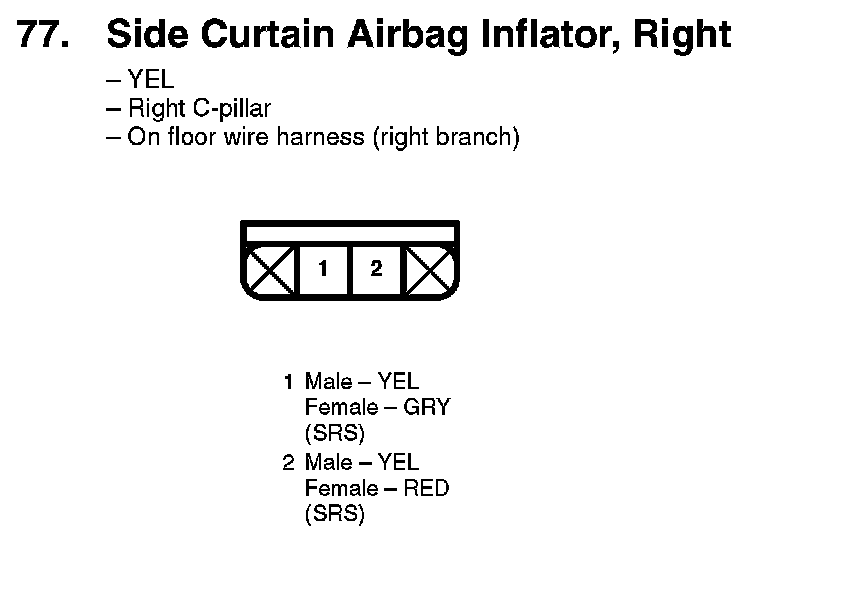

77. Side Curtain Airbag Inflator, Right:
