Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Crankshaft Position Sensor >> Diagrams

Crankshaft Position Sensor: Diagrams

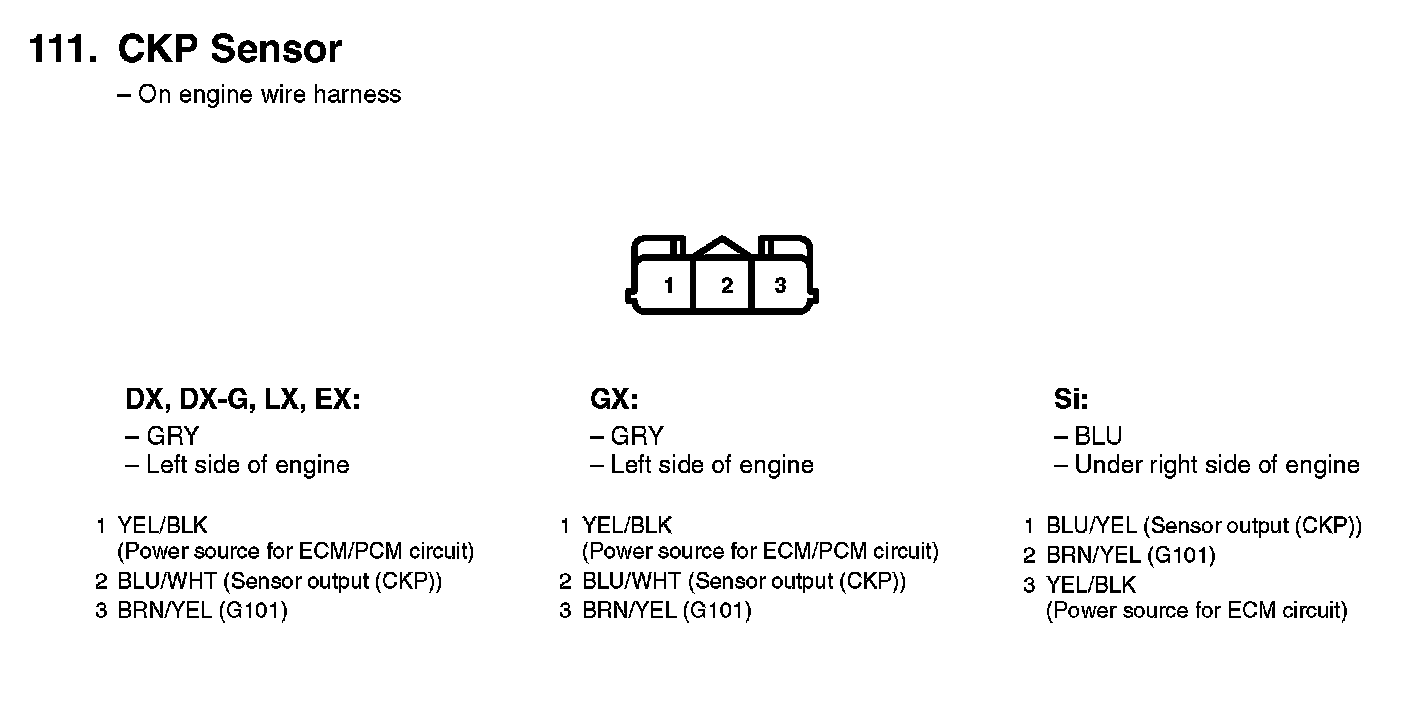

111. CKP Sensor:
