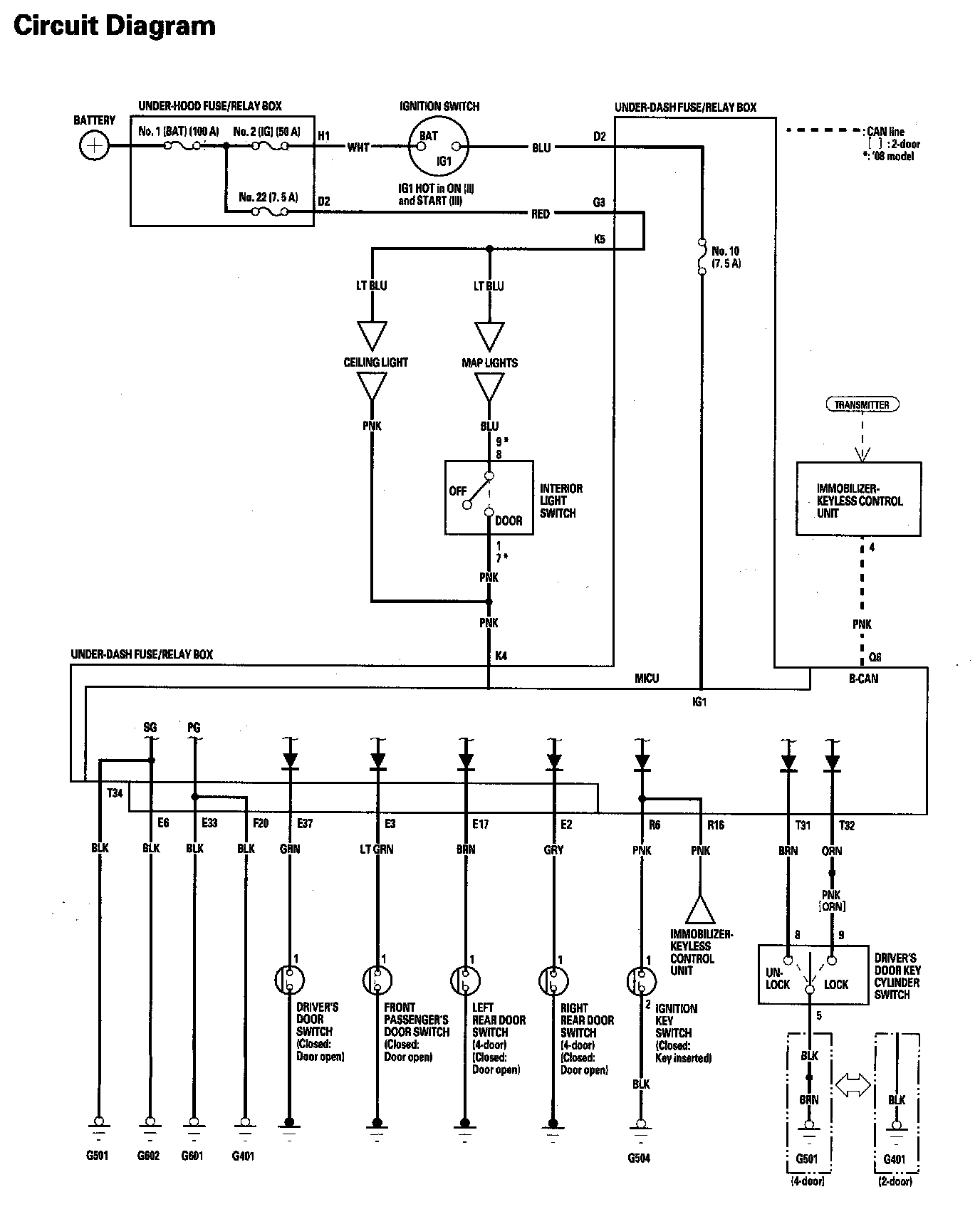

Entry Lights Control System Circuit Diagram
Entry Lights Control System Circuit Diagram
Entry Lights Control System Circuit Diagram:
