Power Mirrors Circuit Diagram
Power Mirrors Circuit Diagram

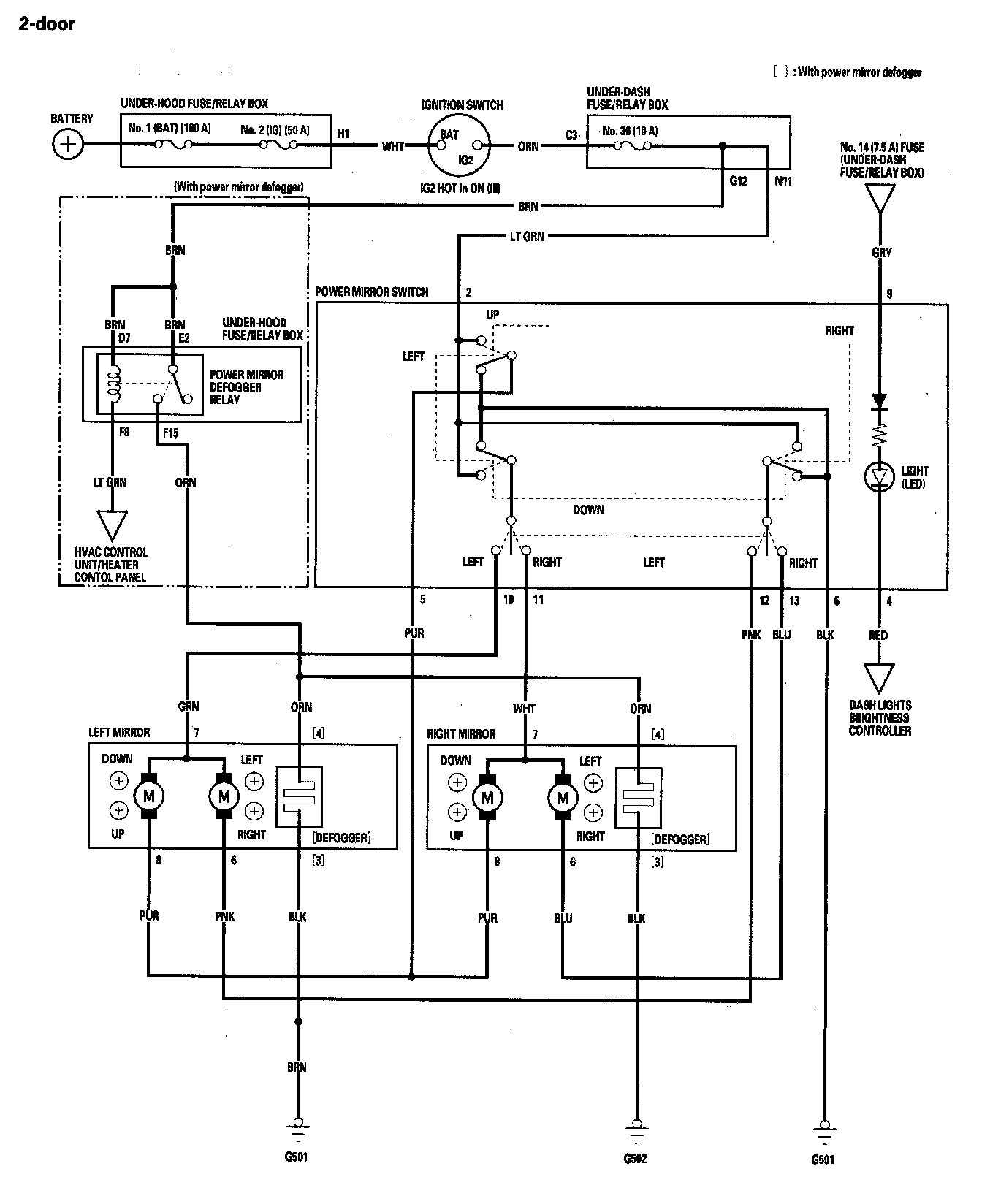

Power Mirrors Circuit Diagram Part 1:
Power Mirrors Circuit Diagram Part 2:
