Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 101-125 >> 104

View 101-125: 104

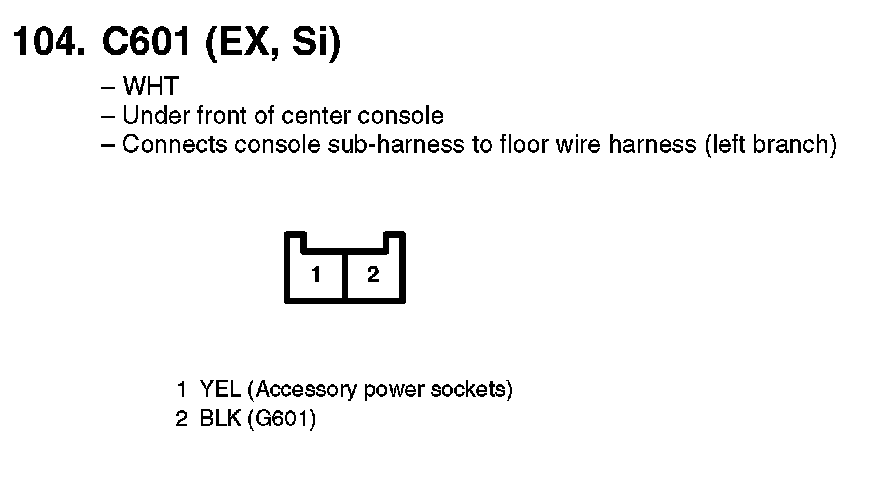

104. C601 (EX, Si):
