Voice Activation Microphone: Service and Repair

Microphone Replacement

1. Remove the navigation unit.
2. Remove the meter upper visor.

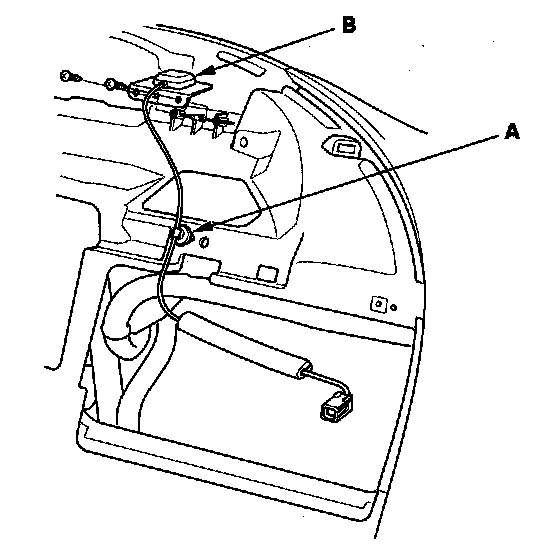

3. Remove the wire harness clip (A), screws and GPS antenna (B).






4. Install the antenna in the reverse order of removal.
