A/T Clutch Pressure Control Solenoid Valve A and B Replacement
A/T Clutch Pressure Control Solenoid Valve A and B Replacement1. Do the battery removal procedure.
2. Remove the air cleaner assembly.
3. Remove the 6 x 1.0 mm bolt securing the resonator bracket under the battery base bracket, and remove the battery base and battery base bracket in the engine compartment.

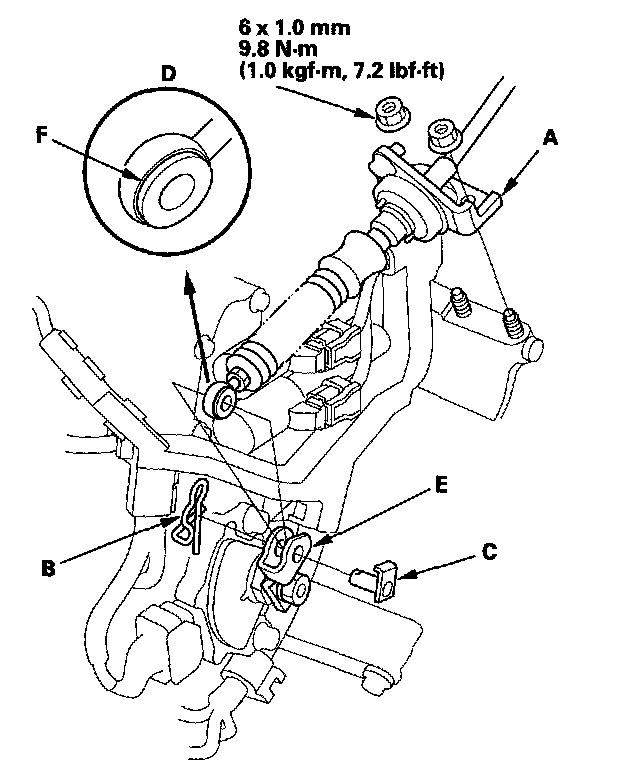

4. Remove the nuts securing the shift cable bracket (A).
5. Remove the spring clip (B) and control pin (C), then separate the shift cable end (D) from the control lever (E).
6. Check the bushing (F) in the shift cable end for proper fit and wear. If the bushing is loose or worn, replace the shift cable.

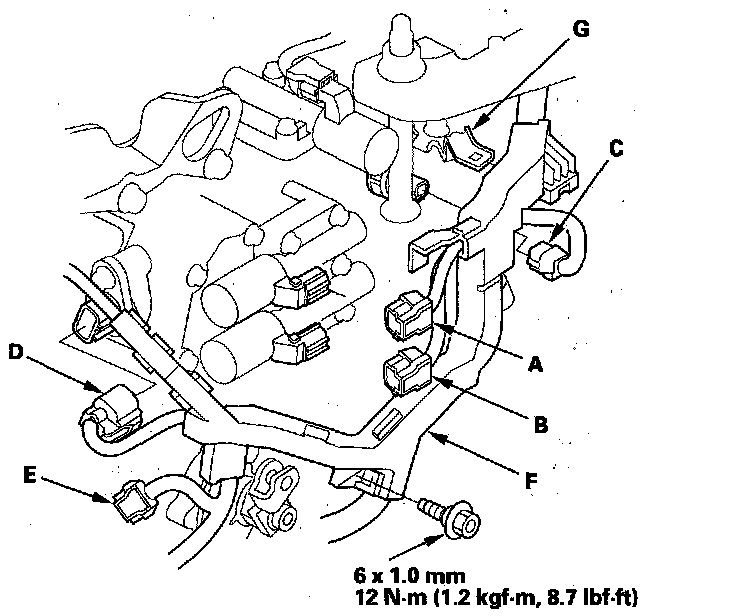

7. Disconnect the A/T clutch pressure control solenoid valve A connector (A), A/T clutch pressure control solenoid valve B connector (B), 4th clutch transmission fluid pressure switch connector (C), shift solenoid harness connector (D), and input shaft (mainshaft) speed sensor connector (E).
8. Remove the bolt securing the harness cover (F), and remove the harness cover from its bracket (G).

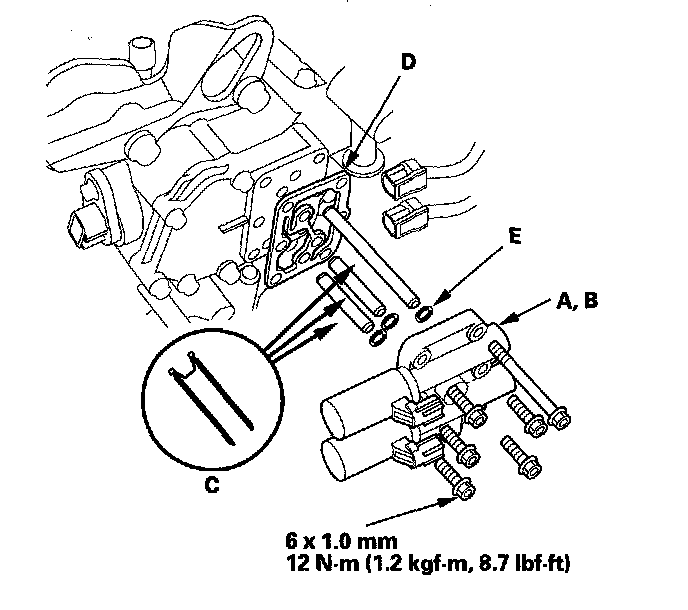

9. Remove the A/T clutch pressure control solenoid valves A and B, ATF pipes (C), gasket (D), and O-rings (E).
10. Check the fluid passage of the A/T clutch pressure control solenoid valve for dust or dirt, and clean the passage.
11. Install the new solenoid valve body gasket on the solenoid valve cover, and install the ATF pipes with the filter end in the transmission housing. Install new O-rings over the ATF pipes.
12. Install A/T clutch pressure control solenoid valves A and B.
13. Install the harness cover on its bracket, and secure it with the bolt.
14. Check the connectors for rust, dirt, or oil, clean or repair if necessary, then connect the connectors securely.
15. Apply molybdenum grease to the hole in the bushing in the shift cable end. Attach the shift cable end to the control lever, then insert the control pin into the control lever hole through the shift cable end, and secure the control pin with the spring clip.
16. Secure the shift cable bracket with the nuts.
17. Install the battery base bracket and battery base, and secure the resonator bracket under the battery base bracket with the bolt.
18. Install the air cleaner assembly.
19. Do the battery installation procedure.
