Front Suspension

Stabilizer Bar Replacement

Special Tools Required
^ Frame positioning guide pin 070AG-SJAA10S
^ 2008 V6 attachment arm SIL02C000033 *
^ Front subframe adapter VSB02C000016 *
^ Engine support hanger, A and Reds AAR-T1256 *
^ Engine hanger balance bar VSB02C000019 *
* Available through the Honda Tool and Equipment Program, 888-424-6857.

1. Note these items during replacement:
^ Be sure to remove the steering wheel before disconnecting the steering joint. Damage to the cable reel can occur.
^ Lower the front subframe from the body, and replace the front stabilizer bar through the gap created by lowering the front subframe.

2. Do the battery terminal disconnection procedure.
3. Raise the vehicle, and support it with safety stands in the proper locations.
4. Remove the front wheels.
5. Remove the steering wheel.

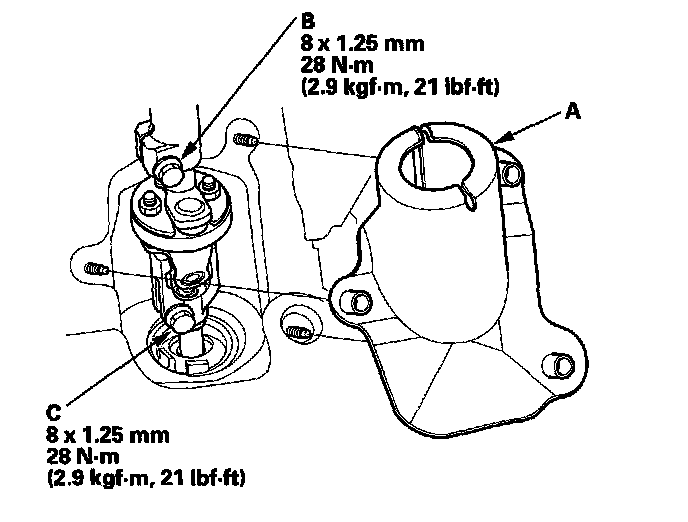

6. Remove the steering joint cover (A).





7. Loosen the steering joint upper bolt (B), and remove the steering joint lower bolt (C), then disconnect the steering joint from the pinion shaft.

NOTE:
^ If the center guide is in place and has not moved, leave it in place.
^ If the center guide has moved or been removed, discard it.

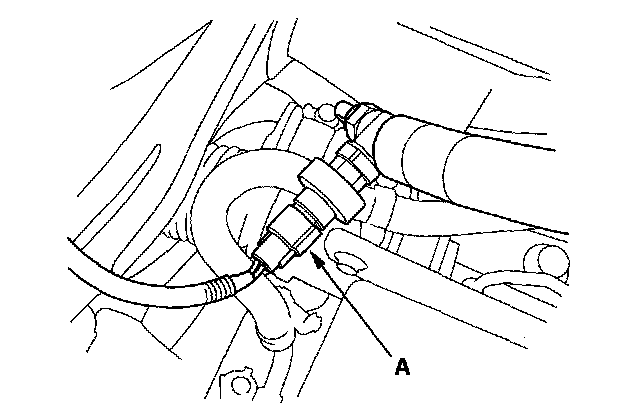

8. Disconnect the power steering pressure (PSP) switch connector (A).





9. Remove the power steering pump outlet hose mounting bolt (A).





10. Remove the front strut brace.
11. Remove the connector bracket from the front cylinder head; use the bracket bolt hole to attach the engine hanger balance bar front arm.

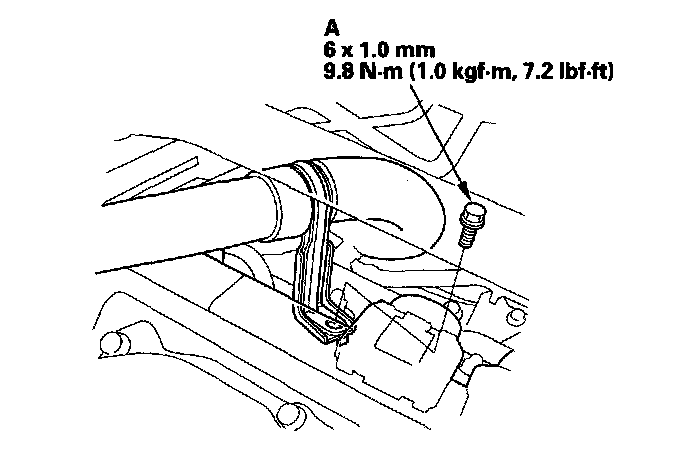

12. Remove the harness clamp bracket from the rear cylinder head; use the bracket bolt hole to attach the engine hanger balance bar rear arm.

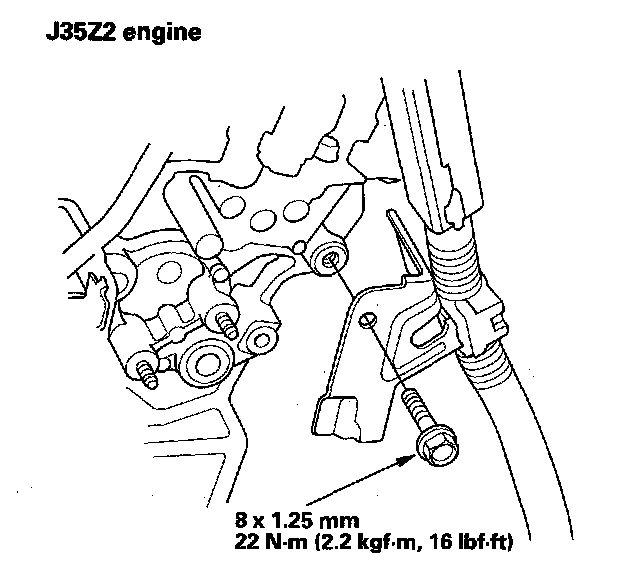

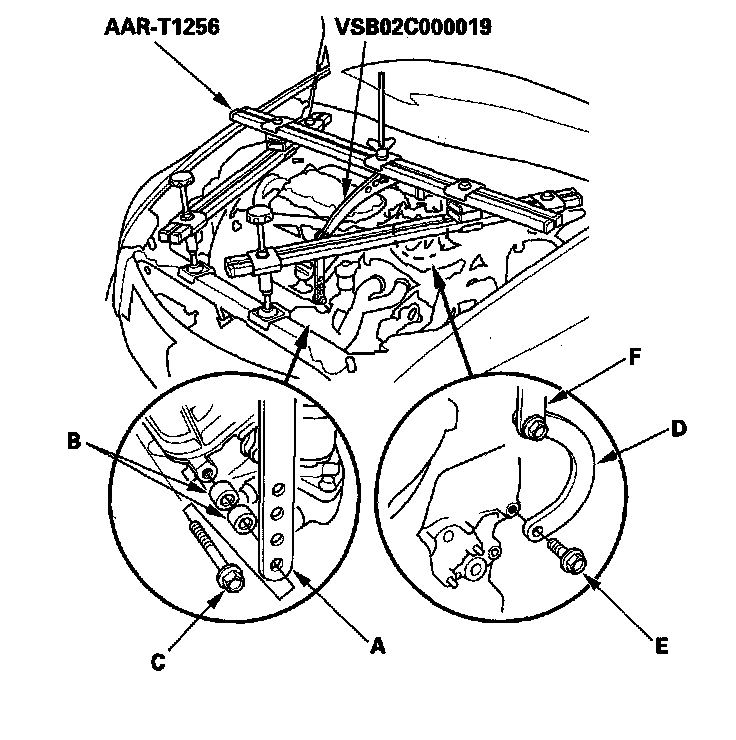

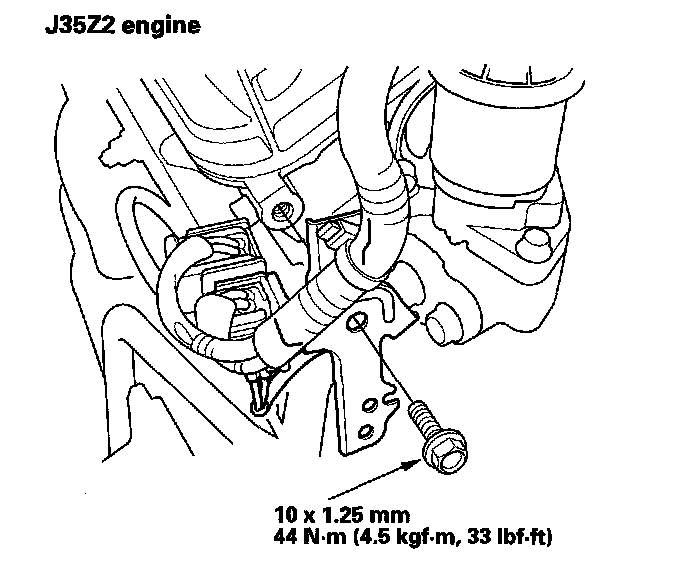

13. Lift and support the engine with engine support hanger (AAR-T1256) and engine hanger balance bar (VSB02C000019). Attach the front arm (A) to the front cylinder head with several spacers (B) and the bolt (10 x 1.25 mm) (C). Attach the 2008 V6 attachment arm (SIL02C000033) (D) to the rear cylinder head and the bolt (8 x 1.25 mm) (E), then attach the rear arm (F) to the 2008 V6 attachment arm.

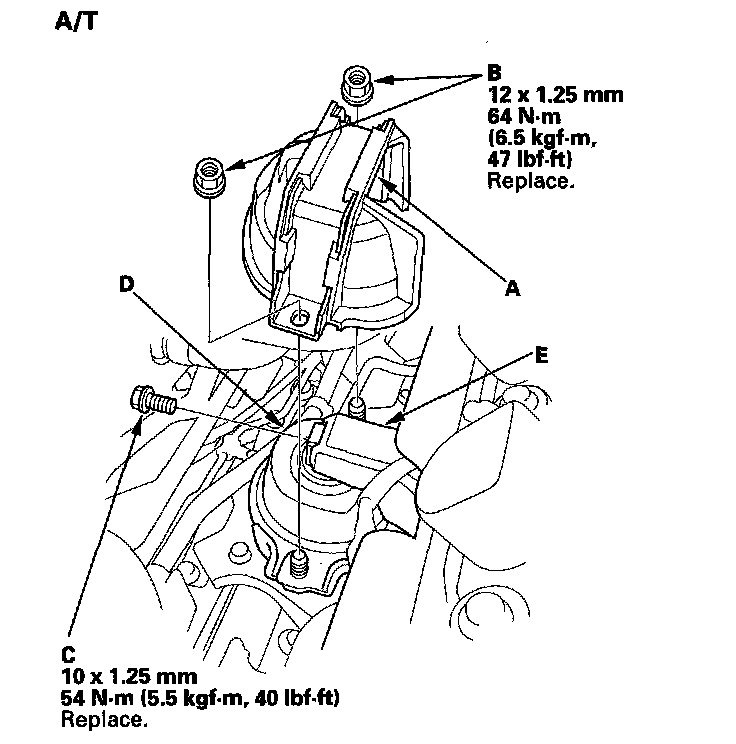

14. A/T: Remove the rear engine mount stop (A).

NOTE: Use new nuts (B) during reassembly.

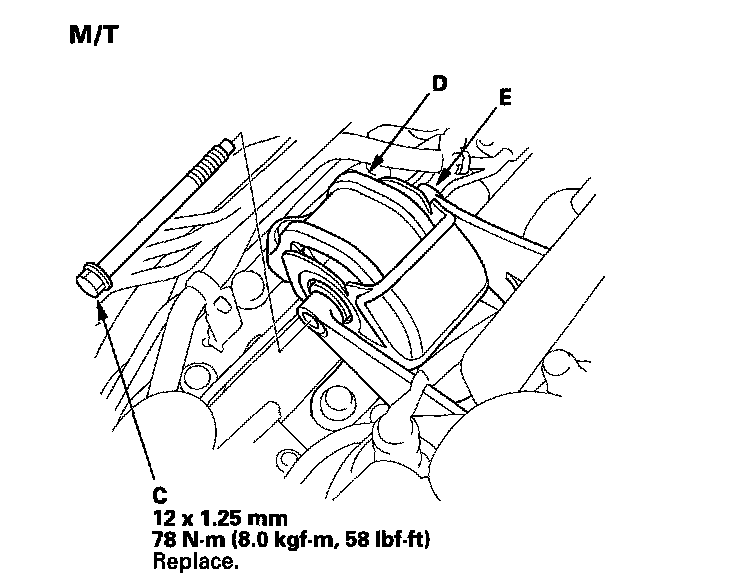

15. Remove the engine mount bolt (C) from the rear engine mount (D) and the rear engine mount bracket (E).

NOTE: Use a new engine mount bolt during reassembly.

16. Raise the vehicle on the lift to full height.
17. Remove the front splash shield.

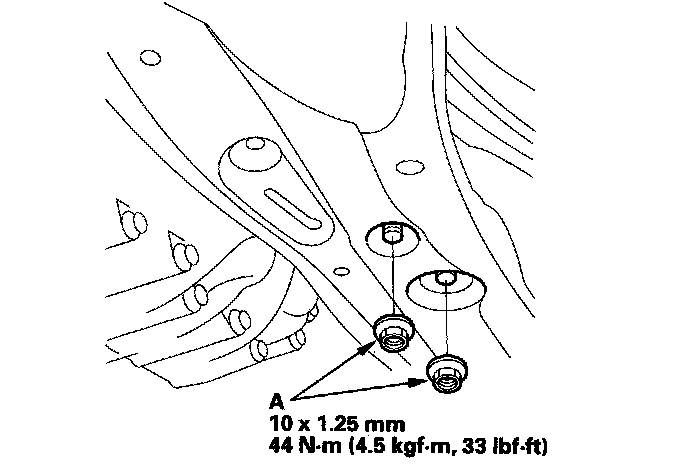

18. Remove the nuts (A) securing the lower transmission mount.

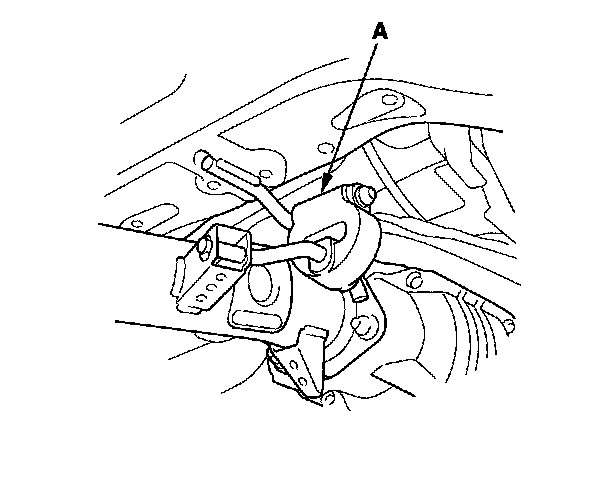

19. Remove the exhaust pipe A hanger (A) from the front subframe.

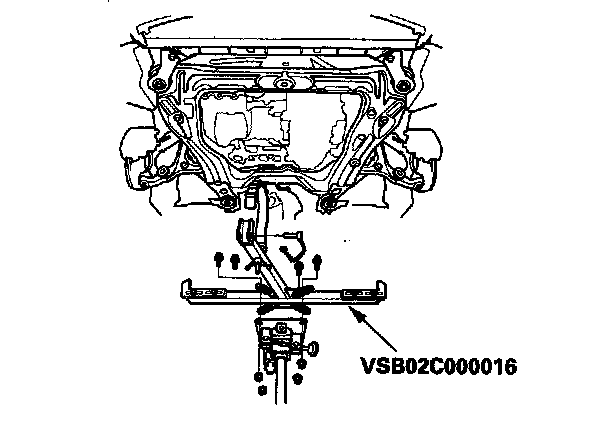

20. Attach the front subframe adapter (VSB02000016) to the subframe, hang the belt of the subframe adapter over the front of the subframe, then secure the belt with its stop.





21. Raise the jack, line up the slots in the front subframe adapter arms with the bolt holes on the jack base, then securely attach them with four bolts.
22. Remove the front subframe mounting bolts (A) on both sides of the middle mount.

NOTE: Use new mounting bolts during reassembly.





23. Disconnect both sides of the stabilizer link from the stabilizer bar.

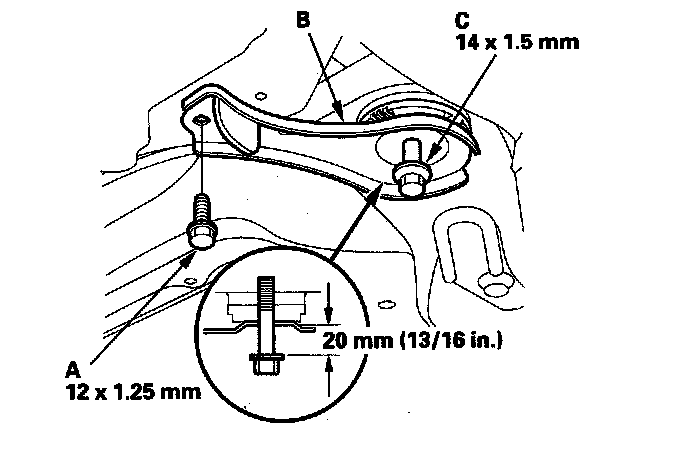

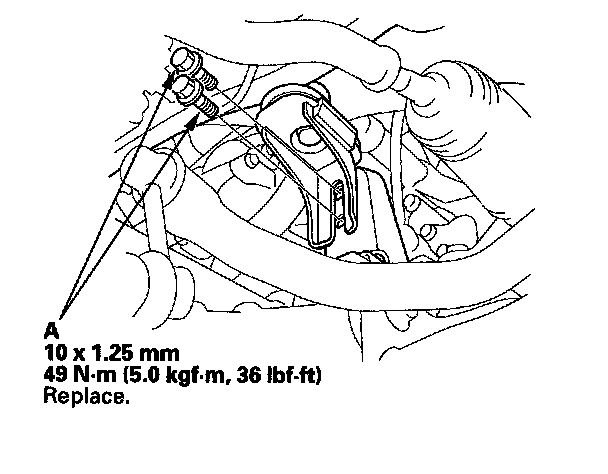

24. Remove the flange bolts (A) on both sides of the front subframe front bracket (B).





25. Loosen the front side of the front subframe mounting bolts (C) until there is 20 mm (13/16 in.) distance between the bolt seat and the mounting surface. Do not loosen the mounting bolts more than necessary.

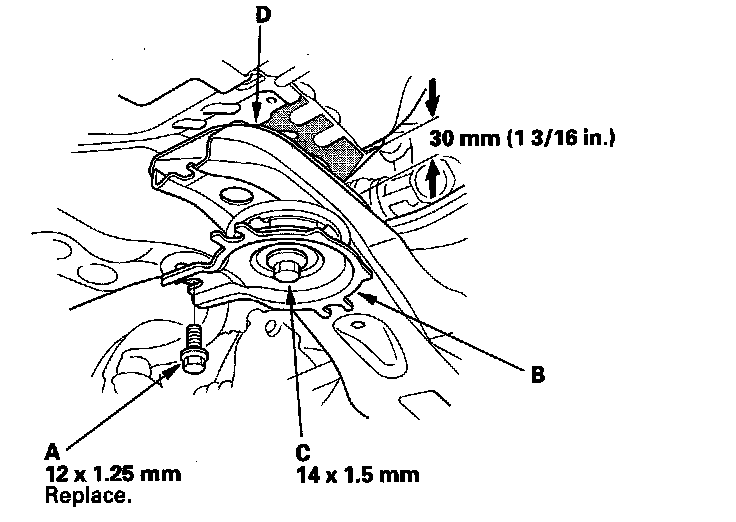

26. Remove the flange bolts (A) on both sides of the front subframe rear bracket (B).





27. Loose the rear side of the front subframe mounting bolts (C) until there is 30 mm (1 3/16 in.) distance between the bolt seat and the mounting surface. Do not loosen the mounting bolts more than necessary.
28. Lower the transmission jack with the front subframe adapter slowly until the front subframe (D) has dropped about 30 mm (1 3/16 in.).

NOTE: Do not try to lower the front subframe beyond the loosened subframe mounting bolts clearance.

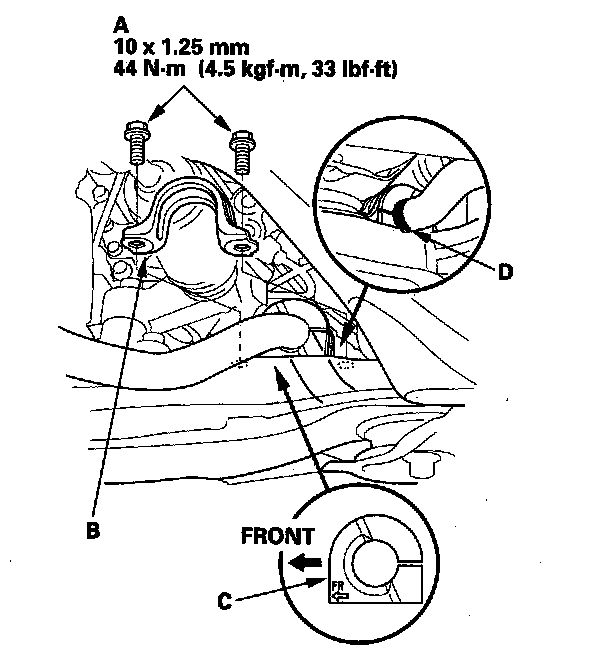

29. Remove the flange bolts (A) and the bushing holders (B), then remove the bushings (C).

NOTE: During installation, align the paint marks (D) on the stabilizer bar with the side of the bushings.





30. Move the stabilizer bar toward the passenger's side, and remove the stabilizer bar.
31. Install the stabilizer bar.

NOTE:
^ Note the right and left direction of the stabilizer bar.
^ Note the direction of installation for the bushings.

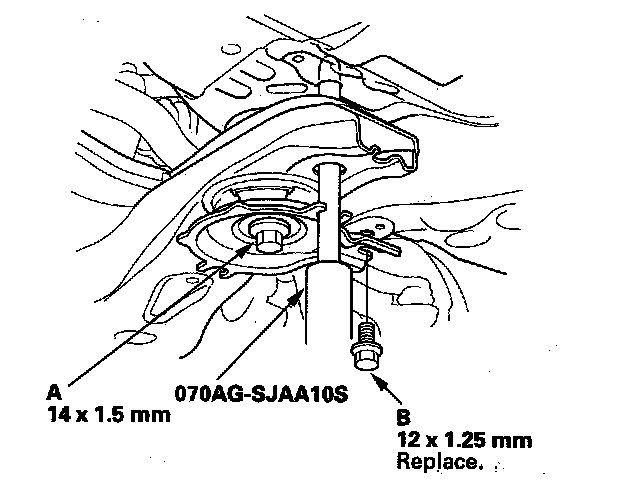

32. Align the front subframe using the frame positioning guide pin. Vertically install the frame positioning guide pin, and align the right-rear corner of the front subframe and vehicle frame holes, then loosely tighten the subframe mounting bolt (A) until the front subframe contacts the body frame.





33. Loosely tighten the left-rear subframe mounting bolt using the same procedure as the right-rear with the frame positioning guide pin.
34. Loosely install the new 12 mm flange bolts (B) to the subframe rear bracket.

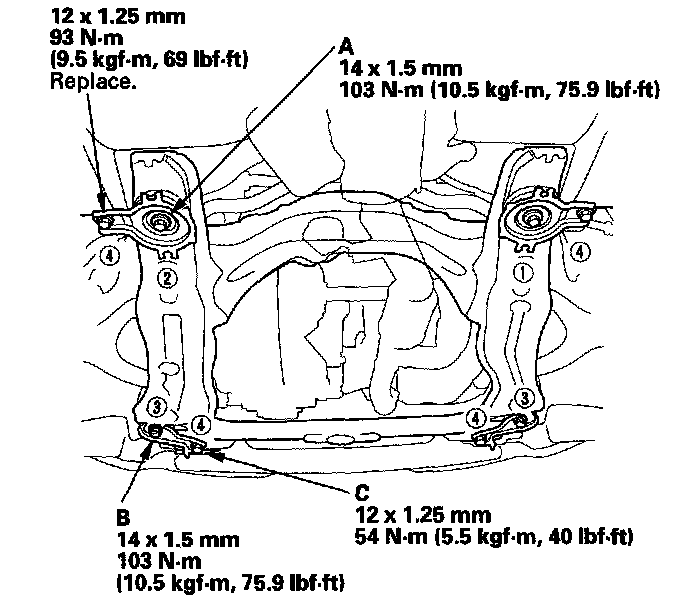

35. Torque the subframe mounting bolts to the specified torque values starting with the right-rear bolt. Use the frame positioning guide pin when tightening the rear side bolts (A).

NOTE:
^ Torque the bolts in the sequence shown.
^ Before tightening the front side subframe mounting bolts (B), raise the jack and loosely install the 12 mm flange bolts (C) to align the subframe front bracket.





36. Check all of the front subframe mounting bolts, and retighten if necessary.
37. Install all of the removed parts in the reverse order of removal, and note these items:
^ Refer to stabilizer link removal/installation to connect the stabilizer bar to the links.
^ If the center guide is in place, use it to determine the steering installation angle.
^ If the center guide is gone, check the steering joint installation angle.
^ Check the steering wheel installation.
^ When connecting the rear engine mount to the rear engine mount bracket, first lightly tighten the mounting bolt, then remove the engine support hanger, and tighten it to the specified torque value.
^ Before installing the wheel, clean the mating surfaces of the brake disc and inside of the wheel.

38. Check the wheel alignment, and adjust it if necessary.
39. Do the battery terminal reconnection procedure, then turn the ignition switch to ON (II) and check that the SRS indicator should come on for about 6 seconds and then go off.
