Front Seat Belt Replacement

Front Seat Belt Replacement

Front Seat Belt Buckle - 4-door Passenger's Seat (4-way Power Seat)

1. Do the battery terminal disconnection procedure, then wait at least 3 minutes before beginning work.
2. Remove the front seat.

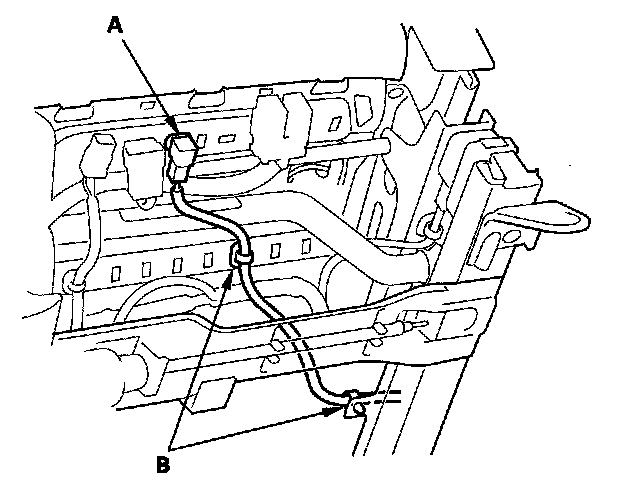

3. Lift up the front seat, then detach the seat switch connector (A), and detach the harness clips (B).

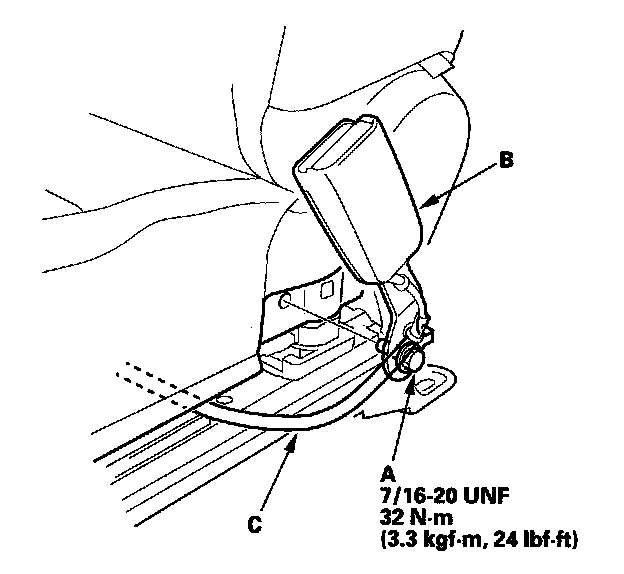

4. Remove the center anchor bolt (A), then remove the seat belt buckle (B).






5. Pull the seat belt switch harness (C) out through the space between the seat cushion and the seat track.
6. Install the buckle in the reverse order of removal, and note these items:

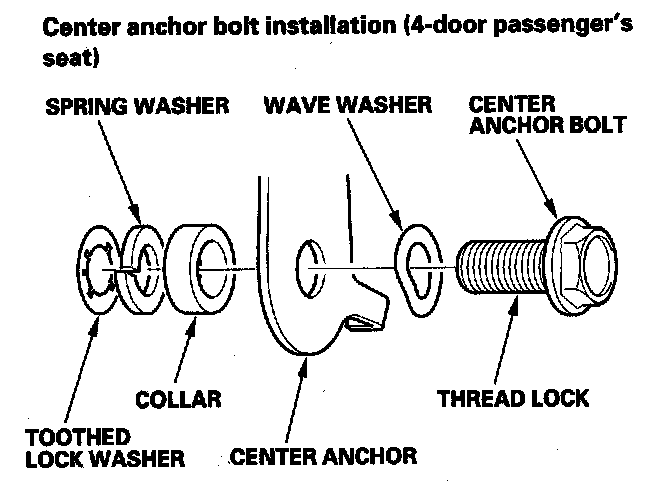

- Assemble the washers and the collar on the center anchor bolt as shown.
- Apply medium strength liquid thread lock to the center anchor bolt before reinstallation.
- Tighten the bolts by hand first, then tighten to specification with a torque wrench.
- Make sure the seat belt switch connector is plugged in properly.
- Do the battery terminal reconnection procedure.
- Check for any DTCs that may have been set during repairs, and clear them.
