Fog/Driving Lamp: Service and Repair

Fog Light Replacement

1. Remove the front bumper, and disconnect the connectors from the fog lights.

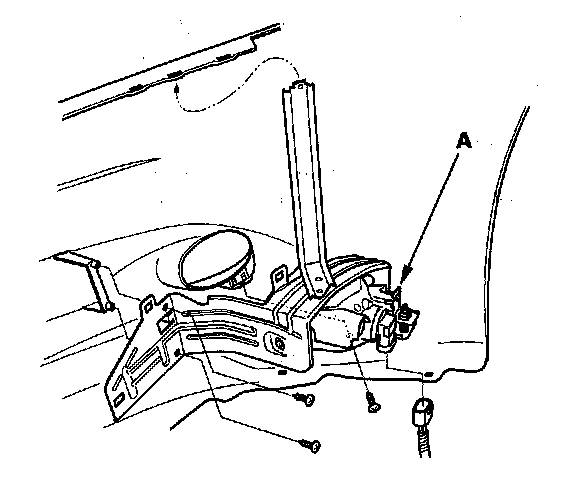

2. Remove the three screws, then remove the fog light (A) from the front bumper.

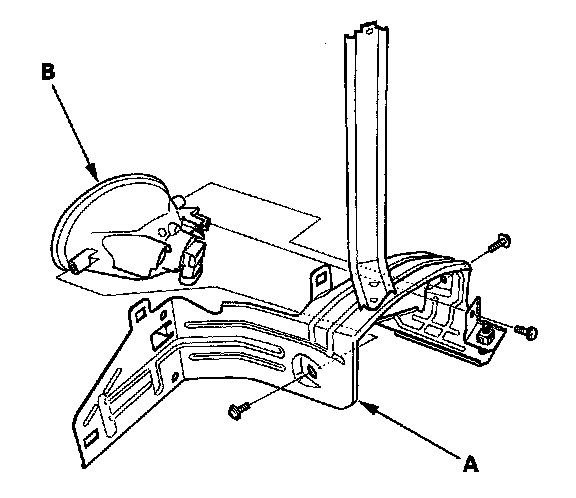

3. Remove the two screws, and separate the bracket (A) and fog light (B).






4. Install the light in the reverse order of removal.
5. After replacement, adjust the fog lights at local requirements.
