Fog/Driving Lamp Bulb: Service and Repair

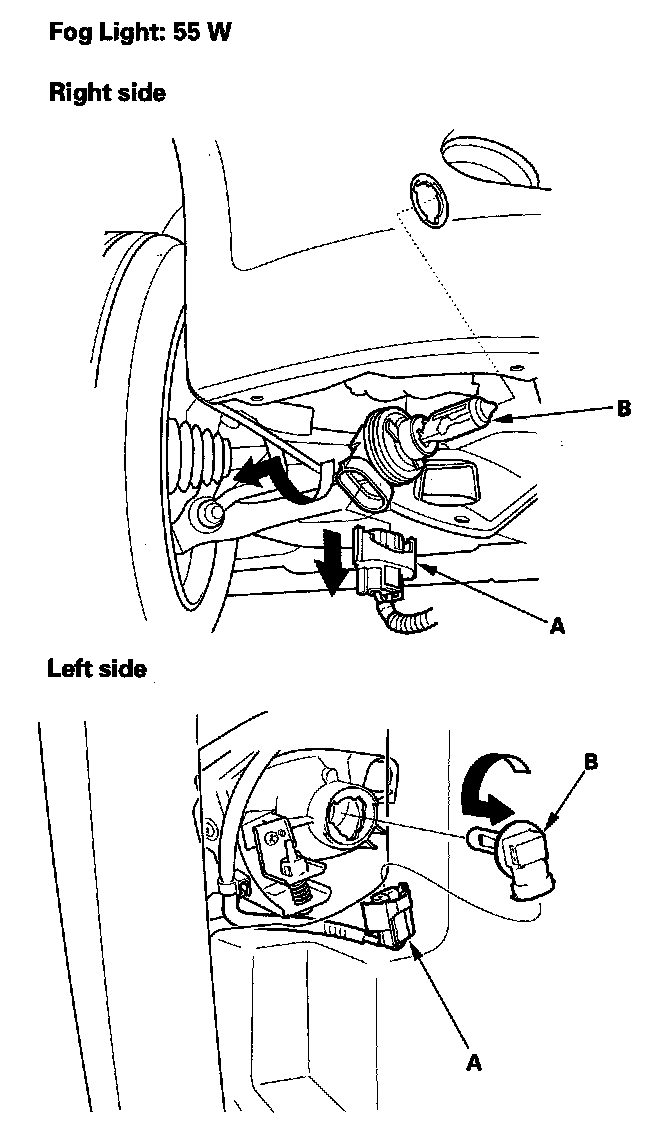

Fog Light Bulb Replacement

1. For right side, remove the splash shield. For left side, remove the inner fender.
2. Disconnect the 2P connector (A) from the fog light (B).






3. Turn the bulb socket 45 ° counterclockwise to remove it from the housing.
4. Install a new bulb in the reverse order of removal.
