Driver's Dashboard Undercover Removal/Installation

Driver's Dashboard Undercover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the Honda Tool and Equipment Program

NOTE:
- Take care not to scratch the dashboard and its related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

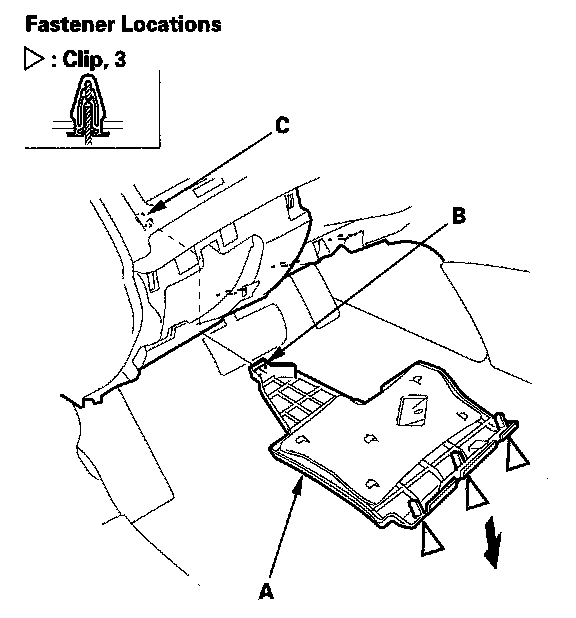

1. Remove the driver's dashboard undercover (A).
1. Gently pull down the rear edge to detach the clips.
2. Pull the undercover away to release its holder (B) from the pin (C).






2. Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
- Make sure the holder of the undercover is installed securely to the pin.
