Knock Sensor Sub-Harness (V6: M/T)
Knock Sensor Sub-Harness (V6: M/T)

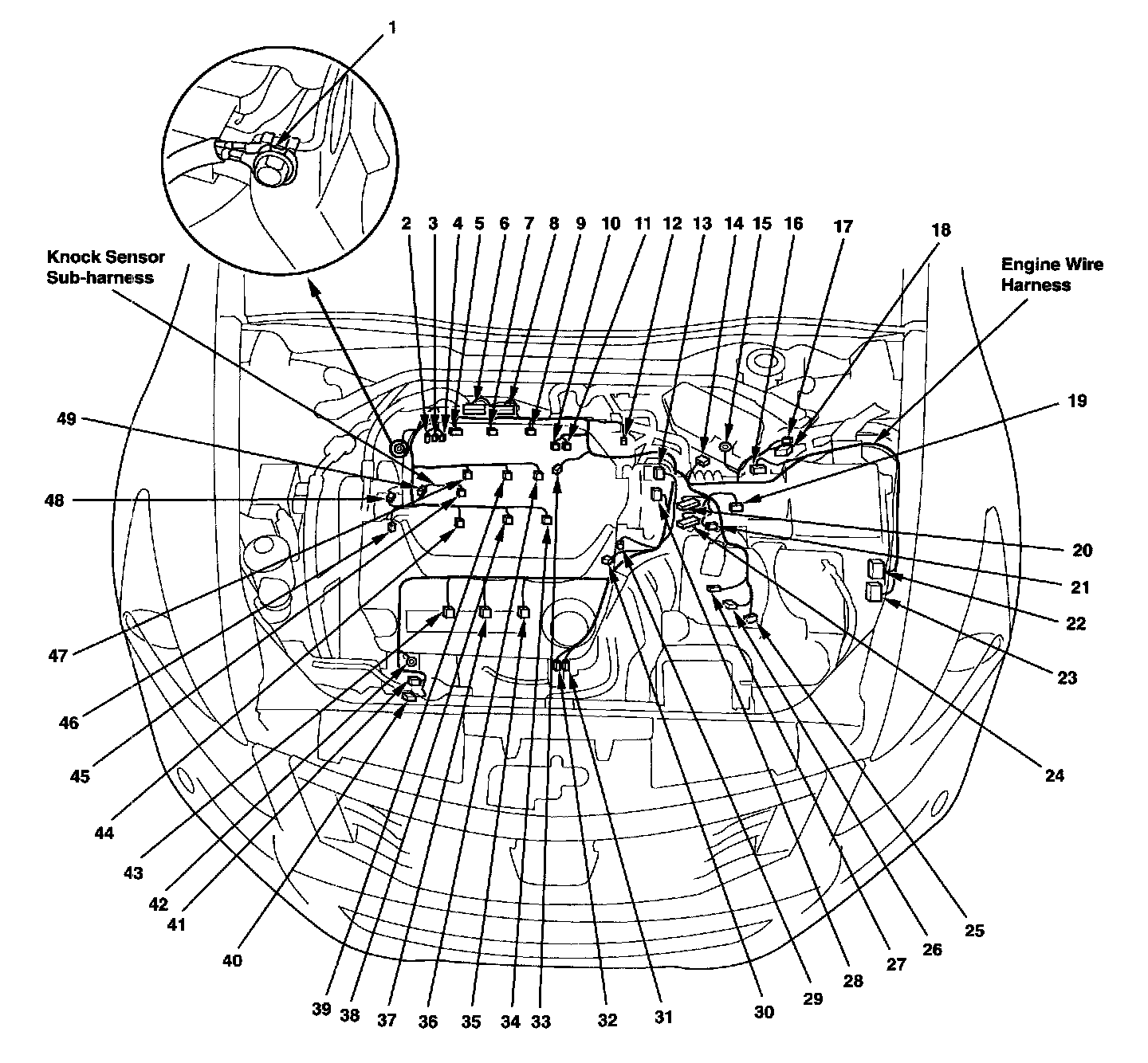

Harness Location View:

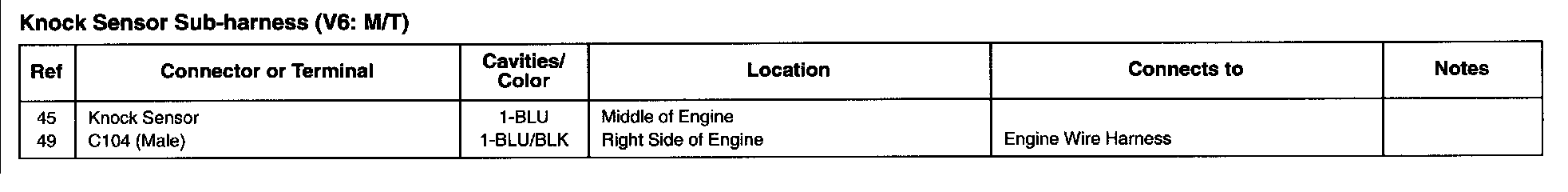

Knock Sensor Sub-harness (V6: M/T):
