Radio, Stereo, and Compact Disc
>>
Speaker
Speaker

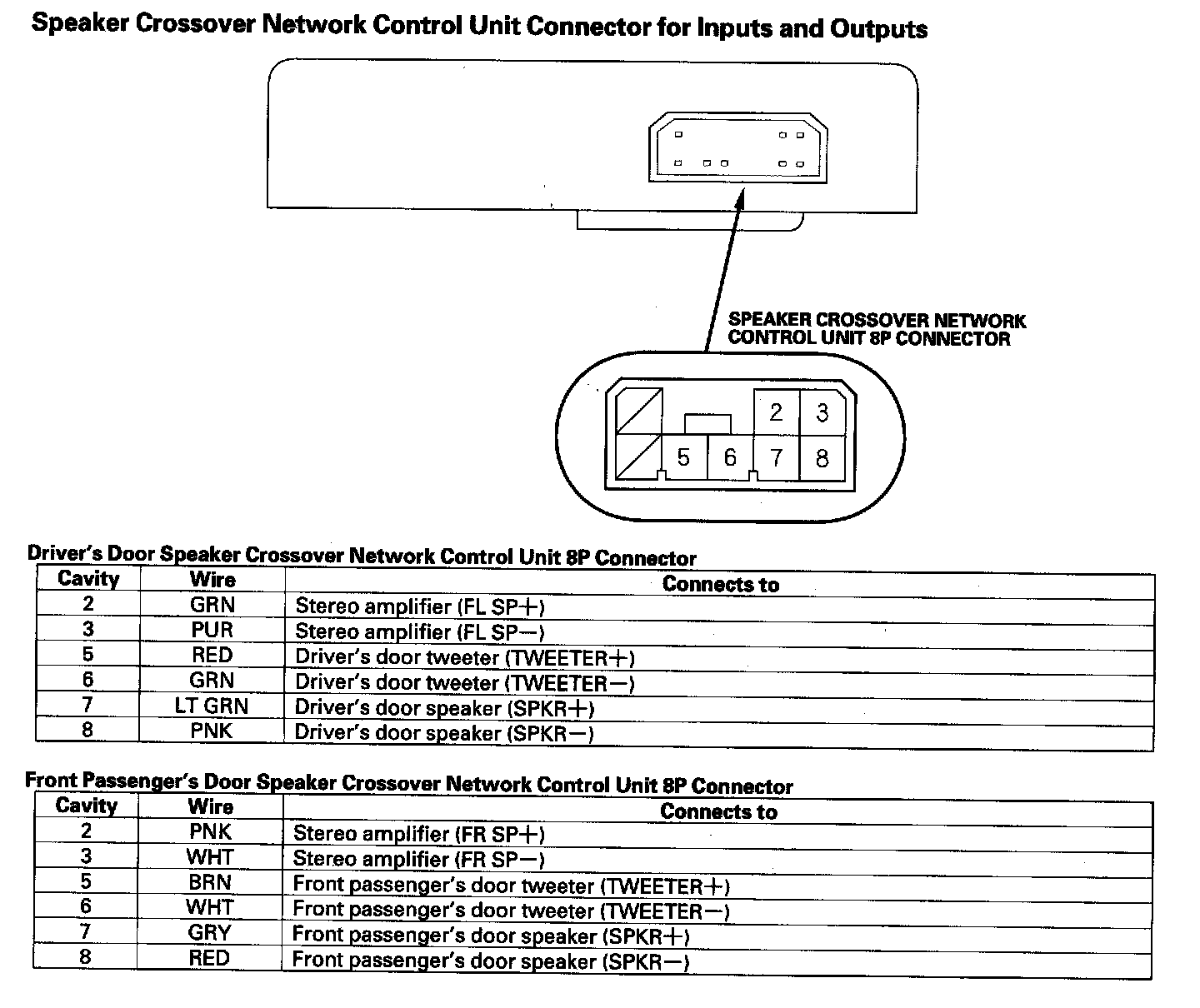

Speaker Crossover Network Control Unit Connector For Inputs And Outputs:
