Motor Test

Motor Test

Front Passenger's Seat

1. Remove the front passenger's seat.
2. Remove the power seat adjustment switch knobs and the recline cover from the seat.

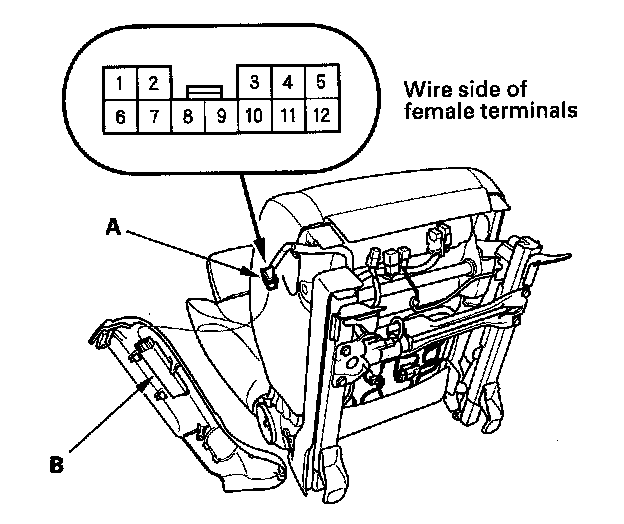

3. Disconnect the 12P connector (A) from the power seat adjustment switch (B).

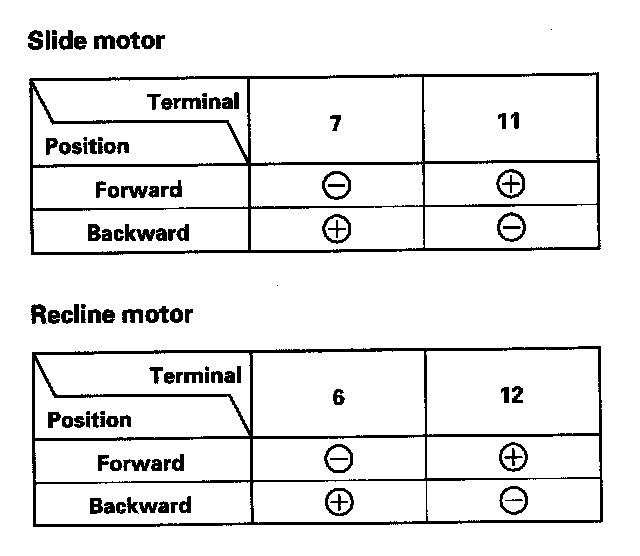

4. At the 12P connector of the front passenger's seat wire harness side, test the motor by applying battery power and ground to the terminals according to the table.






5. If the motor does not run or fails to run smoothly, go to step 6.
6. Disconnect the 2P connector from each motor.

NOTE: For recline motor, remove the seat-back cover.






7. Check for continuity between the each motor 2P connector and the driver's seat wire harness 12P connector. If there is continuity, replace the appropriate motor.

NOTE: The front and rear up-down motors are part of the up-down adjuster.
