Global Positioning System Antenna: Service and Repair

GPS Antenna Removal/Installation

1. Remove the rear shelf.

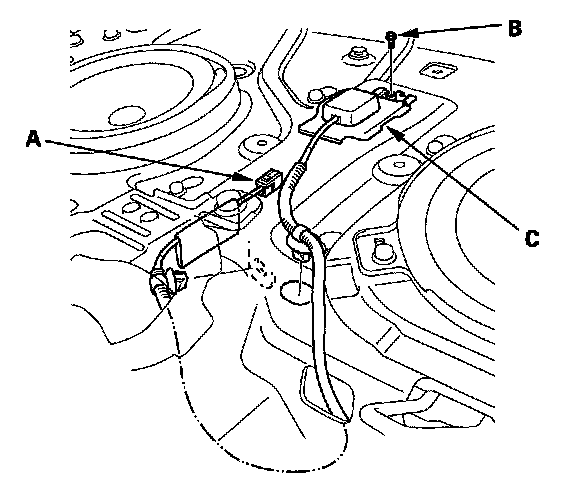

2. Disconnect the GPS antenna connector (A), and remove the bolt (B).






3. Remove the GPS antenna (C).
4. Install the antenna in the reverse order of removal.
