Garage Door Opener Transmitter: Service and Repair

HomeLink Unit Replacement

1. Turn the map light switch OFF, and remove the map light.

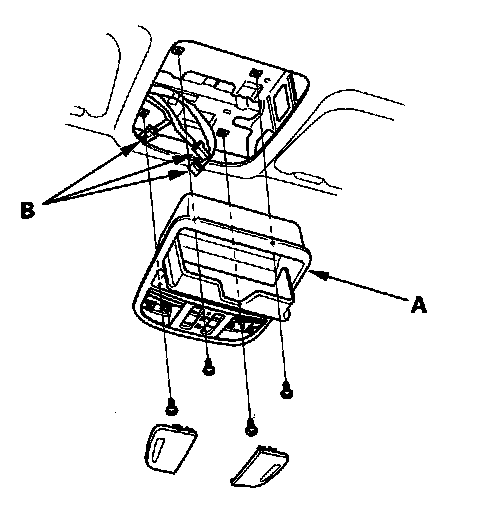

2. Remove the screws and roof console (A), then disconnect the connectors (B).

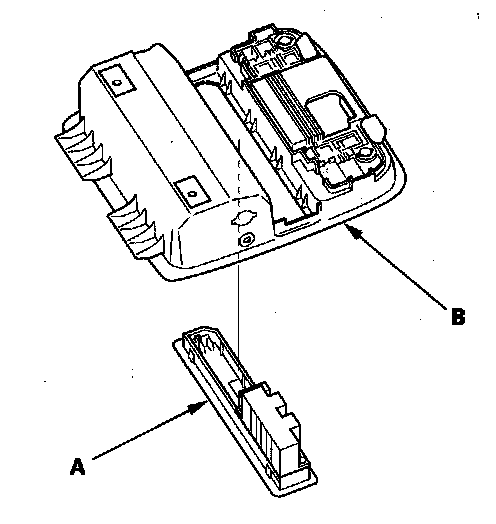

3. Remove the HomeLink unit (A) from the roof console (B).






4. Install the parts in the reverse order of removal.
