Dynamic Damper Replacement

Dynamic Damper Replacement

1. Remove the inboard joint.
2. Remove the dynamic damper band.
3. Remove the dynamic damper.

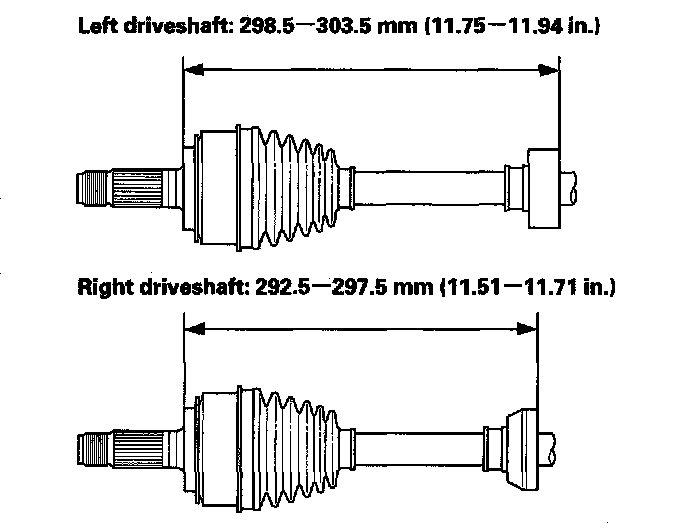

4. Install the new dynamic damper and adjust the position of the new dynamic damper to these measurements.

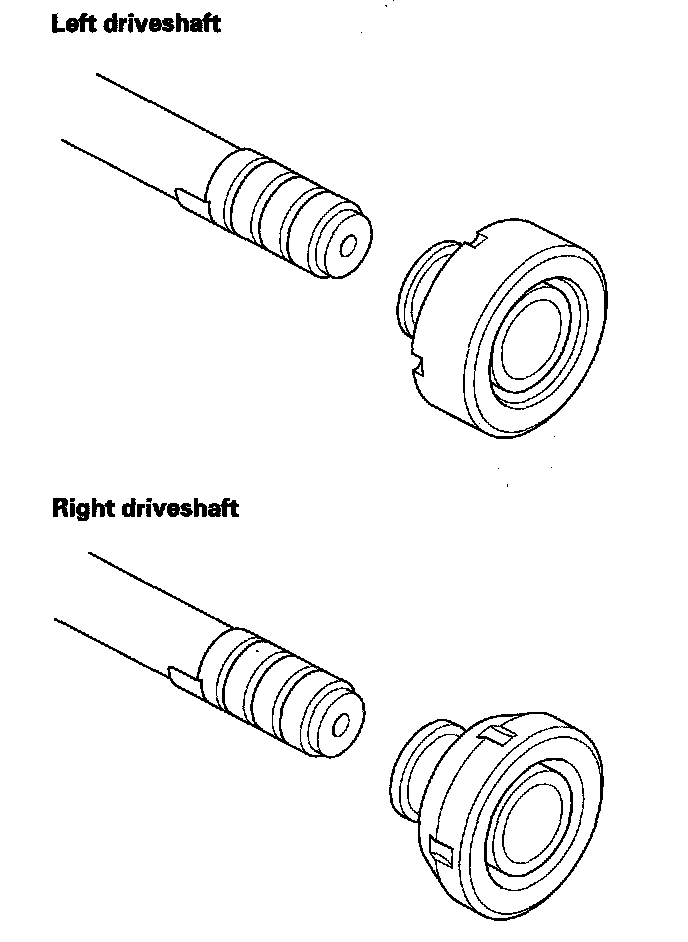

NOTE: Be careful not to swap the dynamic dampers. The right and left dynamic dampers are different.





5. Install the dynamic damper band.
6. Install the inboard joint.
