Clutch Pedal Assembly: Service and Repair

Clutch Pedal Assembly Replacement

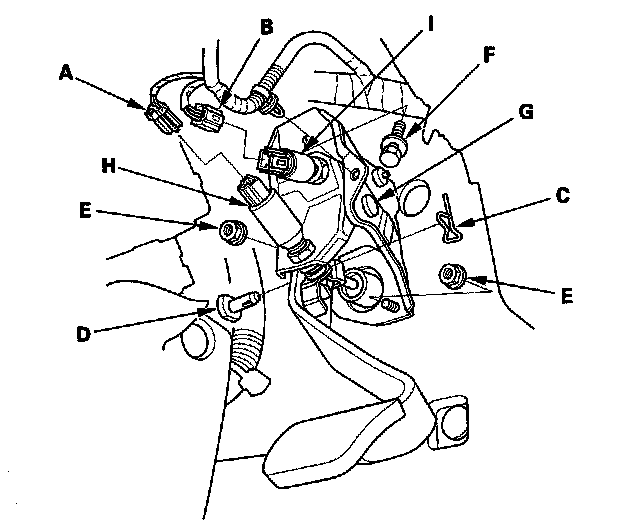

1. Disconnect the clutch pedal position switch connector (A) and clutch interlock switch connector (B).





2. Pry out the lock pin (C), and pull the pedal pin (D) out of the yoke.
3. Remove the master cylinder mounting nuts (E) and clutch pedal mounting bolt (F).
4. Remove the clutch pedal assembly (G).
5. Remove the clutch pedal position switch (H) and clutch interlock switch (I).

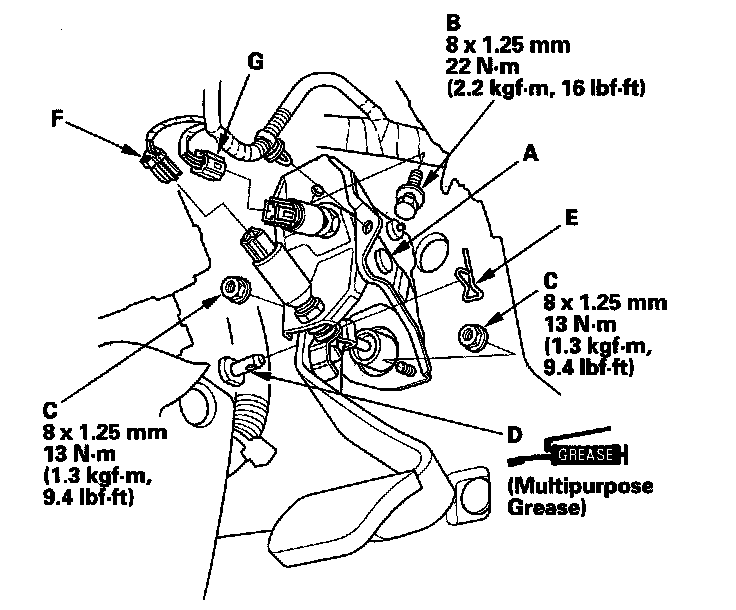

6. Install the clutch pedal position switch (A) and clutch interlock switch (B).





7. Install the clutch pedal assembly (A).





8. Install the clutch pedal mounting bolt (B) and master cylinder mounting nuts (C).
9. Apply grease to the pedal pin (D), and slide it into the yoke, then install a lock pin (E).
10. Connect the clutch pedal position switch connector (F) and clutch interlock switch connector (G).
11. Adjust the clutch pedal, clutch pedal position switch, and clutch interlock switch.
12. Check the clutch operation.
