Clutch Hydraulic System: Service and Repair
Clutch Hydraulic System BleedingNOTE:
^ Do not reuse the drained fluid. Always use Honda DOT 3 Brake Fluid from an unopened container. Using a non-Honda brake fluid can cause corrosion and shorten the life of the system.
^ Make sure the brake fluid is not contaminated with dirt or other foreign matter.
^ Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately with water.
^ If may be necessary to limit the movement of the release fork with a block of wood to remove all the air from the system.
^ Use fender covers to avoid damaging painted, surfaces.
1. Do the battery removal procedure.

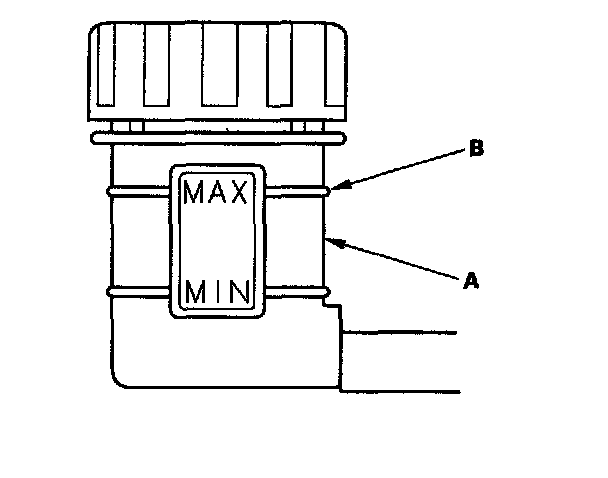

2. Make sure the brake fluid level in the clutch reservoir (A) is at the MAX (upper) level line (B).

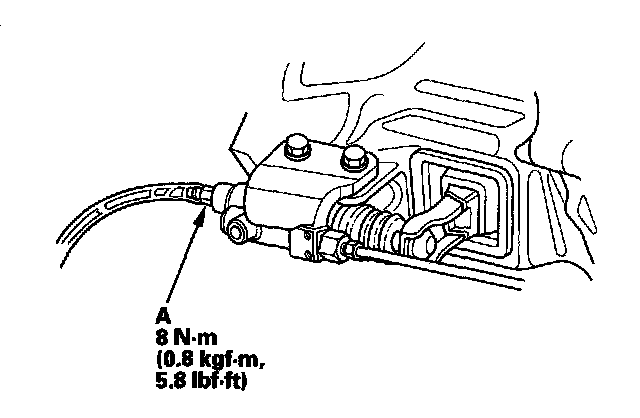

3. Attach the one end of a clear tube to the bleeder screw (A), and put the other end into a container of brake fluid. Loosen the bleeder screw to allow air to escape from the system.
4. Make sure there is an adequate supply of fluid in the reservoir, then slowly pump the clutch pedal until no more bubbles appear at the clear tube.
5. Tighten the bleeder screw securely.
6. Refill the brake fluid in the reservoir to the MAX (upper) level line.
7. Do the battery installation procedure.
