Air Bag Deactivation Indicator: Service and Repair

Passenger's Airbag Cutoff Indicator Replacement

1. With navigation: Remove the dashboard center vent.
2. Without navigation: Remove the audio unit.

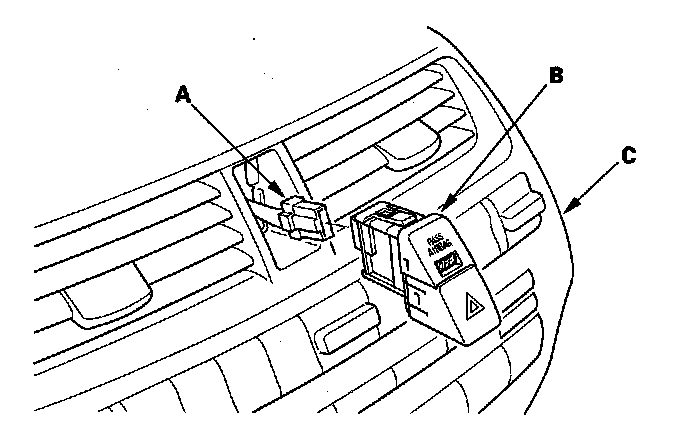

3. Disconnect the 6P connector (A) from the passenger's airbag cutoff indicator (B).






4. Push out the passenger's airbag cutoff indicator from behind the dashboard center vent/audio unit (C).
5. Reinstall the parts in the reverse order of removal.
