Left Engine Compartment Wire Harness (Dash Branch)

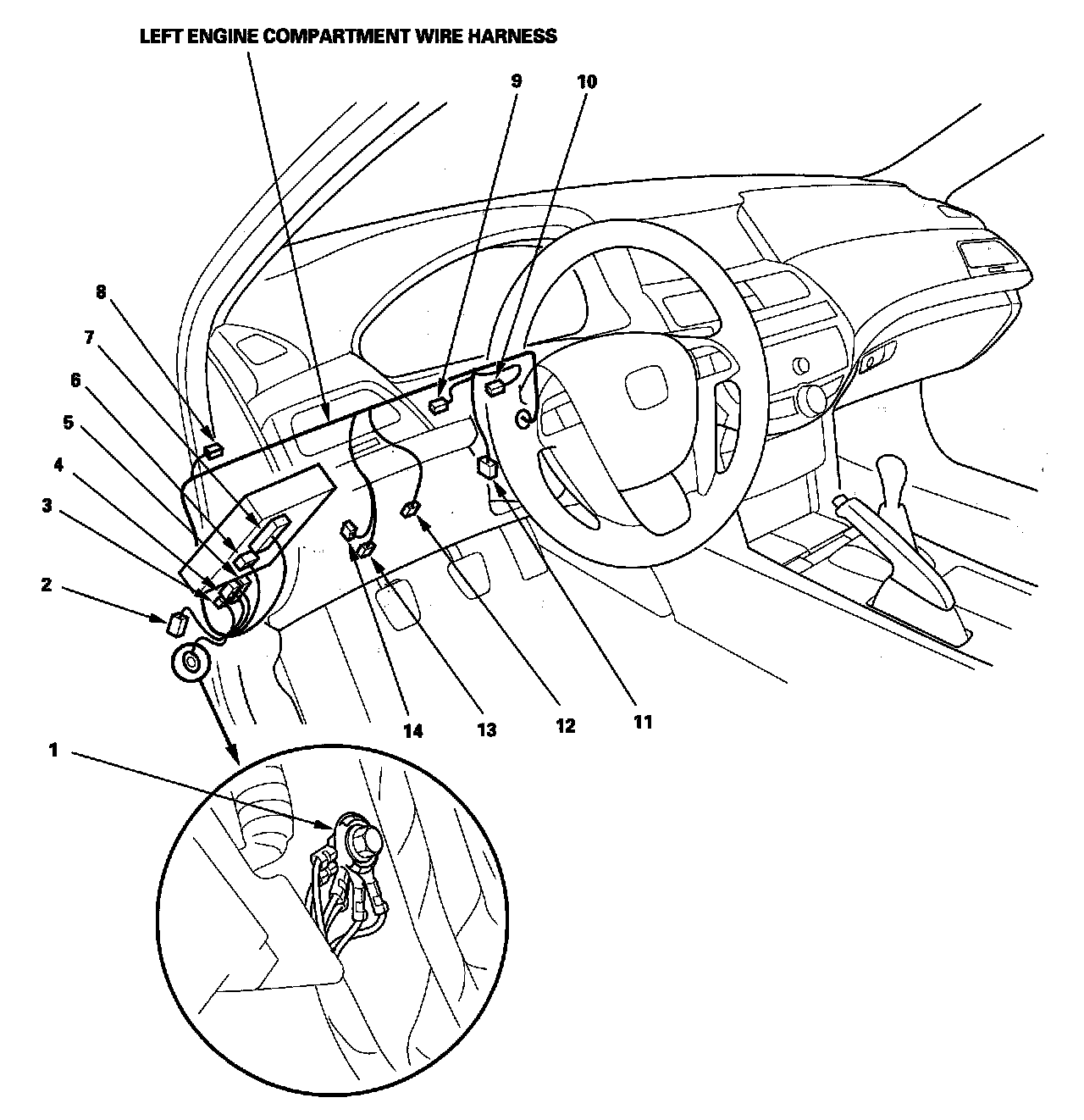

Harness Location View:

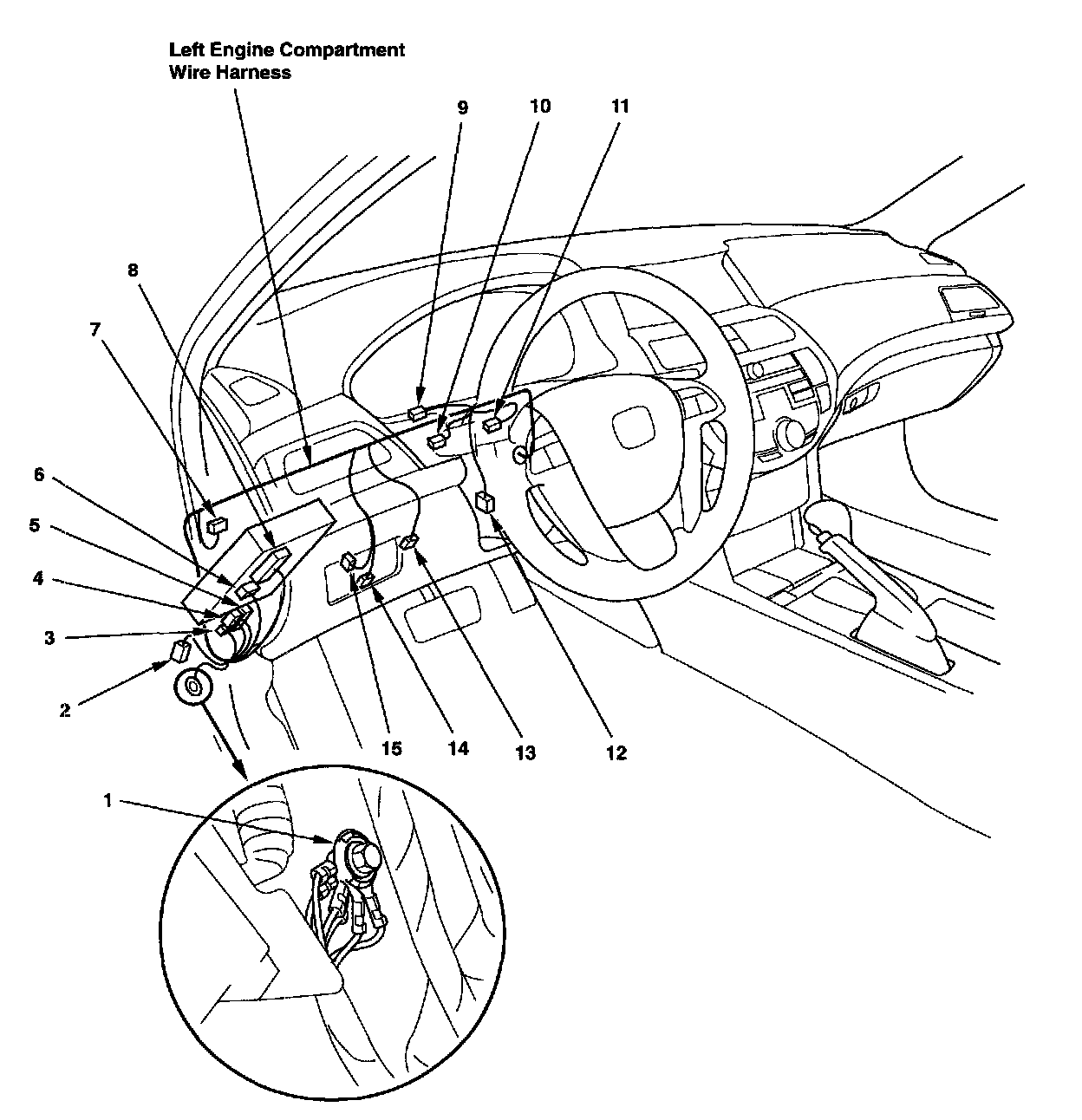

Harness Location View:

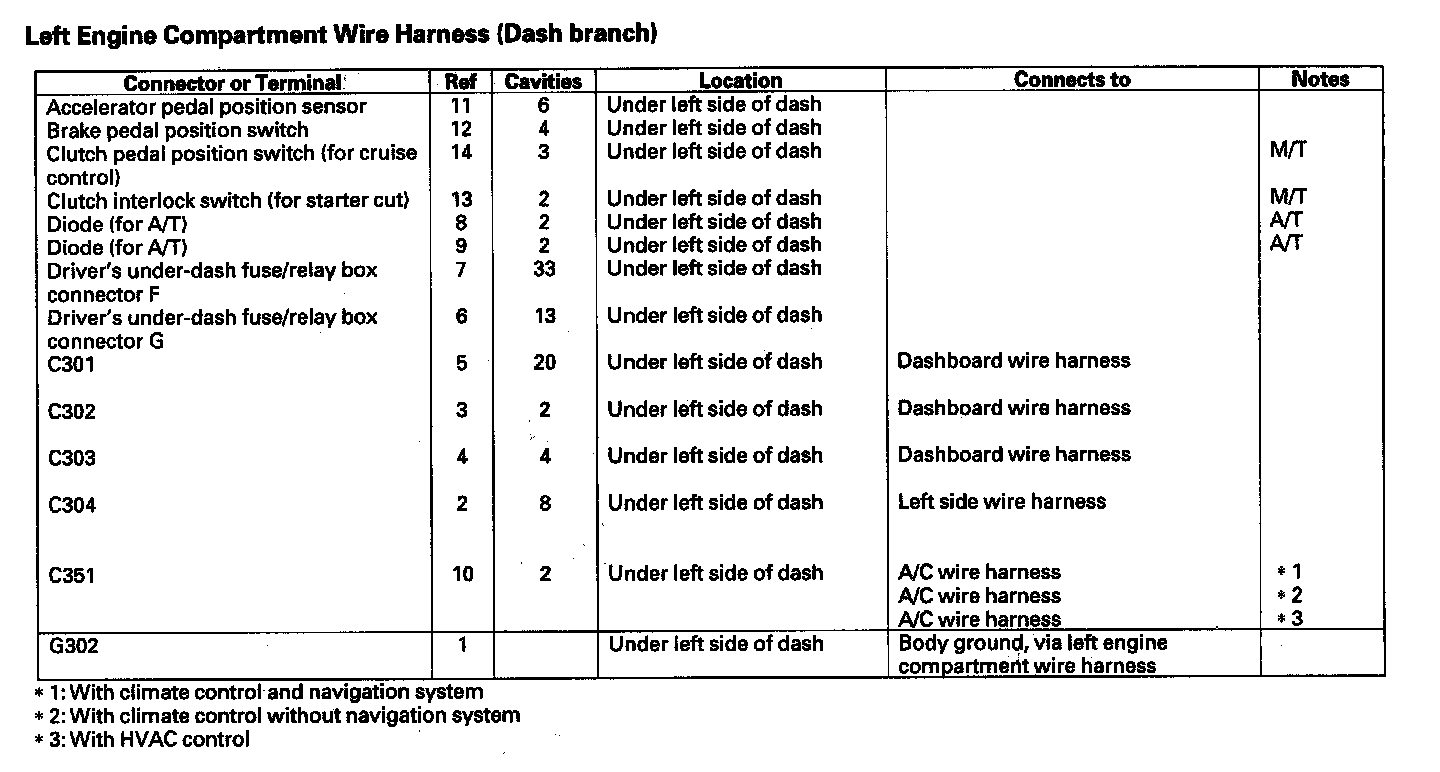

Left Engine Compartment Wire Harness (Dash Branch):

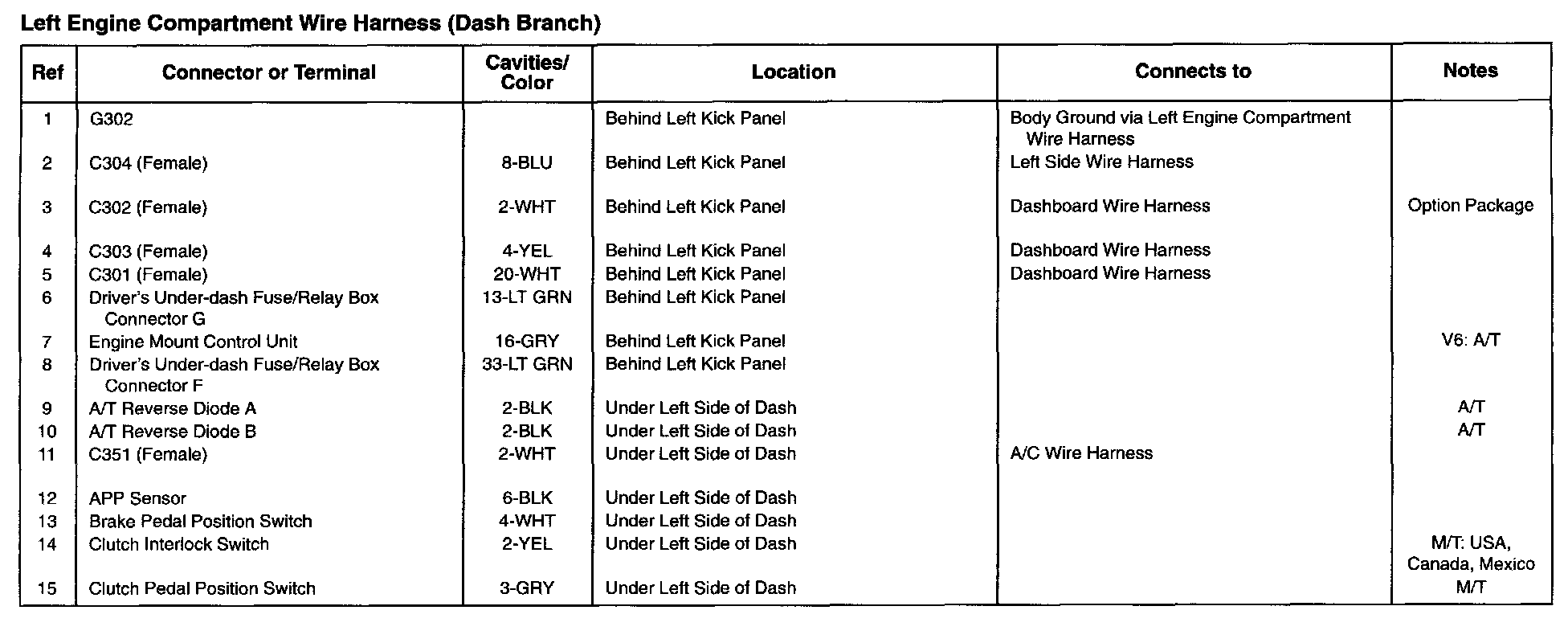

Left Engine Compartment Wire Harness (Dash Branch):
